onsemiDatasheet (PDF)

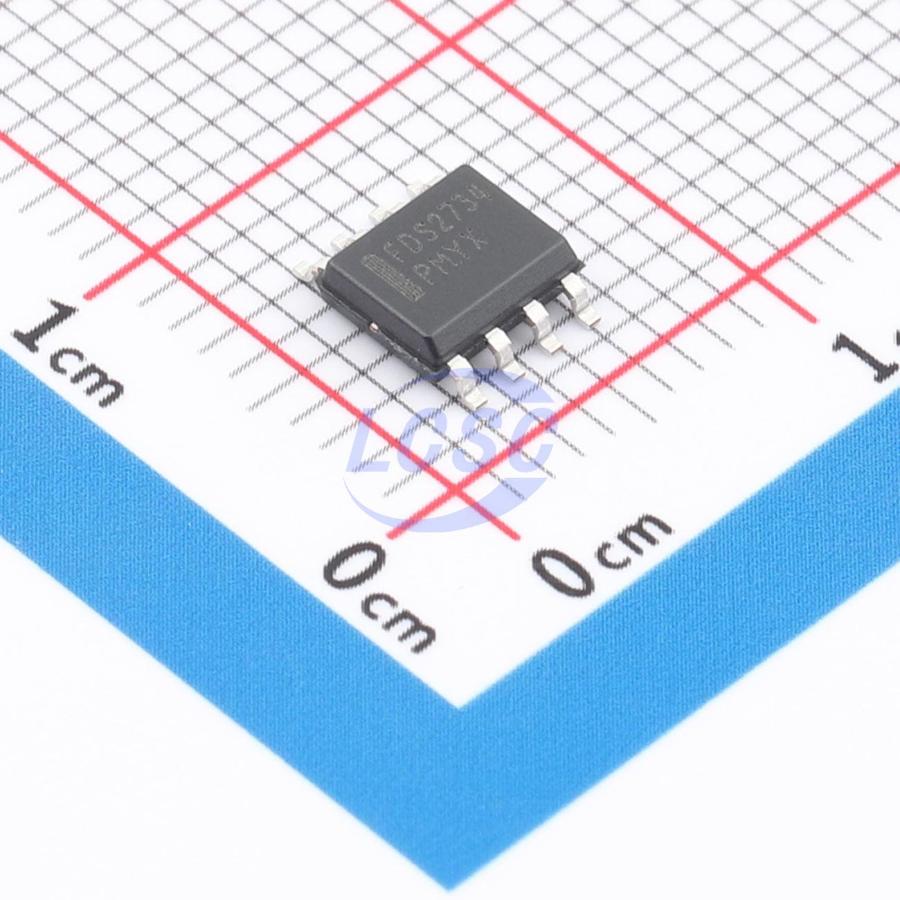

FDS2734
2.5W 250V 3A 97mΩ@10V 1 N-channel N-Channel SOP-8 Single FETs, MOSFETs RoHS
SOP-8ROHS3 CompliantActive
MOSFET N-CH 250V 3A SOP-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDS2734
- Store part #
- C606022
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
916 in stock
#C606022
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹278.45 | ₹278.45 |
| 10+ | ₹237.19 | ₹2,371.90 |
| 30+ | ₹211.56 | ₹6,346.80 |
| 100+ | ₹185.06 | ₹18,506.00 |
| 500+ | ₹173.33 | ₹86,665.00 |
| 1,000+ | ₹168.11 | ₹1,68,110.00 |
1 × ₹278.45
₹278.45
excl. GST
₹328.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDS2734
₹278.45 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 85pF
- Ciss-Input Capacitance
- 2.61nF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 250V
- Current - Continuous Drain(Id)
- 3A
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 97mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 45nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
This single N-channel MOSFET is fabricated using an advanced UltraFET trench process, specifically designed to minimize on-resistance while maintaining superior switching performance.
Applications
- DC-DC Conversion
Key features
- Maximum rDS(on) = 117 mΩ at VGS = 10 V, ID = 3.0 A
- Maximum rDS(on) = 126 mΩ at VGS = 6 V, ID = 2.8 A
- Fast switching speed
- High-performance trench technology for ultra-low rDS(on)
- High power and large current handling capability
- RoHS compliant
