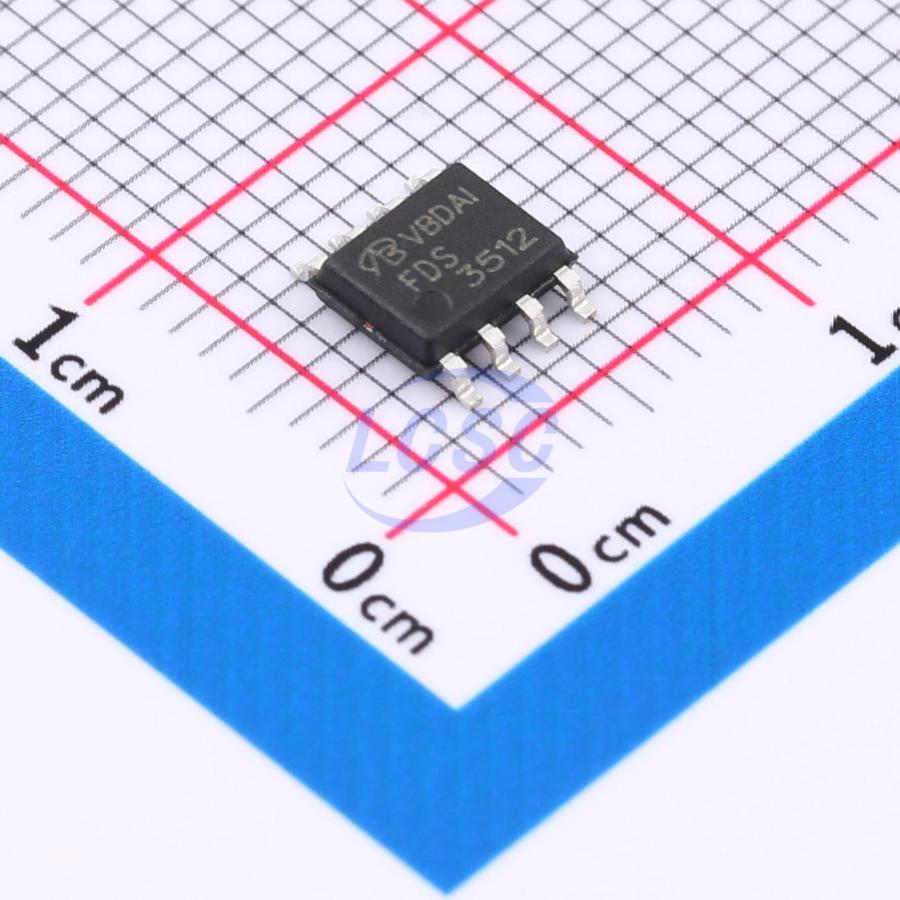

FDS3512-NL-VB
N-Channel 100V 9A 14W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 100V 9A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDS3512-NL-VB
- Store part #
- C29779291
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C29779291
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.62 | ₹75.62 |
| 10+ | ₹60.92 | ₹609.20 |
| 30+ | ₹53.57 | ₹1,607.10 |
| 100+ | ₹46.21 | ₹4,621.00 |
| 500+ | ₹41.81 | ₹20,905.00 |
| 1,000+ | ₹39.49 | ₹39,490.00 |
1 × ₹75.62
₹75.62
excl. GST
₹89.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FDS3512-NL-VB
₹75.62 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 150pF
- Current - Continuous Drain(Id)
- 9A
- Ciss-Input Capacitance
- 1.9nF
- Pd - Power Dissipation
- 14W
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 32mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 43nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
Applications
- Primary-side switch
- N-channel MOSFET
Key features
- Meets halogen-free requirements as defined by IEC 61249-2-21
- Ultra-low Qgd for reduced switching losses
- 100% Rg tested
- 100% avalanche tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | APM8005KC-TRG-VB#C29779265VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹75.62 · 20 in stock | View |
 | FDS3590-NL-VB#C18212520VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹90.35 · 10 in stock | View |
 | IRF7452TRPBF-VB#C19190242VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 278 | ₹83.45 · 278 in stock | View |
 | IRF7452QTRPBF-VB#C19626755VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 40 | ₹78.56 · 40 in stock | View |
 | SI4486EY-T1-E3-VB#C19626764VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 4 | ₹78.56 · 4 in stock | View |
