JSMSEMIDatasheet (PDF)

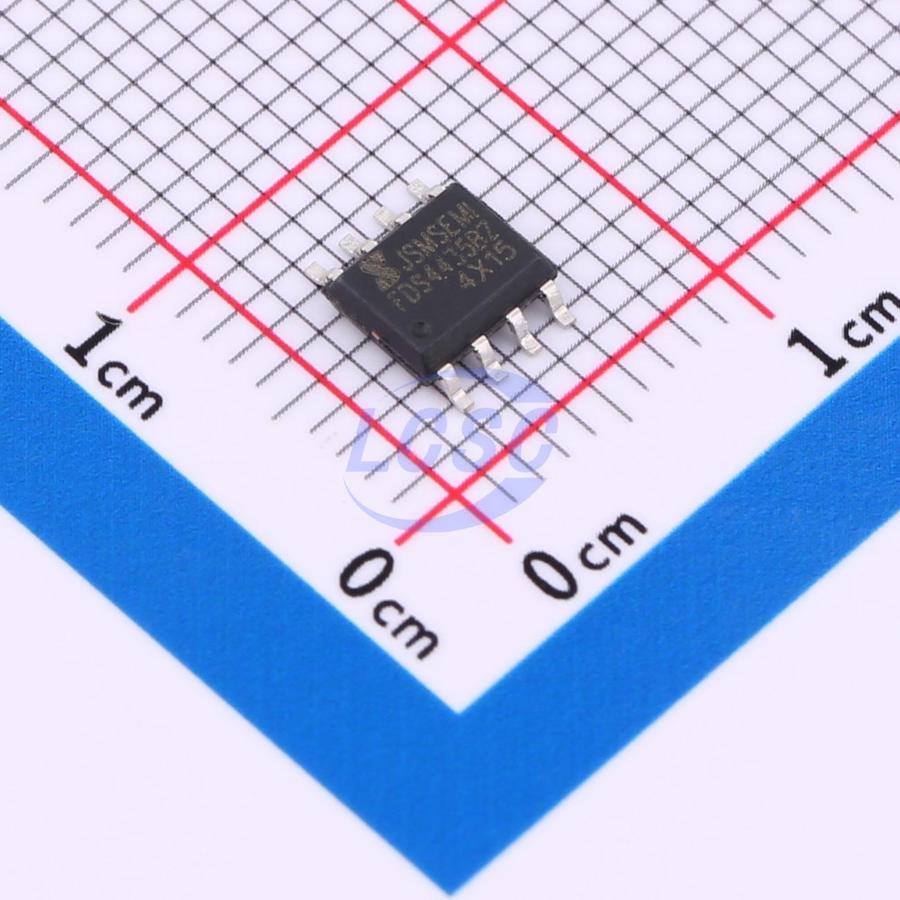

FDS4435BZ-JSM
P-Channel 30V 9.7A 3W Surface Mount SOP-8
SOP-8ROHS CompliantActive
MOSFET P-CH 30V 9.7A SOP-8
- Manufacturer
- JSMSEMI
- Manufacturer part #
- FDS4435BZ-JSM
- Store part #
- C18190707
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,170 in stock
#C18190707
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.37 | ₹101.85 |
| 50+ | ₹15.92 | ₹796.00 |
| 150+ | ₹14.01 | ₹2,101.50 |
| 500+ | ₹11.62 | ₹5,810.00 |
| 3,000+ | ₹10.82 | ₹32,460.00 |
| 6,000+ | ₹10.19 | ₹61,140.00 |
5 × ₹20.37
₹101.85
excl. GST
₹120.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDS4435BZ-JSM
₹101.85 for 5 + GST
Specifications
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 9.7A
- Ciss-Input Capacitance
- 1.9nF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 295pF
- RDS(on)
- 35mΩ@4.5V
- Number
- 1 P-Channel
- Gate Threshold Voltage (Vgs(th))
- 2.7V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.188 g
Overview
The FDS4435BZ is the P-Channel logic enhancement mode power field effect transistor is produced using high cell density advanced trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application, notebook computer power management and other battery powered circuits where high-side switching
Applications
- High Frequency Point-of-Load Synchronous
- Newworking DC-DC Power System
- Load Switch
Key features
- -30V/-9.7A, RDS(ON)=19.5mΩ (typ.)@VGs=-10V
- -30V/-7.0A, RDs(on)=23.5mΩ (typ.)@VGs=-4.5V
- Super high design for extremely low Rps(ON)
- Exceptional on-resistance and Maximum DC current capability
- Full RoHS compliance
- SOP8 package design
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF7416TRPBF-JSM#C18190882JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 1,585 | ₹25.94 · 1,585 in stock | View |
 | IRF7240TRPBF-JSM#C18190856JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 2,466 | ₹33.83 · 2,466 in stock | View |
 | AO4435#C5182770JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 9,300 | ₹16.78 · 9,300 in stock | View |
 | JSM4435#C917091JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 8,290 | ₹14.46 · 8,290 in stock | View |
 | AO4409-JSM#C7529463JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 4,030 | ₹24.58 · 4,030 in stock | View |
