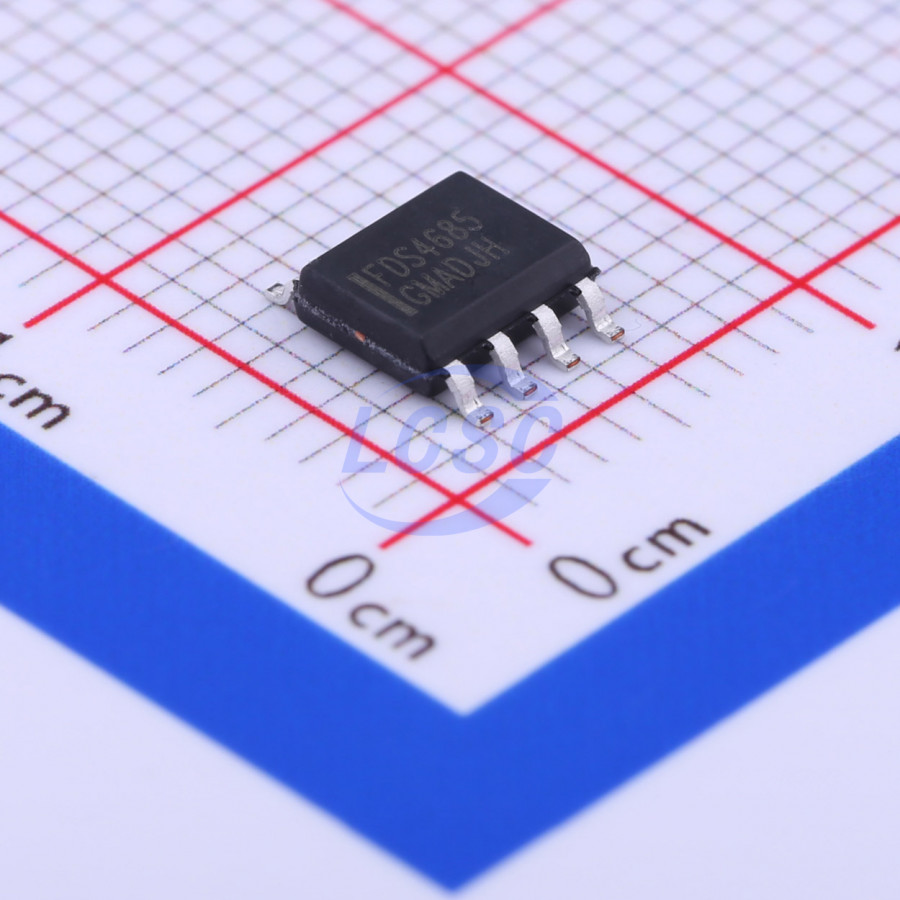

FDS4685
P-Channel 40V 8.2A 50W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET P-CH 40V 8.2A SO-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDS4685
- Store part #
- C336026
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
434 in stock
#C336026
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.80 | ₹90.80 |
| 10+ | ₹75.16 | ₹751.60 |
| 30+ | ₹67.34 | ₹2,020.20 |
| 100+ | ₹59.52 | ₹5,952.00 |
| 500+ | ₹54.96 | ₹27,480.00 |
| 1,000+ | ₹52.58 | ₹52,580.00 |
1 × ₹90.80
₹90.80
excl. GST
₹107.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDS4685
₹90.80 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 256pF
- Ciss-Input Capacitance
- 1.872nF
- Pd - Power Dissipation
- 50W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 8.2A
- Reverse Transfer Capacitance (Crss)
- 134pF
- RDS(on)
- 35mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 27nC@5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.21 g
Overview
This P-Channel MOSFET is a rugged gate version of advanced PowerTrench process. It has been optimized for power management applications requiring a wide range of gate drive voltage ratings (4.5V - 20V).
Applications
- Power management
- Load switch
- Battery protection
Key features
- –8.2 A, –40 V
- RDS(ON)=0.027 Ω @ VGS=-10 V
- RDS(ON)=0.035 Ω @ VGS=-4.5 V
- Fast switching speed
- High performance trench technology for extremely low RDS(ON)
- High power and current handling capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP40P18P8#C41355198Siliup · SOP-8L | Siliup | SOP-8L | 4,715 | ₹15.40 · 4,715 in stock | View |
 | DOS10P04#C46598088DOINGTER · SOP-8 | DOINGTER | SOP-8 | 1,910 | ₹19.16 · 1,910 in stock | View |
 | HSM4103#C700982HUASHUO · SOP-8 | HUASHUO | SOP-8 | 170 | ₹23.59 · 170 in stock | View |
| AP15P06S#C3024677A Power microelectronics · SOP-8L | A Power microelectronics | SOP-8L | On request | Price on request | Quote | |
| YFW12P06S#C55342621YFW · SOP-8 | YFW | SOP-8 | 2,990 | ₹52.70 · 2,990 in stock | View | |
