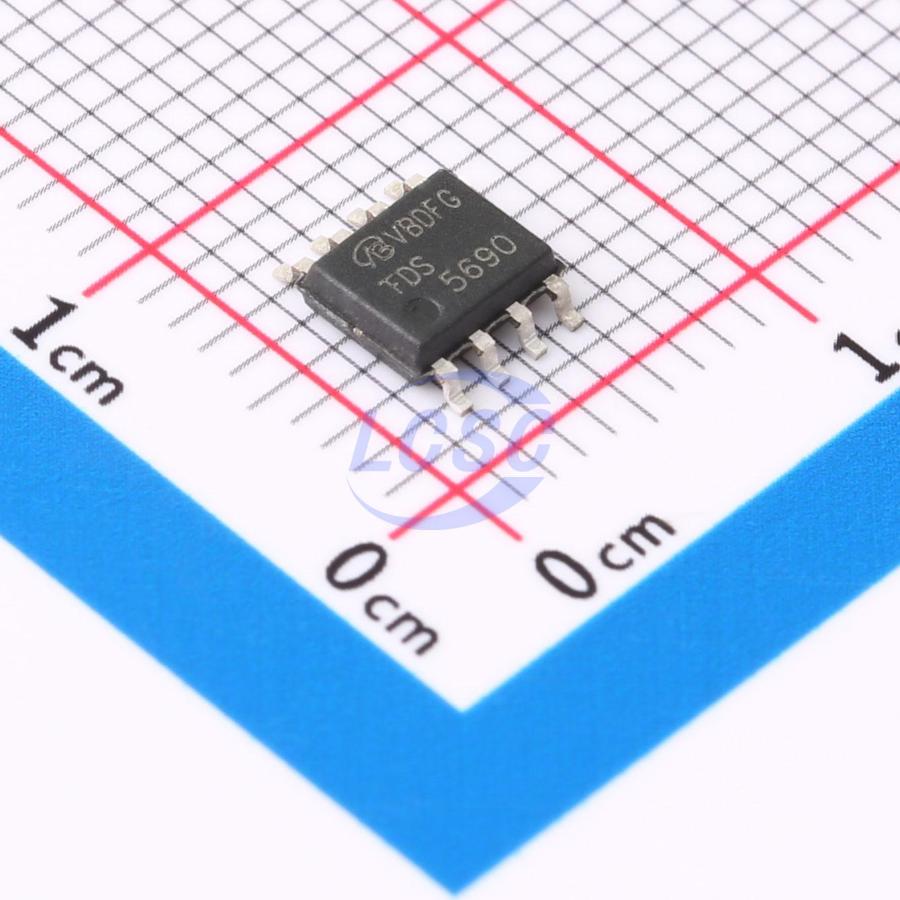

FDS5690-NL-VB
N-Channel 60V 7.6A Surface Mount SO-8
SO-8ROHS CompliantActive
MOSFET N-CH 60V 7.6A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDS5690-NL-VB
- Store part #
- C7568880
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7568880
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.67 | ₹59.67 |
| 10+ | ₹47.06 | ₹470.60 |
| 30+ | ₹41.81 | ₹1,254.30 |
| 100+ | ₹35.09 | ₹3,509.00 |
| 500+ | ₹30.68 | ₹15,340.00 |
| 1,000+ | ₹29.00 | ₹29,000.00 |
1 × ₹59.67
₹59.67
excl. GST
₹70.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FDS5690-NL-VB
₹59.67 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 7.6A
- Output Capacitance(Coss)
- 90pF
- Ciss-Input Capacitance
- 1.1nF
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 27mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 21nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.54V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
Overview
Applications
- Cold Cathode Fluorescent Lamp (CCFL) inverter
Key features
- Compliant with IEC 61249-2-21 halogen-free standard
- Trench power MOSFET
- Optimized for "low-side" synchronous rectifier operation
- 100% Rg and UIS tested
- Available in RoHS-compliant halogen-free package
