HXY MOSFETDatasheet (PDF)

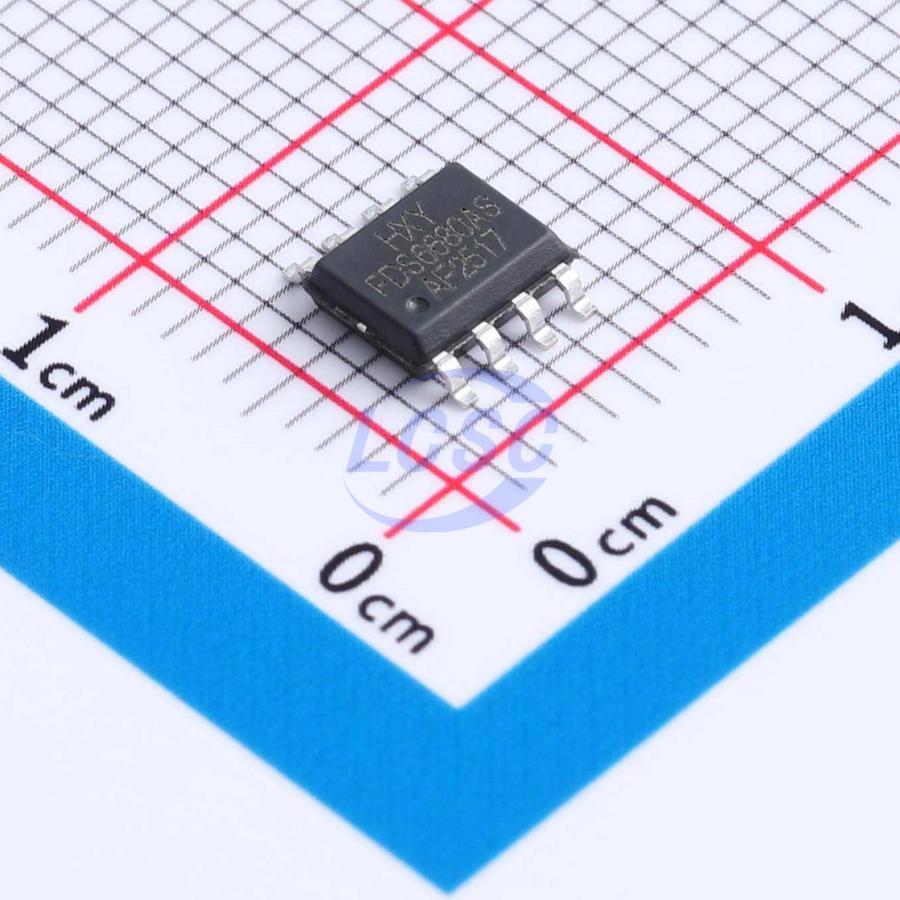

FDS6680AS-HXY
N-Channel 30V 15A 15W Surface Mount SOP-8
SOP-8RoHSActive
MOSFET N-CH 30V 15A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- FDS6680AS-HXY
- Store part #
- C22366890
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
220 in stock
#C22366890
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.48 | ₹152.40 |
| 50+ | ₹24.24 | ₹1,212.00 |
| 150+ | ₹21.56 | ₹3,234.00 |
| 500+ | ₹18.23 | ₹9,115.00 |
| 3,000+ | ₹16.75 | ₹50,250.00 |
| 6,000+ | ₹15.85 | ₹95,100.00 |
5 × ₹30.48
₹152.40
excl. GST
₹179.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDS6680AS-HXY
₹152.40 for 5 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 77pF
- Current - Continuous Drain(Id)
- 8.5A
- Ciss-Input Capacitance
- 583pF
- Pd - Power Dissipation
- 1.5W
- Reverse Transfer Capacitance (Crss)
- 59pF
- RDS(on)
- 14.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.114 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDS6680A-HXY#C22366507HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 190 | ₹23.01 · 190 in stock | View |
 | IRF7821PBF-HXY#C22366511HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 207 | ₹64.62 · 207 in stock | View |
 | IRF8721PBF-HXY#C22366513HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 145 | ₹43.21 · 145 in stock | View |
 | AO4406A-HXY#C22366786HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 250 | ₹15.73 · 250 in stock | View |
 | IRF7805PBF-HXY#C22366790HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 5 | ₹20.36 · 5 in stock | View |
