HXY MOSFETDatasheet (PDF)

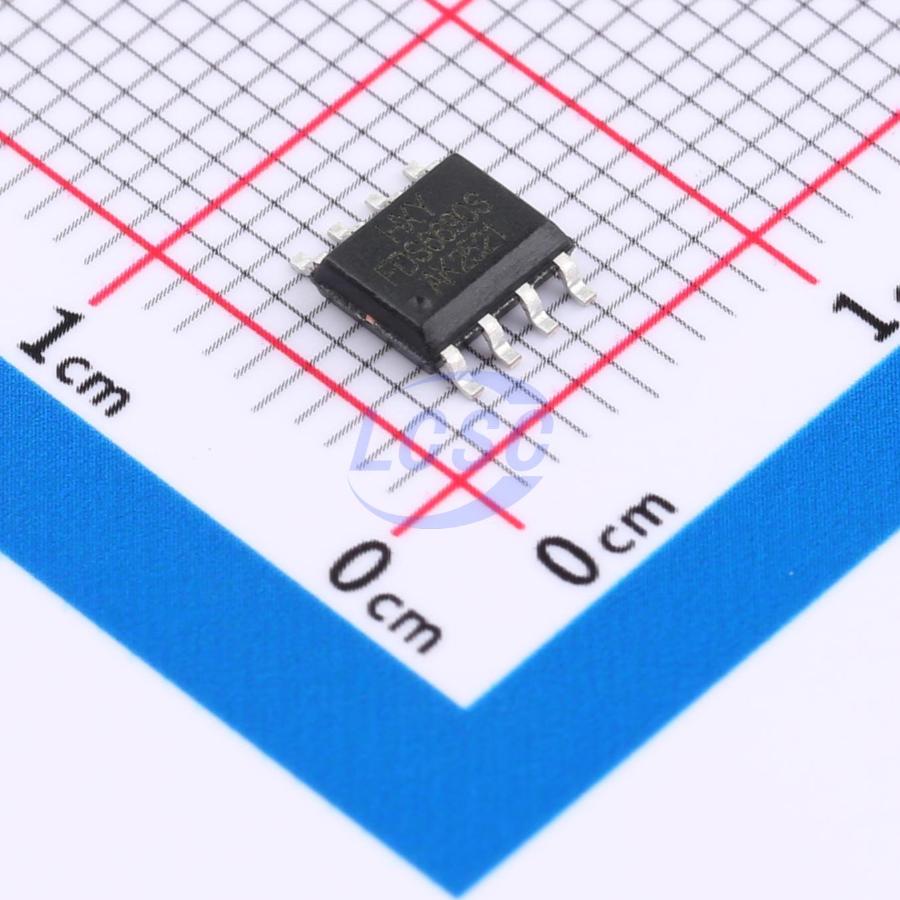

FDS6690S-HXY
30V 8.5A 1.5W 14mΩ@10V 1 N-channel N-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
MOSFET N-CH 30V 8.5A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- FDS6690S-HXY
- Store part #
- C49256508
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
180 in stock
#C49256508
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.61 | ₹273.05 |
| 50+ | ₹45.03 | ₹2,251.50 |
| 150+ | ₹40.93 | ₹6,139.50 |
| 500+ | ₹35.80 | ₹17,900.00 |
| 3,000+ | ₹30.10 | ₹90,300.00 |
| 6,000+ | ₹28.74 | ₹1,72,440.00 |
5 × ₹54.61
₹273.05
excl. GST
₹322.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDS6690S-HXY
₹273.05 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 77pF
- Current - Continuous Drain(Id)
- 8.5A
- Ciss-Input Capacitance
- 583pF
- Pd - Power Dissipation
- 1.5W
- Reverse Transfer Capacitance (Crss)
- 59pF
- RDS(on)
- 14mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.113 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF7807ZTRPBF-HXY#C20606234HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 85 | ₹29.21 · 85 in stock | View |
 | SI4800BDY-T1-GE3-HXY#C22366562HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 35 | ₹12.58 · 35 in stock | View |
 | AO4466-HXY#C22366563HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 30 | ₹9.43 · 30 in stock | View |
 | IRF7403PBF-HXY#C22366566HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 130 | ₹33.87 · 130 in stock | View |
 | IRF7807ZPBF-HXY#C22366568HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 250 | ₹27.21 · 250 in stock | View |
