MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VBsemi ElecDatasheet (PDF)

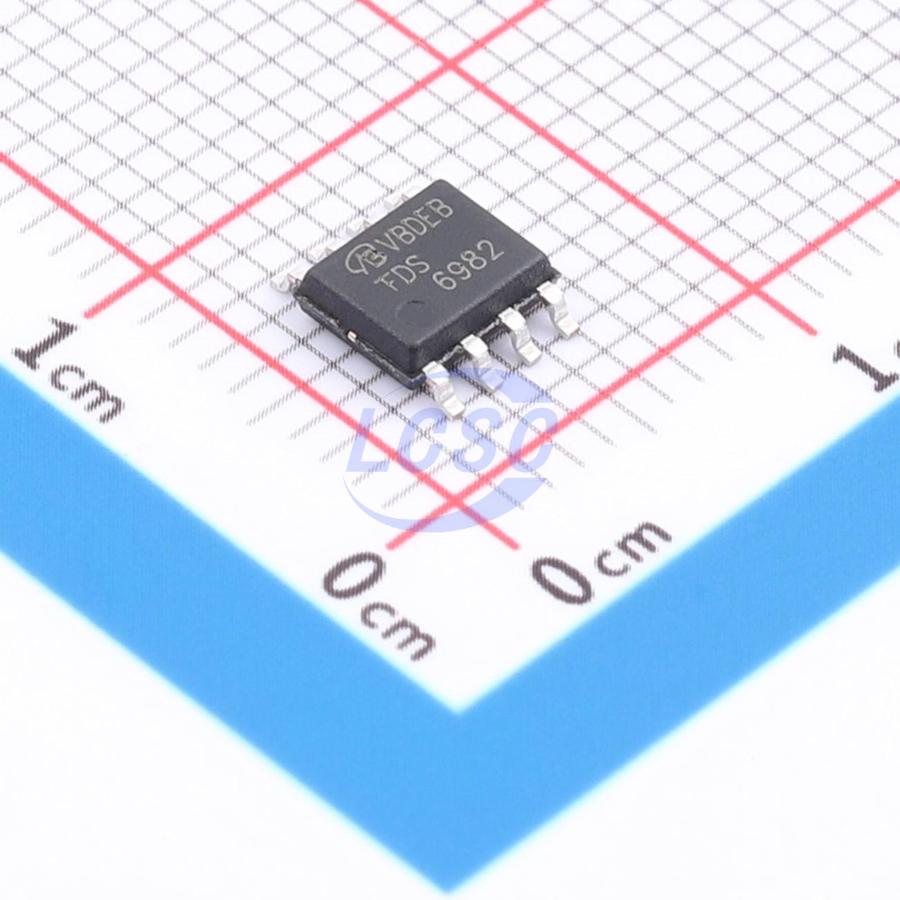

FDS6982-VB
3.1W 30V 8.5A 16mΩ@10V 2 N-Channel N-Channel SO-8 Single FETs, MOSFETs
SO-8RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDS6982-VB
- Store part #
- C52109973
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C52109973
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.34 | ₹58.34 |
| 10+ | ₹47.24 | ₹472.40 |
| 30+ | ₹42.24 | ₹1,267.20 |
| 100+ | ₹36.36 | ₹3,636.00 |
| 500+ | ₹29.83 | ₹14,915.00 |
| 1,000+ | ₹28.09 | ₹28,090.00 |
1 × ₹58.34
₹58.34
excl. GST
₹68.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FDS6982-VB
₹58.34 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 140pF
- Ciss-Input Capacitance
- 660pF
- Pd - Power Dissipation
- 3.1W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 8.5A
- Reverse Transfer Capacitance (Crss)
- 86pF
- RDS(on)
- 16mΩ@10V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 7.1nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.33 g
Overview
Applications
- Notebook system power supply
- Low-current DC/DC
Key features
- Trench power MOSFET
- 100% Rg tested
- 100% UIS tested
- RoHS compliant (Directive 2002/95/EC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDS6982S-VB#C52109972VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 5 | ₹58.78 · 5 in stock | View |
 | NTMD4884NFR2G-VB#C52110071VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹58.13 · 10 in stock | View |
| NTMSD6N303R2G-VB#C52110072VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹58.34 · 10 in stock | View | |
| NTMSD6N303R2SG-VB#C52110073VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹58.34 · 10 in stock | View | |
| SH8K15-VB#C52110094VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹58.34 · 10 in stock | View | |
