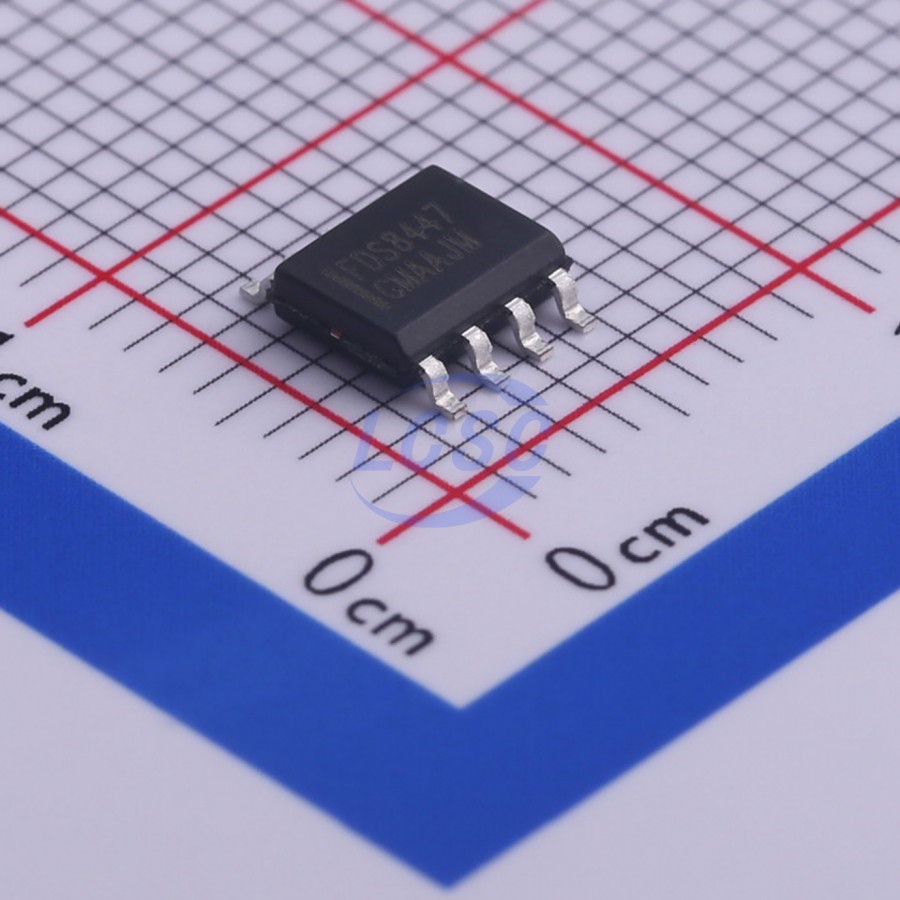

FDS8447
N-Channel 40V 12.8A 2.5W Surface Mount SO-8
SO-8ROHS3 CompliantDiscontinued
MOSFET N-CH 40V 12.8A SO-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDS8447
- Store part #
- C154555
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C154555
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹316.46 | ₹316.46 |
| 10+ | ₹278.40 | ₹2,784.00 |
| 30+ | ₹254.69 | ₹7,640.70 |
| 100+ | ₹230.33 | ₹23,033.00 |
| 500+ | ₹219.25 | ₹1,09,625.00 |
| 1,000+ | ₹214.46 | ₹2,14,460.00 |
1 × ₹316.46
₹316.46
excl. GST
₹373.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDS8447
₹316.46 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 350pF
- Ciss-Input Capacitance
- 2.6nF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 12.8A
- Reverse Transfer Capacitance (Crss)
- 250pF
- RDS(on)
- 10.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 49nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
This single N-Channel MOSFET is produced using advanced PowerTrench® process that has been especially tailored to minimize the on-state resistance and yet maintain superior switching performance.
Applications
- DC - DC conversion
Key features
- Max rDS(on) = 10.5mΩ at VGS = 10V, ID = 12.8A
- Max rDS(on) = 12.3mΩ at VGS = 4.5V, ID = 11.4A
- Low gate charge
- High performance trench technology for extremely low rDS(on)
- High power and current handling capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DOS12N04#C48542687DOINGTER · SOP-8 | DOINGTER | SOP-8 | 1,215 | ₹13.52 · 1,215 in stock | View |
 | LWN4011AS#C54221219Lewa Micro · SOP-8 | Lewa Micro | SOP-8 | 4,000 | ₹20.20 · 4,000 in stock | View |
 | HSM4006#C700991HUASHUO · SOP-8 | HUASHUO | SOP-8 | 1,125 | ₹27.04 · 1,125 in stock | View |
 | IRF7854TRPBF-TP#C53100642TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 2,926 | ₹104.21 · 2,926 in stock | View |
 | FDS86140-TP#C53100650TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 3,990 | ₹130.14 · 3,990 in stock | View |
