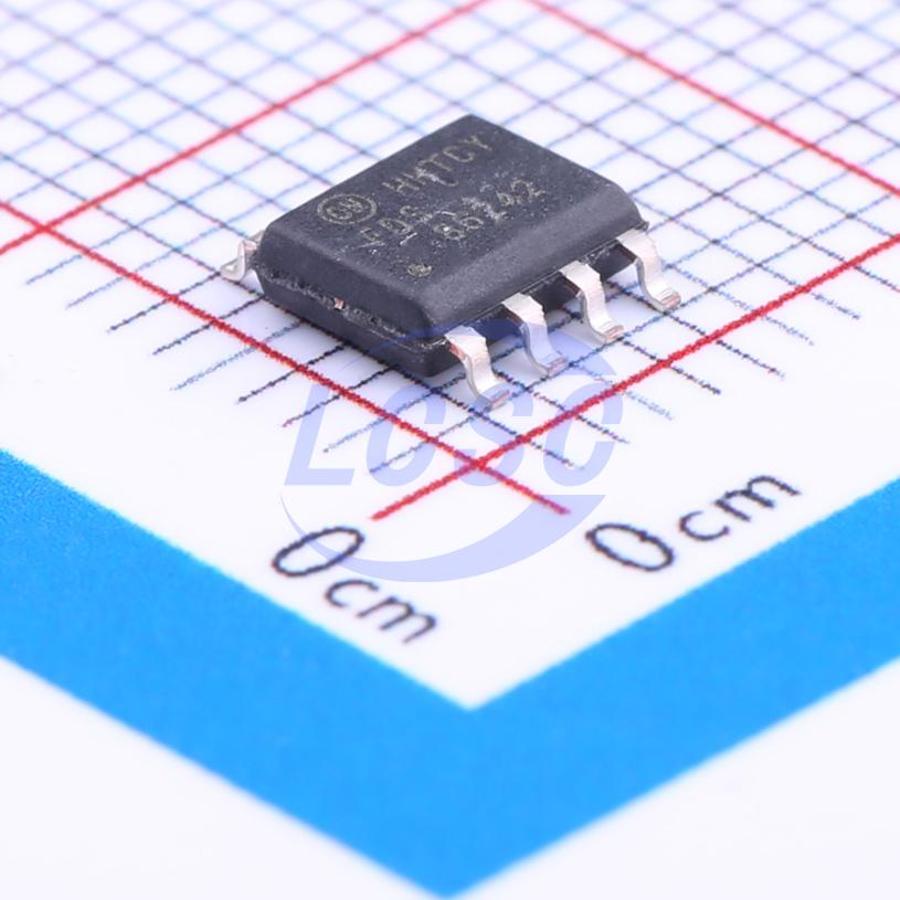

FDS86242
N-Channel 150V 4.1A 5W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET N-CH 150V 4.1A SO-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDS86242
- Store part #
- C113197
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
483 in stock
#C113197
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.50 | ₹58.50 |
| 10+ | ₹43.92 | ₹439.20 |
| 30+ | ₹37.84 | ₹1,135.20 |
| 100+ | ₹30.02 | ₹3,002.00 |
| 500+ | ₹26.54 | ₹13,270.00 |
| 1,000+ | ₹24.58 | ₹24,580.00 |
1 × ₹58.50
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDS86242
₹58.50 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 64pF
- Ciss-Input Capacitance
- 760pF
- Pd - Power Dissipation
- 5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 4.1A
- Reverse Transfer Capacitance (Crss)
- 85pF
- RDS(on)
- 98mΩ@6V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
This N-channel MOSFET is fabricated using onsemi's advanced Power Trench® process, optimized for on-resistance RDS(ON), switching performance, and ruggedness.
Applications
- DC-DC converters and off-line UPS
- Distributed power architectures and voltage regulator modules (VRMs)
- Main switches in 24V and 48V systems
- High-voltage synchronous rectifiers
Key features
- Maximum on-resistance RDS(ON) of 67 mΩ at VGS = 10 V, ID = 4.1 A
- Maximum on-resistance RDS(ON) of 98 mΩ at VGS = 6 V, ID = 3.3 A
- High-performance trench technology for ultra-low RDS(ON)
- High power and current handling capability in widely used surface mount packages
- 100% UIL tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCEP1505S#C503027NCE · SOP-8 | NCE | SOP-8 | 7,560 | ₹62.09 · 7,560 in stock | View |
 | SI4848ADY-T1-GE3#C727435VISHAY · SO-8 | VISHAY | SO-8 | 2,970 | ₹88.79 · 2,970 in stock | View |
 | SI4848BDY-T1-GE3#C20346101VISHAY · SOIC-8 | VISHAY | SOIC-8 | 20 | ₹88.98 · 20 in stock | View |
 | STS5N15F4#C2970383ST · SO-8 | ST | SO-8 | 20 | ₹284.45 · 20 in stock | View |
 | TPH1110FNH,L1Q#C5802572TOSHIBA · SOP-8 | TOSHIBA | SOP-8 | 47 | ₹749.32 · 47 in stock | View |
