onsemiDatasheet (PDF)

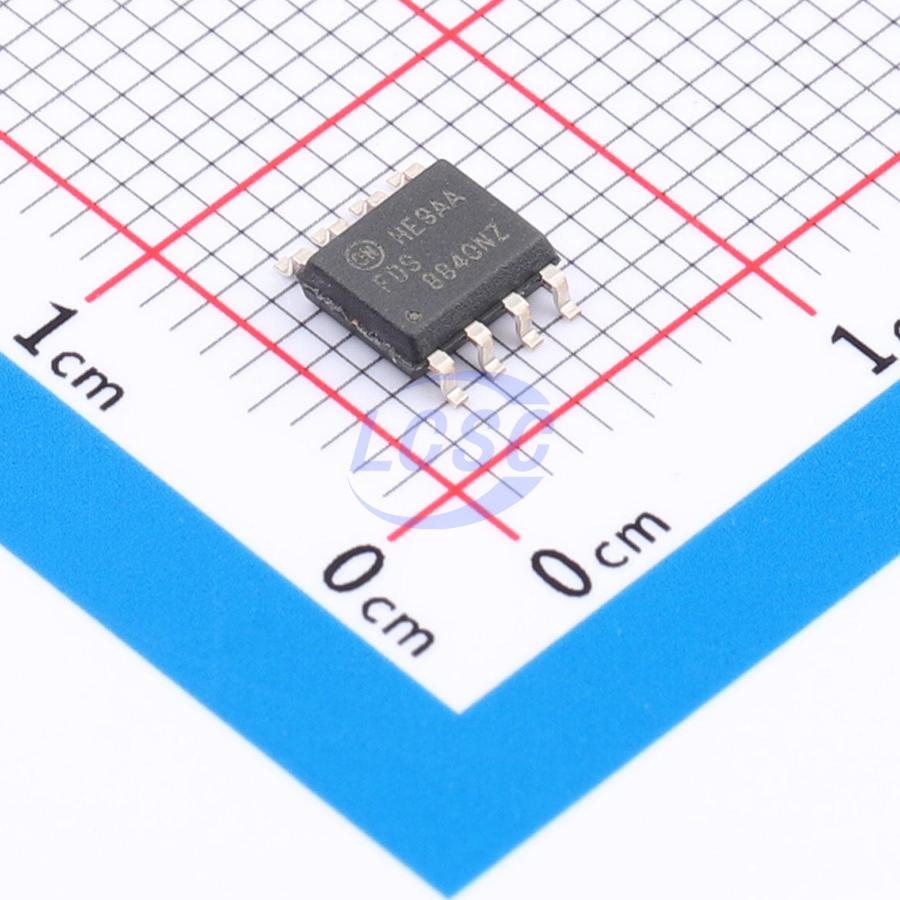

FDS8840NZ
2.5W 40V 18.6A 4.5mΩ@10V 1 N-channel N-Channel SO-8 Single FETs, MOSFETs RoHS
SO-8ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- FDS8840NZ
- Store part #
- C903641
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C903641
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹338.12 | ₹338.12 |
| 10+ | ₹283.48 | ₹2,834.80 |
| 30+ | ₹249.50 | ₹7,485.00 |
| 100+ | ₹214.46 | ₹21,446.00 |
| 500+ | ₹198.78 | ₹99,390.00 |
| 1,000+ | ₹191.81 | ₹1,91,810.00 |
1 × ₹338.12
₹338.12
excl. GST
₹398.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDS8840NZ
₹338.12 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 650pF
- Ciss-Input Capacitance
- 7.535nF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 18.6A
- Reverse Transfer Capacitance (Crss)
- 445pF
- RDS(on)
- 4.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 144nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.139 g
Overview
FDS8840NZ is designed to minimize losses in power conversion applications. Combining advances in silicon technology and packaging, it achieves the lowest on-resistance rDS(on) while maintaining excellent switching performance.
Applications
- Synchronous buck circuits for Vcore and server applications
- Notebook battery packs
- Load switches
Key features
- Maximum on-resistance rDS(on) = 4.5 mΩ at VGS = 10 V, ID = 18.6 A
- Maximum on-resistance rDS(on) = 6.0 mΩ at VGS = 4.5 V, ID = 14.9 A
- Typical HBM ESD protection rating of 6 kV
- High-performance trench technology for ultra-low rDS(on) and fast switching
- High power and current handling capability
- Lead-free, halogen-free/BFR-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSM4094#C700989HUASHUO · SOP-8 | HUASHUO | SOP-8 | 537 | ₹58.73 · 537 in stock | View |
 | AP9474GM-VB#C693434VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 29 | ₹68.28 · 29 in stock | View |
 | IRF7842TRPBF#C495809Infineon · SO-8 | Infineon | SO-8 | 7,625 | ₹111.69 · 7,625 in stock | View |
 | TSM4436CS RLG-VB#C5355720VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 40 | ₹59.67 · 40 in stock | View |
 | AO4268#C2997883AOS · SOIC-8 | AOS | SOIC-8 | 7,459 | ₹100.61 · 7,459 in stock | View |
