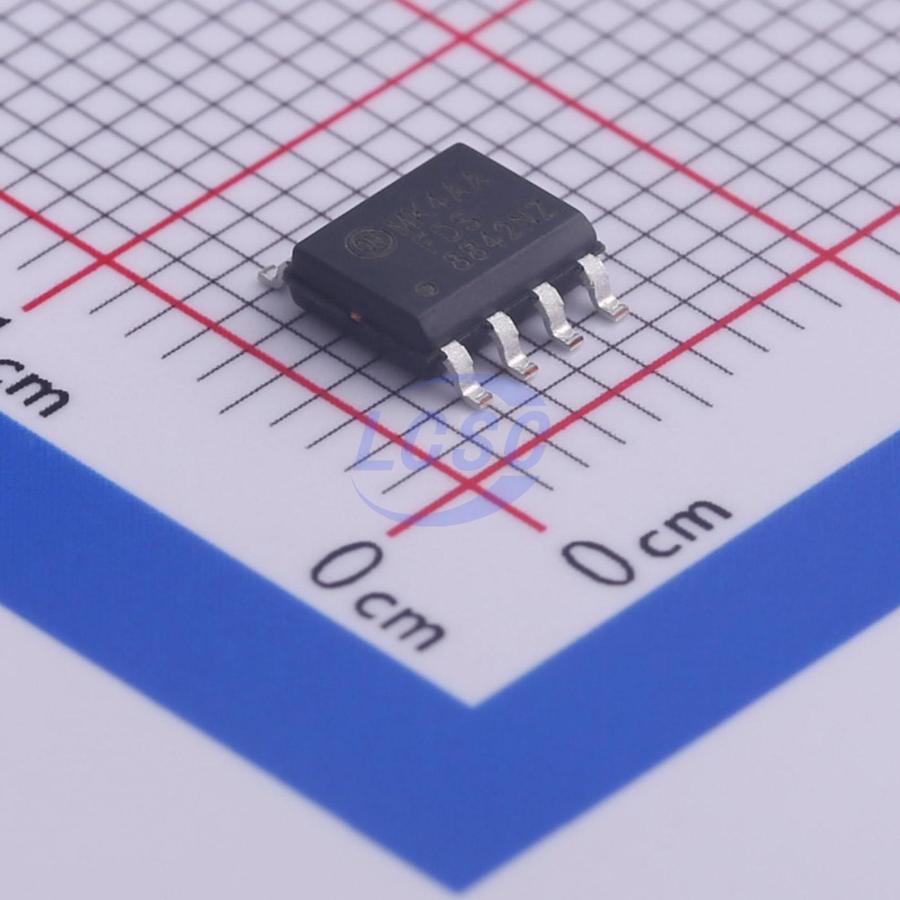

FDS8842NZ
N-Channel 40V 14.9A 2.5W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET N-CH 40V 14.9A SO-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDS8842NZ
- Store part #
- C467455
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29 in stock
#C467455
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹302.05 | ₹302.05 |
| 10+ | ₹254.03 | ₹2,540.30 |
| 30+ | ₹224.04 | ₹6,721.20 |
| 100+ | ₹193.40 | ₹19,340.00 |
| 500+ | ₹179.49 | ₹89,745.00 |
| 1,000+ | ₹173.41 | ₹1,73,410.00 |
1 × ₹302.05
₹302.05
excl. GST
₹356.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDS8842NZ
₹302.05 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 340pF
- Ciss-Input Capacitance
- 3.845nF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 14.9A
- Reverse Transfer Capacitance (Crss)
- 330pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 73nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.9V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.112 g
Overview
FDS8842NZ is designed to minimize losses in power conversion applications. Combining advances in silicon technology and packaging, it achieves the lowest RDS(ON) while maintaining excellent switching performance.
Applications
- Synchronous buck converters for notebook Vcore and server applications
- Notebook battery
- Load switch
Key features
- Maximum rDS(on) = 7.0 mΩ at VGS = 10 V, ID = 14.9 A
- Maximum rDS(on) = 11.6 mΩ at VGS = 4.5 V, ID = 11.6 A
- Typical HBM ESD protection rating of 4.4 kV
- High-performance trench technology for ultra-low RDS(ON) and fast switching
- High power and high current handling capability
- Lead-free pins, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSM4094#C700989HUASHUO · SOP-8 | HUASHUO | SOP-8 | 537 | ₹58.73 · 537 in stock | View |
 | ASDM65N18S/SOP8#C520566ASDsemi · SOP-8 | ASDsemi | SOP-8 | 85 | ₹31.42 · 85 in stock | View |
 | IRF7842TRPBF#C495809Infineon · SO-8 | Infineon | SO-8 | 7,625 | ₹111.69 · 7,625 in stock | View |
 | YFW15N10S#C55073169YFW · SOP-8 | YFW | SOP-8 | 30 | ₹21.54 · 30 in stock | View |
 | WSP6024#C719109Winsok Semicon · SOP-8 | Winsok Semicon | SOP-8 | 2,930 | ₹43.73 · 2,930 in stock | View |
