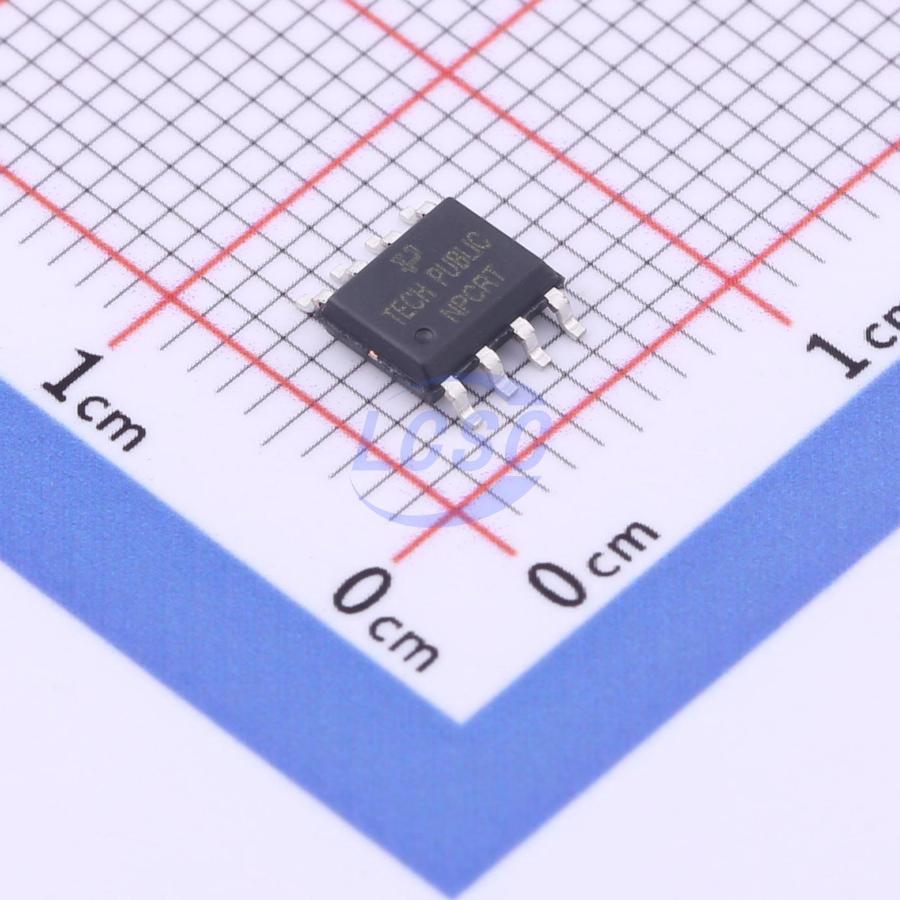

FDS8958A
30V 6A 1.1W Surface Mount SOP-8
SOP-8RoHSActive
MOSFET 30V 6A SOP-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- FDS8958A
- Store part #
- C5123898
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,615 in stock
#C5123898
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.86 | ₹109.30 |
| 50+ | ₹19.34 | ₹967.00 |
| 150+ | ₹18.26 | ₹2,739.00 |
| 500+ | ₹16.92 | ₹8,460.00 |
| 3,000+ | ₹14.37 | ₹43,110.00 |
| 6,000+ | ₹14.01 | ₹84,060.00 |
5 × ₹21.86
₹109.30
excl. GST
₹128.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDS8958A
₹109.30 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 59pF
- Ciss-Input Capacitance
- 846pF
- Pd - Power Dissipation
- 1.1W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 76pF
- RDS(on)
- 30mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 7.8nC@15V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
Applications
- Battery protection
- Load switch
Key features
- High-speed power switching, logic level
- Enhanced body diode dv/dt capability
- Enhanced avalanche ruggedness
- 100% single-pulse avalanche energy (UIS) tested, 100% gate resistance (Rg) tested
- Lead-free, halogen-free
