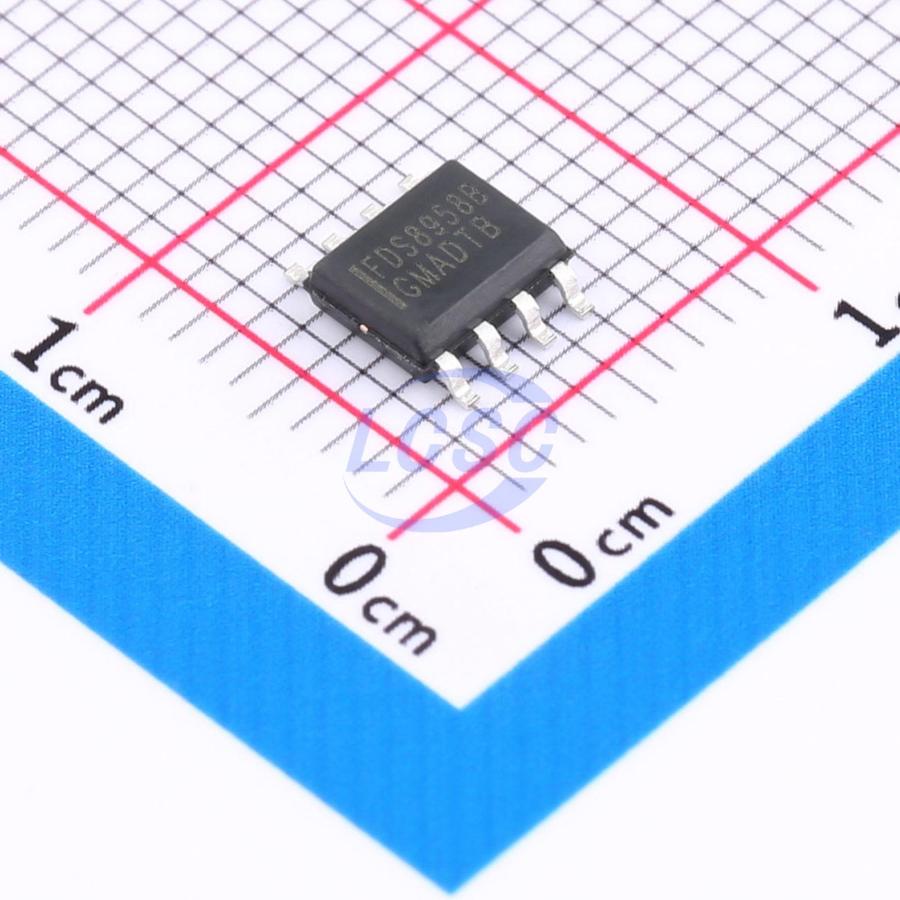

FDS8958B
N-Channel+P-Channel Array 30V 6.4A 2W Surface Mount SO-8
SO-8ROHS3 CompliantDiscontinued
MOSFET N-CH+P-CH ARR 30V 6.4A SO-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDS8958B
- Store part #
- C241821
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C241821
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹139.68 | ₹139.68 |
| 10+ | ₹113.34 | ₹1,133.40 |
| 30+ | ₹99.97 | ₹2,999.10 |
| 100+ | ₹87.01 | ₹8,701.00 |
| 500+ | ₹79.23 | ₹39,615.00 |
| 1,000+ | ₹75.13 | ₹75,130.00 |
1 × ₹139.68
₹139.68
excl. GST
₹164.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDS8958B
₹139.68 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 155pF
- Ciss-Input Capacitance
- 540pF
- Pd - Power Dissipation
- 2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 6.4A
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 26mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 14nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.215 g
Overview
These dual N- and P-Channel enhancement mode power field effect transistors are produced using advanced PowerTrench® process that has been especially tailored to minimize on-state resistance and yet maintain superior switching performance. These devices are well suited for low voltage and battery powered applications where low in-line power loss and fast switching are required. RoHS Compliant
Applications
- DC-DC Conversion
- BLU and motor drive inverter
- SO-8
Key features
- Q1: N-Channel
- Max RDS(on)=26 mΩ at VGS=10 V, ID=6.4 A
- Max RDS(on)=39 mΩ at VGS=4.5 V, ID=5.2 A
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP3034CP8#C22385402Siliup · SOP-8 | Siliup | SOP-8 | 3,980 | ₹7.99 · 3,980 in stock | View |
 | HSM4606#C508784HUASHUO · SOP-8 | HUASHUO | SOP-8 | 5 | ₹16.97 · 5 in stock | View |
 | TW4606#C52117635TWGMC · SOP-8 | TWGMC | SOP-8 | 1,835 | ₹11.19 · 1,835 in stock | View |
 | FDS8958A#C2931003onsemi · SOIC-8 | onsemi | SOIC-8 | 28 | ₹140.16 · 28 in stock | View |
| PTS4614#C48782950HT(Shenzhen Jinyu Semicon) · SOP-8 | HT(Shenzhen Jinyu Semicon) | SOP-8 | 2,940 | ₹20.06 · 2,940 in stock | View | |
