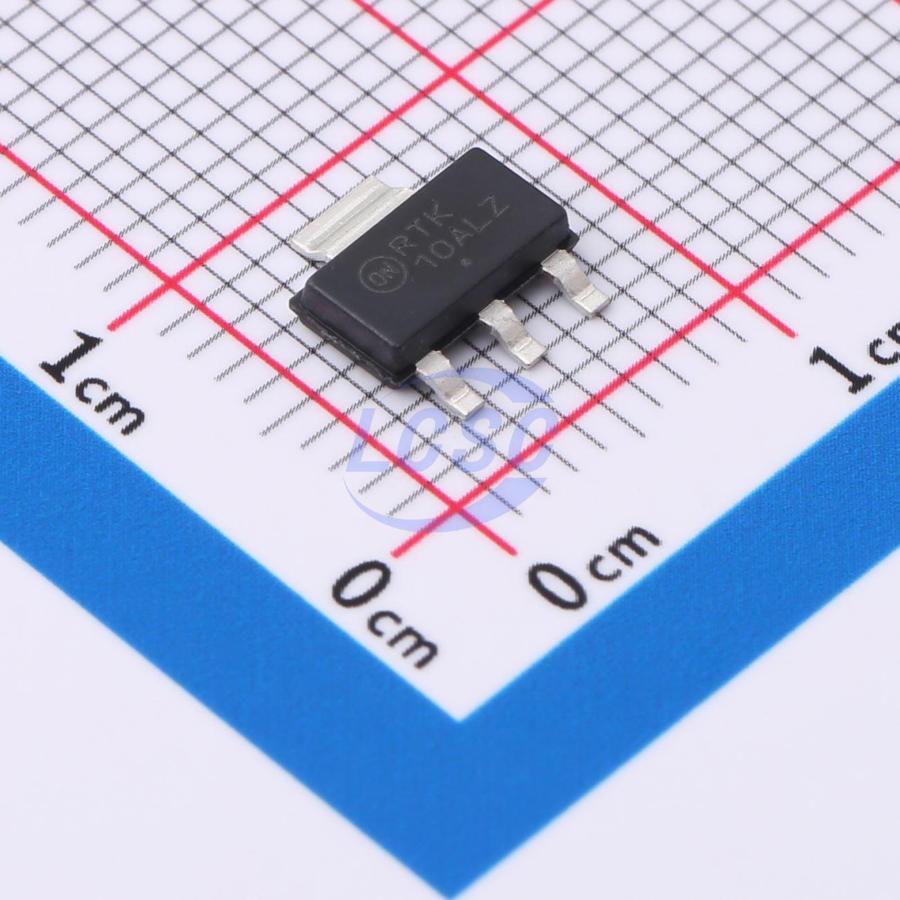

FDT1600N10ALZ
N-Channel 100V 5.6A 10.42W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET N-CH 100V 5.6A SOT-223
- Manufacturer
- onsemi
- Manufacturer part #
- FDT1600N10ALZ
- Store part #
- C555479
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
223 in stock
#C555479
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹147.10 | ₹147.10 |
| 10+ | ₹121.46 | ₹1,214.60 |
| 30+ | ₹107.35 | ₹3,220.50 |
| 100+ | ₹91.49 | ₹9,149.00 |
| 500+ | ₹80.19 | ₹40,095.00 |
| 1,000+ | ₹76.92 | ₹76,920.00 |
1 × ₹147.10
₹147.10
excl. GST
₹173.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FDT1600N10ALZ
₹147.10 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 43pF
- Ciss-Input Capacitance
- 169pF
- Pd - Power Dissipation
- 10.42W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 5.6A
- Reverse Transfer Capacitance (Crss)
- 2.04pF
- RDS(on)
- 121mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 2.9nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.011 g
Overview
This N-Channel MOSFET is produced using Fairchld Semiconductor’s advanced PowerTrench® process that has been tailored to minimize the on-state resistance and maintain superior switching performance.
Applications
- Consumer Appliances
- LED TV and Monitor Synchronous Rectification
- Uninterruptible Power Supply
- Micro Solar Inverter
Key features
- RDS(on)=121 mΩ (Typ.) @ ID=2.8 A
- RDS(on)=156 mΩ (Typ.) @ VGS=5 V, ID=1.8 A
- Low Gate Charge (Typ. 2.9 nC)
- Low Crss (Typ. 2.04 pF)
- Fast Switching
- 100% Avalanche Tested
- Improved dv/dt Capability
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDT3612#C7472931TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,260 | ₹27.02 · 2,260 in stock | View |
 | BUK9875-100A#C5122011TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 3,155 | ₹30.47 · 3,155 in stock | View |
 | IRLL110TRPBF#C5122023TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,250 | ₹39.31 · 2,250 in stock | View |
 | TPM1004NY3-1#C5122052TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 345 | ₹44.28 · 345 in stock | View |
 | AGM10N15R#C5447828AGMSEMI · SOT-223 | AGMSEMI | SOT-223 | 2,205 | ₹22.09 · 2,205 in stock | View |
