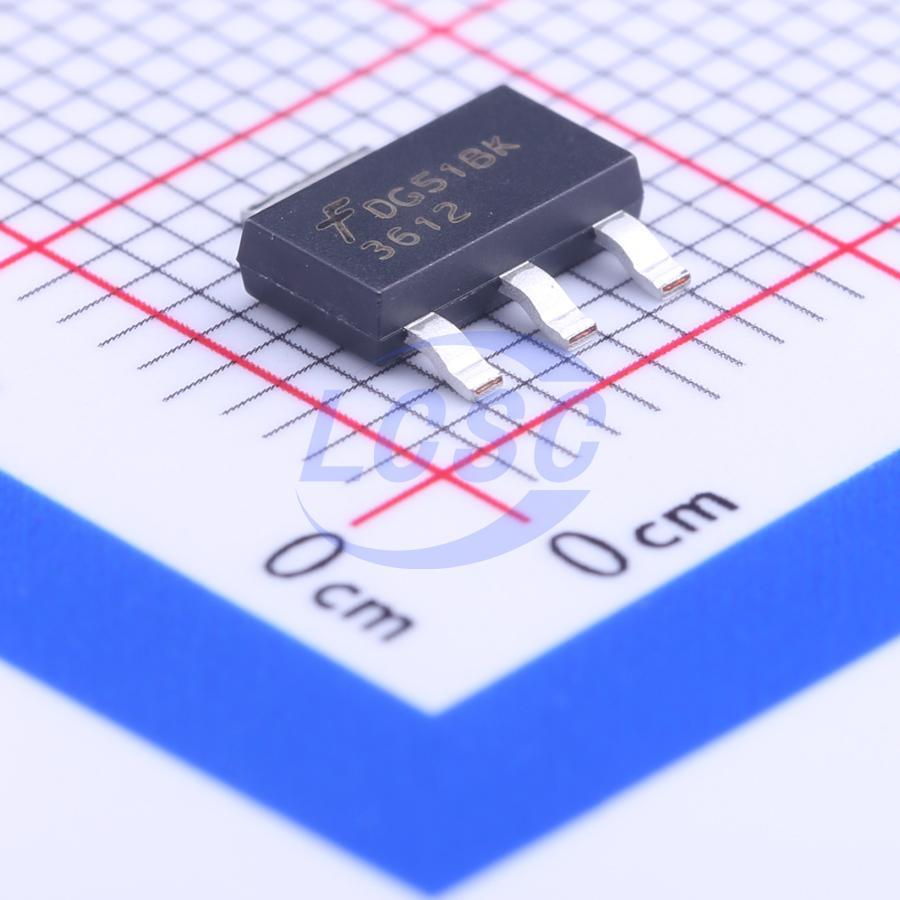

FDT3612
3W 100V 3.7A 88mΩ@10V 1 N-channel N-Channel SOT-223-3 Single FETs, MOSFETs RoHS
SOT-223-3ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- FDT3612
- Store part #
- C127977
- Package / case
- SOT-223-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
56 in stock
#C127977
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.09 | ₹80.09 |
| 10+ | ₹64.99 | ₹649.90 |
| 30+ | ₹57.43 | ₹1,722.90 |
| 100+ | ₹49.88 | ₹4,988.00 |
| 500+ | ₹45.56 | ₹22,780.00 |
| 1,000+ | ₹43.18 | ₹43,180.00 |
1 × ₹80.09
₹80.09
excl. GST
₹94.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FDT3612
₹80.09 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 40pF
- Ciss-Input Capacitance
- 632pF
- Pd - Power Dissipation
- 3W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 3.7A
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 88mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.202 g
Overview
This N-channel MOSFET is designed to improve the overall efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. Compared to other MOSFETs with similar RDS(ON) specifications, these MOSFETs feature faster switching speeds and lower gate charge. As a result, they are easy and safe to drive (even at very high frequencies), enabling DC/DC power supply designs with higher overall efficiency.
Applications
- DC/DC Converter - Motor Drive
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDT3612(UMW)#C20617897UMW · SOT-223 | UMW | SOT-223 | 945 | ₹15.39 · 945 in stock | View |
 | FDT86256-VB#C20755501VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 17 | ₹104.20 · 17 in stock | View |
 | IRLM110A-VB#C7568809VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 3 | ₹61.43 · 3 in stock | View |
 | BUK98180-100A-VB#C7569086VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 4 | ₹61.43 · 4 in stock | View |
 | SL10N10A#C2965540Slkor · SOT-223 | Slkor | SOT-223 | 4,100 | ₹27.99 · 4,100 in stock | View |
