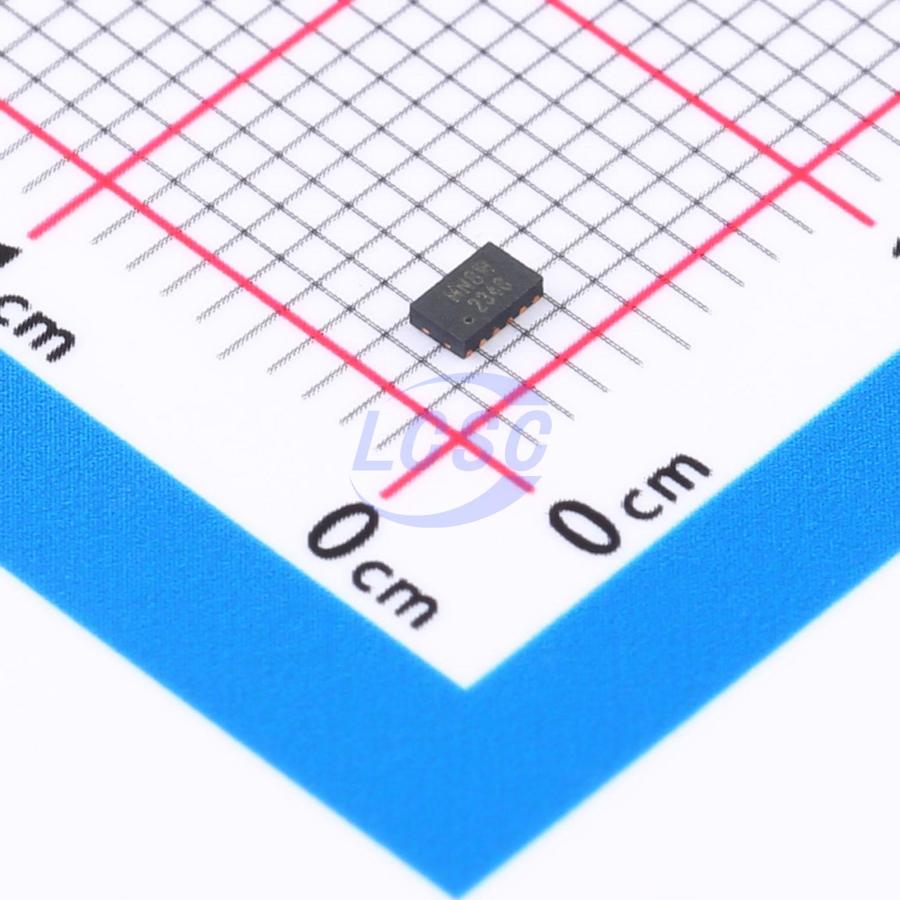

Full-Way

FDT7721

670kHz 120mA UTDFN-12(1.5x2.4) Voltage Regulators - DC DC Switching Regulators RoHS

UTDFN-12(1.5x2.4)ROHS CompliantActive

670kHz switched capacitor dual-channel voltage output converter

Manufacturer: Full-Way
Manufacturer part #: FDT7721
Store part #: C19632400
Package / case: UTDFN-12(1.5x2.4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,600 in stock

#C19632400

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹22.44	₹112.20
50+	₹17.50	₹875.00
150+	₹15.40	₹2,310.00
500+	₹12.77	₹6,385.00
2,500+	₹12.18	₹30,450.00
5,000+	₹11.48	₹57,400.00

Quantity (min 5, multiples of 5)

5 × ₹22.44

₹112.20

excl. GST

₹132.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

FDT7721

₹112.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 670kHz
Operating Voltage: 2.5V~4.8V
Output Current: 120mA
Output Voltage: 5.6V~6V;-6V~-5.6V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.09 g

Overview

This device is an integrated power solution optimized for small- to mid-size TFT-LCD displays, primarily used in driver ICs for smartphone and tablet LCD panels. The positive charge pump features an internal switch, typically supporting output currents up to 120mA at VCI=2.8V. The negative charge pump features an internal switch, generating a -1× VSN voltage, also typically supporting output currents up to 120mA at VCI=2.8V. The system clock can either synchronize with an external signal from the driver IC or be generated internally by a fixed 670kHz oscillator. The device is available in a thin 12-pin 2.4×1.5mm UTDFN green package.
