onsemiDatasheet (PDF)

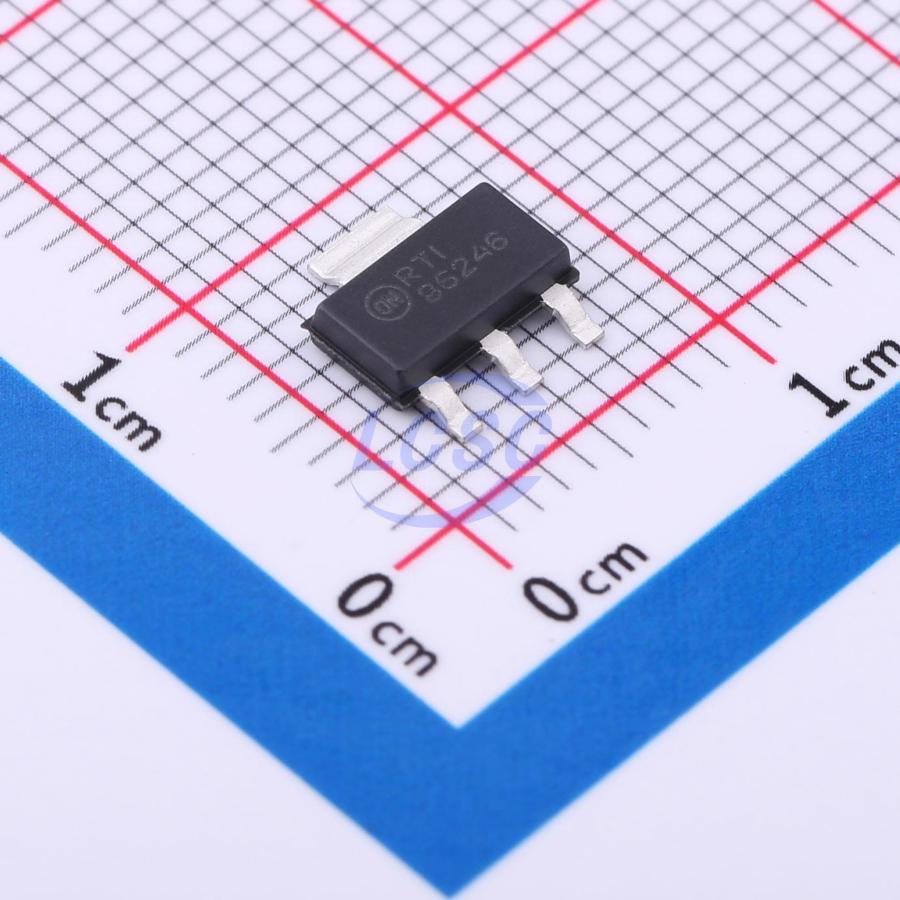

FDT86246
N-Channel 150V 2A 2.2W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET N-CH 150V 2A SOT-223
- Manufacturer
- onsemi
- Manufacturer part #
- FDT86246
- Store part #
- C894835
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C894835
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹164.36 | ₹164.36 |
| 10+ | ₹137.58 | ₹1,375.80 |
| 30+ | ₹122.79 | ₹3,683.70 |
| 100+ | ₹106.03 | ₹10,603.00 |
| 500+ | ₹98.62 | ₹49,310.00 |
| 1,000+ | ₹95.14 | ₹95,140.00 |
1 × ₹164.36
₹164.36
excl. GST
₹193.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FDT86246
₹164.36 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 21pF
- Ciss-Input Capacitance
- 215pF
- Pd - Power Dissipation
- 2.2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 2A
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 236mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 2.9nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
This N-Channel MOSFET is produced using Fairchild Semiconductor‘s advanced Power Trench® process that has been optimized for rDS(on), switching performance and ruggedness.
Applications
- Load Switch
- Primary Switch
Key features
- Maximum on-resistance (rDS(on)) = 236 mΩ at VGS = 10 V, ID = 2 A
- Maximum on-resistance (rDS(on)) = 329 mΩ at VGS = 6 V, ID = 1.7 A
- High-performance trench technology for ultra-low rDS(on)
- High power and current handling capability in widely used SMT packages
- Fast switching speed
- 100% UIL tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSL2N15#C51025830HUASHUO · SOT-223 | HUASHUO | SOT-223 | 2,915 | ₹21.62 · 2,915 in stock | View |
 | FDT86244#C489347KEXIN · SOT-223 | KEXIN | SOT-223 | 1,495 | ₹32.70 · 1,495 in stock | View |
 | FDT86244#C3289938onsemi · SOT-223 | onsemi | SOT-223 | 1,879 | ₹100.38 · 1,879 in stock | View |
 | NCE1502R#C502844NCE · SOT-223-3L | NCE | SOT-223-3L | 285 | ₹22.09 · 285 in stock | View |
 | AGM10N15R#C5447828AGMSEMI · SOT-223 | AGMSEMI | SOT-223 | 2,205 | ₹22.09 · 2,205 in stock | View |
