FDZ661PZ
P-Channel 20V 2.6A 1.3W Surface Mount WLCSP-4(0.8X0.8)
WLCSP-4(0.8X0.8)ROHS3 CompliantDiscontinued

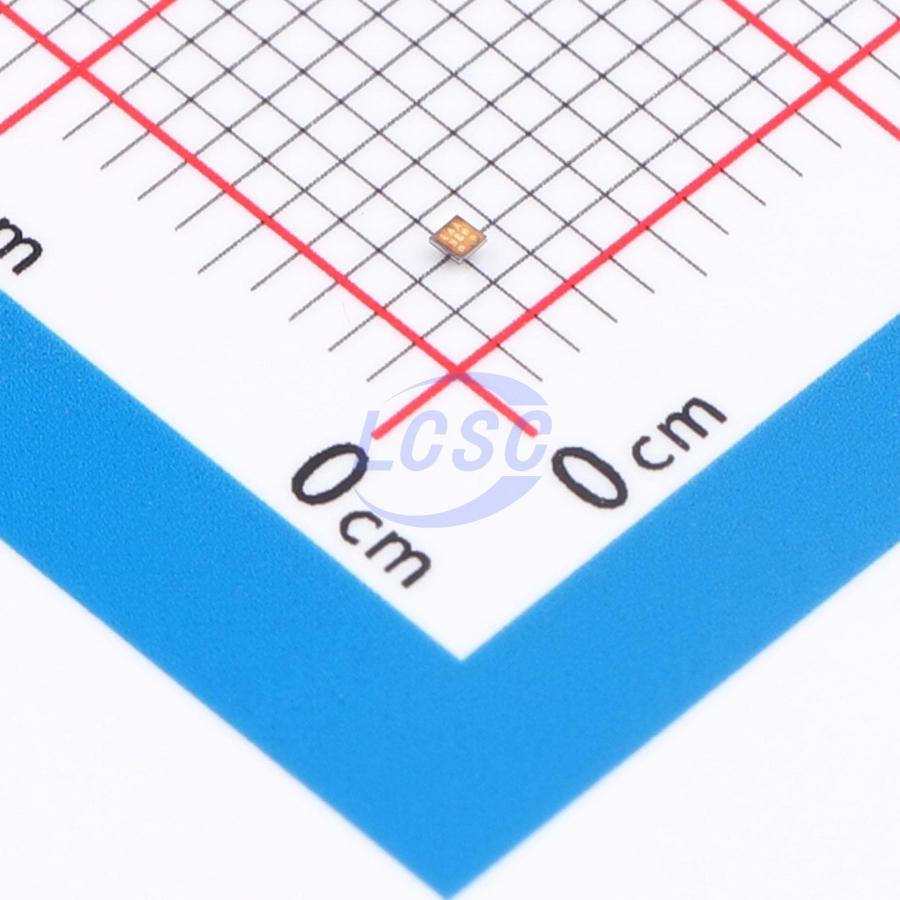

MOSFET P-CH 20V 2.6A WLCSP-4(0.8X0.8)
- Manufacturer
- onsemi
- Manufacturer part #
- FDZ661PZ
- Store part #
- C895389
- Package / case
- WLCSP-4(0.8X0.8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
42 in stock
#C895389
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹140.49 | ₹140.49 |
| 10+ | ₹117.42 | ₹1,174.20 |
| 30+ | ₹104.86 | ₹3,145.80 |
| 100+ | ₹90.49 | ₹9,049.00 |
| 500+ | ₹84.22 | ₹42,110.00 |
| 1,000+ | ₹81.38 | ₹81,380.00 |
1 × ₹140.49
₹140.49
excl. GST
₹165.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
FDZ661PZ
₹140.49 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 2.6A
- Ciss-Input Capacitance
- 555pF
- Pd - Power Dissipation
- 1.3W
- Reverse Transfer Capacitance (Crss)
- 70pF
- RDS(on)
- 140mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 8.8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.01 g
Overview
The FDZ661PZ is designed using advanced 1.5 V PowerTrench technology combined with an advanced "fine-pitch" thin WLCSP packaging process to minimize PCB space and rDS(on). This advanced WLCSP MOSFET represents a significant breakthrough in packaging technology, offering excellent thermal transfer characteristics, an ultra-thin profile (0.4 mm), a compact package (0.8 × 0.8 mm²), low gate charge, and low rDS(on).
Applications
- Battery Management - Load Switch - Battery Protection
Key features
- Maximum rDS(on) = 140 mΩ at VGS = -4.5 V, ID = -2 A
- Maximum rDS(on) = 182 mΩ at VGS = -2.5 V, ID = -1.5 A
- Maximum rDS(on) = 231 mΩ at VGS = -1.8 V, ID = -1 A
- Maximum rDS(on) = 315 mΩ at VGS = -1.5 V, ID = -1 A
- 0.64 mm² PCB footprint, less than 16% of 2 x 2 BGA area
- Ultra-thin package: height less than 0.4 mm when mounted on PCB
- HBM ESD protection class >2 kV
- RoHS compliant
