Advanced Analog TechnologyDatasheet (PDF)

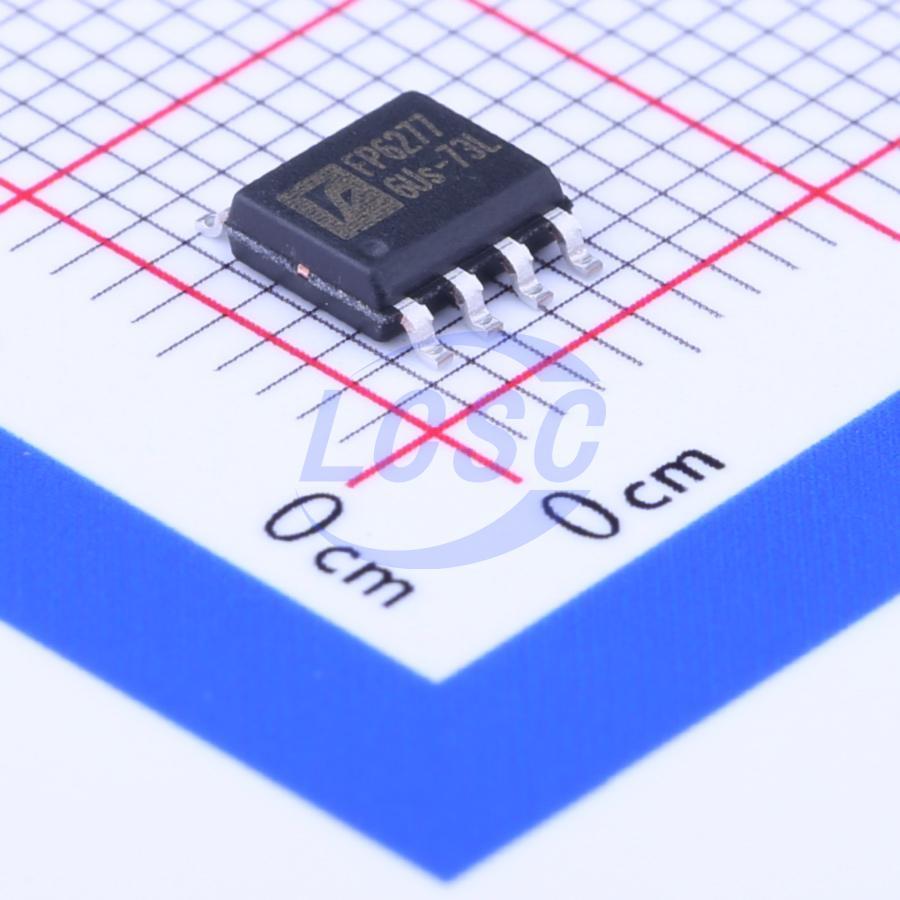

FP6277XR-G1
500kHz Boost Adjustable 600mV~5.3V 7A SOP-8-EP Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8-EPROHS CompliantActive
500kHz 7A High Efficiency Synchronous PWM Boost Converter
- Manufacturer
- Advanced Analog Technology
- Manufacturer part #
- FP6277XR-G1
- Store part #
- C88312
- Package / case
- SOP-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,550 in stock
#C88312
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.11 | ₹82.11 |
| 10+ | ₹67.12 | ₹671.20 |
| 30+ | ₹59.73 | ₹1,791.90 |
| 100+ | ₹52.35 | ₹5,235.00 |
| 500+ | ₹44.31 | ₹22,155.00 |
| 1,000+ | ₹42.14 | ₹42,140.00 |
1 × ₹82.11
₹82.11
excl. GST
₹96.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FP6277XR-G1
₹82.11 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 500kHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Load disconnect;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.4V~4.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~5.3V
- Output Current
- 7A
- Quiescent Current
- 280uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.266 g
Overview
The FP6277 is a current mode boost DC-DC converter with PWM/PSM control. Its PWM circuitry with built-in 30mΩ high side switch and 30mΩ low side switch make this regulator highly power efficient. The internal compensation network also minimizes external component counts to only 6. An internal 0.6V voltage is connected to error amplifier the non-inverting input as precision reference voltage. Built-in soft-start function can reduce the inrush current.
Applications
- Chargers
- Handheld Devices
- Portable Products
- Power Bank
Key features
- Current mode with PWM/PSM control
- Input voltage range: 2.4V~4.5V
- Adjustable Output up to 5.3V
- Shutdown current: <1uA
- Oscillator frequency: 500KHz
- Reference voltage: 0.6V +/−2%
- Disconnect load during shutdown
- Cycle-by-cycle current limit
- Low RDS(on): 30mΩ for both high and low side
- Protection: OTP, OCP, SCP
- Internal compensation
- Internal soft-start: 7ms
- Package: SOP-8L(EP)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FP6276BXR-G1#C82652Advanced Analog Technology · SOP-8-EP | Advanced Analog Technology | SOP-8-EP | 6,100 | ₹59.83 · 6,100 in stock | View |
