Advanced Analog TechnologyDatasheet (PDF)

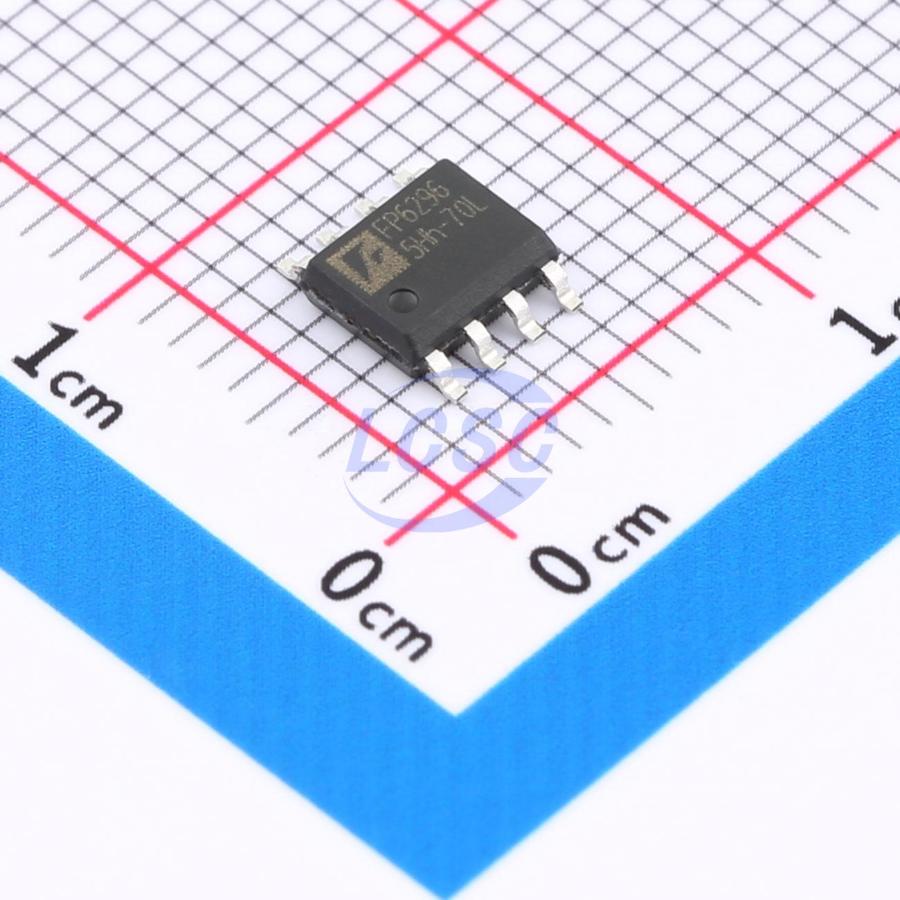

FP6296XR-G1
400kHz Boost Adjustable 13V 10A SOP-8-EP Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8-EPROHS CompliantActive
10A Non-Synchronous PWM Boost Converter
- Manufacturer
- Advanced Analog Technology
- Manufacturer part #
- FP6296XR-G1
- Store part #
- C133888
- Package / case
- SOP-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,361 in stock
#C133888
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.24 | ₹102.24 |
| 10+ | ₹80.27 | ₹802.70 |
| 30+ | ₹70.93 | ₹2,127.90 |
| 100+ | ₹58.95 | ₹5,895.00 |
| 500+ | ₹50.26 | ₹25,130.00 |
| 1,000+ | ₹46.99 | ₹46,990.00 |
1 × ₹102.24
₹102.24
excl. GST
₹120.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FP6296XR-G1
₹102.24 for 1 + GST
Specifications
- Operating Temperature
- -25℃~+85℃
- Frequency - Switching
- 400kHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable current limiting;External compensation;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.7V~12V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 13V
- Output Current
- 10A
- Quiescent Current
- 450uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.42 g
Overview
The FP6296 is a current mode boost DC-DC converter. It is PWM circuitry with built-in 15mΩ power MOSFET make this regulator highly power efficient. The non-inverting input of error amplifier connects to a 1.2V precision reference voltage. Current mode control and external compensation network make is easy and flexible to stabilize the system. The FP6296 is available in the SOP-8L(EP) package to fit in space-saving PCB for the application fields.
Applications
- Chargers
- LCD Displays
- Digital Cameras
- Handheld Devices
- Portable Products
- Power Bank
Key features
- Supply Voltage Operating Range: 2.7V to 12V
- Adjustable Output up to 13V
- Internal Fixed PWM frequency: 400KHz
- Precision Feedback Reference Voltage: 1.2V (±2%)
- Internal 15mΩ, 10A, 14V Power MOSFET
- Shutdown Current: 1μA (Max.)
- Over Temperature Protection
- Internal Soft Start Function
- Adjustable Over Current Protection: 2A ~ 10A
- Package: SOP-8L(EP)
