Advanced Analog TechnologyDatasheet (PDF)

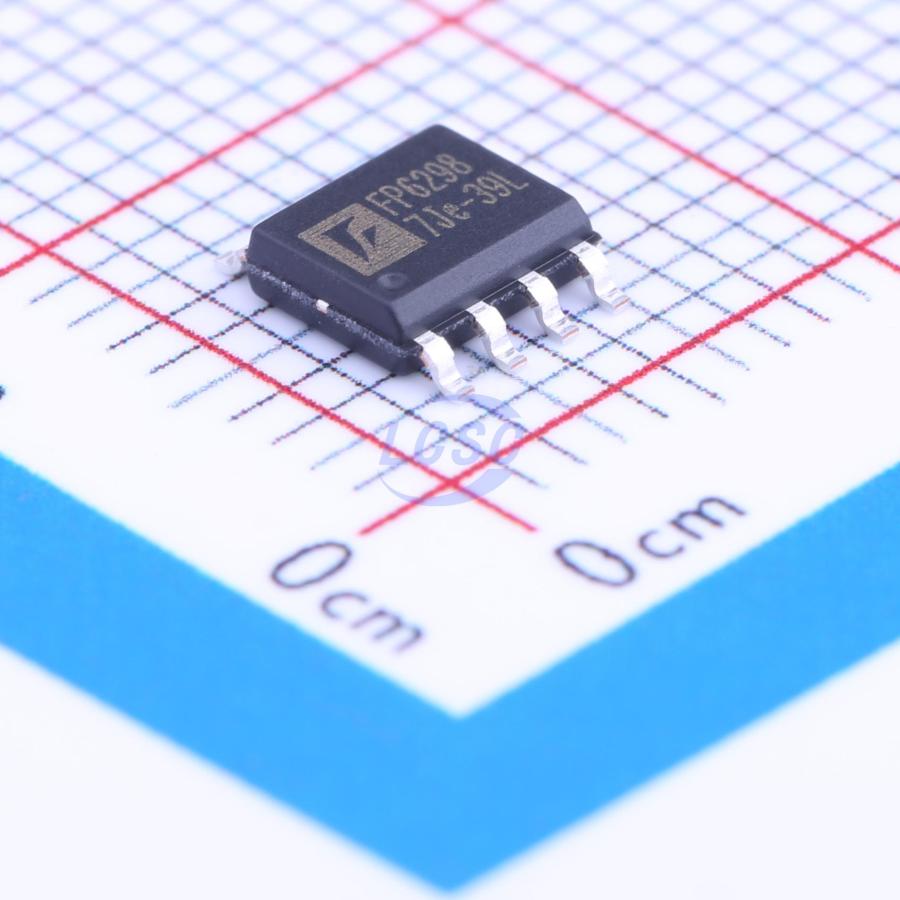

FP6298XR-G1
500kHz Boost Adjustable 600mV~9V 4.5A SOP-8-EP Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8-EPROHS CompliantActive
4.5A Low-Noise Step-Up Current Mode PWM Converter
- Manufacturer
- Advanced Analog Technology
- Manufacturer part #
- FP6298XR-G1
- Store part #
- C88319
- Package / case
- SOP-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,924 in stock
#C88319
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.45 | ₹58.45 |
| 10+ | ₹45.63 | ₹456.30 |
| 30+ | ₹40.19 | ₹1,205.70 |
| 100+ | ₹33.46 | ₹3,346.00 |
| 500+ | ₹30.64 | ₹15,320.00 |
| 1,000+ | ₹28.68 | ₹28,680.00 |
1 × ₹58.45
₹58.45
excl. GST
₹68.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FP6298XR-G1
₹58.45 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 500kHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.6V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~9V
- Output Current
- 4.5A
- Quiescent Current
- 200uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.263 g
Overview
The FP6298 is a current mode boost DC-DC converter. It is PWM circuitry with built-in 0.08Ω power MOSFET make this regulator highly power efficient. The internal compensation network also minimizes as much as 6 external component counts. The non-inverting input of error amplifier connects to a 0.6V precision reference voltage and internal soft-start function can reduce the inrush current. The FP6298 is available in the SOP-8L(EP) package and provides space-saving PCB for the application fields.
Applications
- Chargers
- LCD Displays
- Digital Cameras
- Handheld Devices
- Portable Products
Key features
- Adjustable Output up to 9V
- Internal Fixed PWM frequency: 500KHz
- Precision Feedback Reference Voltage: 0.6V (±2%)
- Internal 0.08Ω, 4.5A, 12V Power MOSFET
- Shutdown Current: 0.1μA
- Over Temperature Protection
- Over Voltage Protection
- Adjustable Over Current Protection: 0.5A ~ 4.5A
- Package: SOP-8L(EP)
