FITIPOWERDatasheet (PDF)

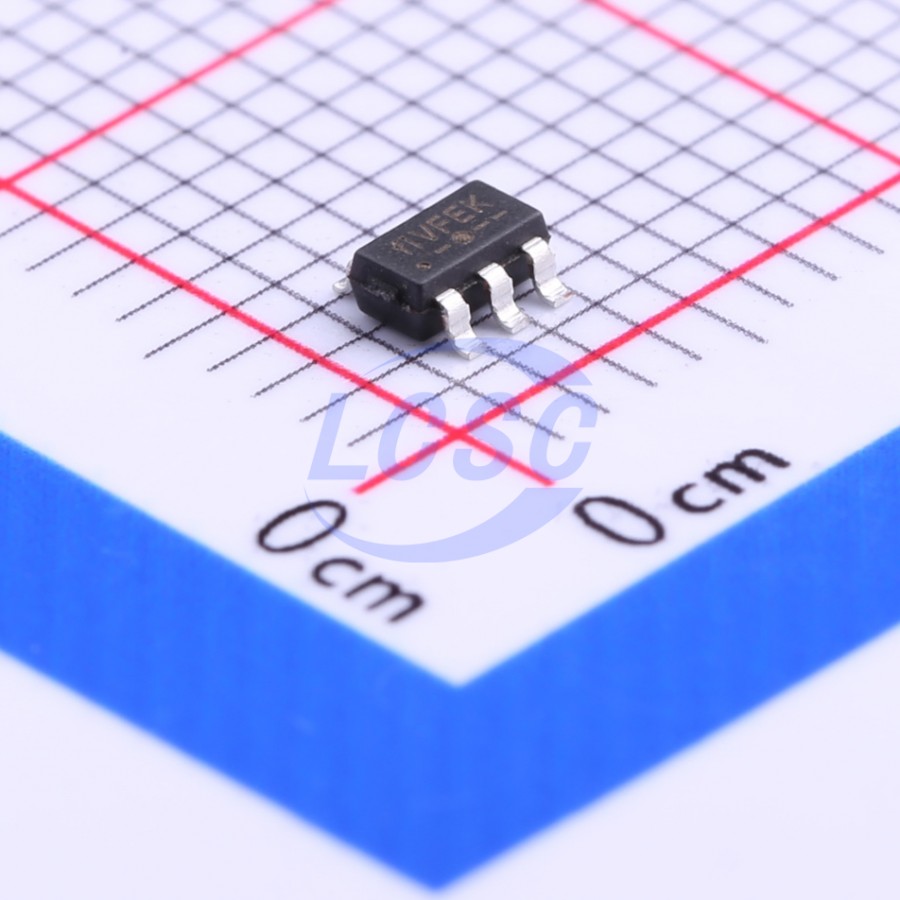

FP6373AS6CTR
1MHz Step-down type Adjustable 600mV~5.5V 3A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
High Efficiency 1MHz 3A Synchronous Step Down Regulator
- Manufacturer
- FITIPOWER
- Manufacturer part #
- FP6373AS6CTR
- Store part #
- C212198
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,240 in stock
#C212198
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.77 | ₹113.85 |
| 50+ | ₹17.97 | ₹898.50 |
| 150+ | ₹15.92 | ₹2,388.00 |
| 500+ | ₹13.35 | ₹6,675.00 |
| 3,000+ | ₹11.75 | ₹35,250.00 |
| 6,000+ | ₹11.06 | ₹66,360.00 |
5 × ₹22.77
₹113.85
excl. GST
₹134.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FP6373AS6CTR
₹113.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Protection latch;Overcurrent Protection;Operating status indication
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.7V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~5.5V
- Output Current
- 3A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
The FP6373A is a high efficiency, internal compensation and constant frequency current mode step-down synchronous DC/DC converter. It has integrated high-side (95mΩ, typ.) and low-side (75mΩ, typ.) power switches, and provides 3A continuous load current. It regulates input voltage from 2.7V to 5.5V and down to an output voltage as low as 0.6V.
Applications
- Set Top Box
- LCD TV
- Tablet
- Portable Equipment
Key features
- 2.7V - 5.5V Input Voltage Range
- Adjustable Output Voltage Down to 0.6V
- Low RDS(ON) for Internal Switch (Top/Bottom): 95/75mΩ
- 1MHz Switching Frequency Minimizes the External Components
- Internal Compensation Function
- Internal Soft-Start Limits the Inrush Current
- 100% Dropout Operation
- Power Good Indicator Output
- RoHS Compliant and Halogen Free
- Compact Package: SOT-23-6
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TMI3113#C840538TMI · SOT-23-6 | TMI | SOT-23-6 | 1,651 | ₹11.91 · 1,651 in stock | View |
 | JW5222SOTB#TRPBF#C5181545JoulWatt Tech · SOT-23-6 | JoulWatt Tech | SOT-23-6 | 2,360 | ₹15.07 · 2,360 in stock | View |
 | JW5222NSOTB#TRPBF#C49047274JoulWatt Tech · SOT-23-6 | JoulWatt Tech | SOT-23-6 | 140 | ₹12.08 · 140 in stock | View |
 | TMI3113H2#C2985061TMI · SOT-23-6 | TMI | SOT-23-6 | On request | ₹18.95 · 0 in stock | View |
 | FP6373A#C96354FITIPOWER · SOT-23-6 | FITIPOWER | SOT-23-6 | On request | ₹29.49 · 0 in stock | View |
