FITIPOWERDatasheet (PDF)

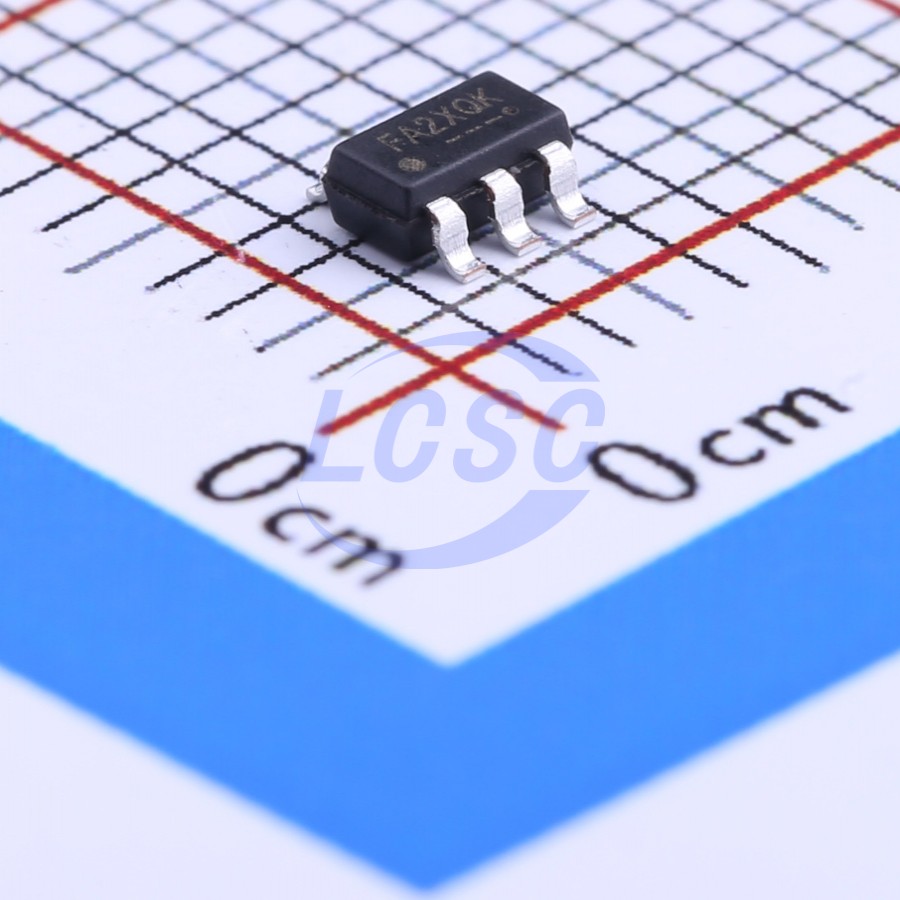

FP6381AS5CTR
1.5MHz Step-down type Adjustable 1.2A SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-5ROHS CompliantActive
High Efficiency 1.5MHz 1.2A Synchronous Step Down Converter
- Manufacturer
- FITIPOWER
- Manufacturer part #
- FP6381AS5CTR
- Store part #
- C148091
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,495 in stock
#C148091
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.73 | ₹53.65 |
| 50+ | ₹8.27 | ₹413.50 |
| 150+ | ₹7.04 | ₹1,056.00 |
| 500+ | ₹6.11 | ₹3,055.00 |
| 3,000+ | ₹5.37 | ₹16,110.00 |
| 6,000+ | ₹5.00 | ₹30,000.00 |
5 × ₹10.73
₹53.65
excl. GST
₹63.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FP6381AS5CTR
₹53.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.5MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;Operating status indication
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.5V~6V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.2A
- Quiescent Current
- 80uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The FP6381A is a high efficiency, high frequency synchronous DC-DC step-down converter. The 100% duty cycle feature provides low dropout operation, extending battery life in portable systems. The internal synchronous switch increases efficiency and eliminates the need for external Schottky diode. At shutdown mode, the input supply current is less than 1μA. The FP6381A fault protection includes cycle-by-cycle current limit, short circuit protection, UVLO and thermal shutdown. The Internal soft-start function prevents inrush current at turn-on. The FP6381A is offered in SOT-23-5, TSOT-23-5 and SOT-23-6 Packages
Applications
- Set Top Box
- LCD TV & Tablet
- AP Router & WiFi Dongle
- 3.5G & 4G Dongle
- USB3.0 & SSD storage
Key features
- Low RDS(ON) for Internal Switch (Top/Bottom): 300/250mΩ
- 2.5V~6V Input Voltage Range
- 0.6V Reference Voltage
- 1.2A Output Current
- 1.5MHz Switching Frequency
- Internal 1ms Soft-Start Time
- Internal Compensation Function
- 100% Dropout Operation
- Power Good Indicator Output (SOT-23-6 only)
- RoHS Compliant and Halogen Free
- SOT-23-5, TSOT-23-5 and SOT-23-6 Packages
