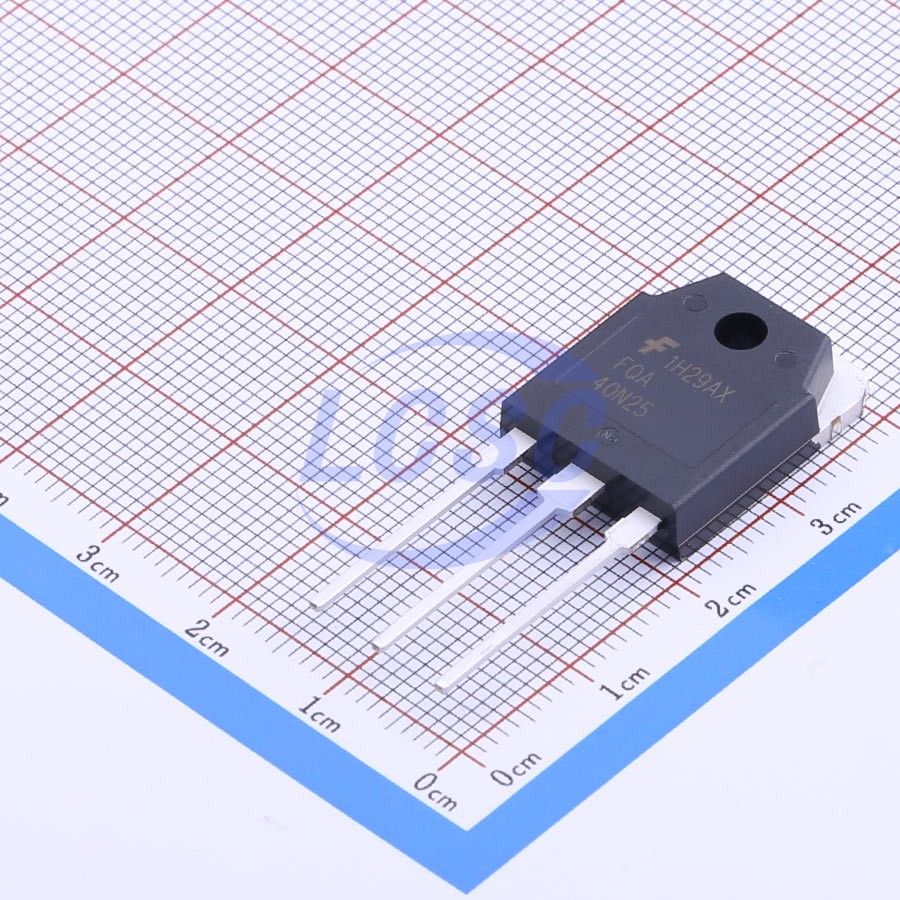

FQA40N25
N-Channel 250V 40A 280W Through Hole TO-3P
TO-3PROHS3 CompliantActive
MOSFET N-CH 250V 40A TO-3P
- Manufacturer
- onsemi
- Manufacturer part #
- FQA40N25
- Store part #
- C10877
- Package / case
- TO-3P
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,287 in stock
#C10877
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹333.04 | ₹333.04 |
| 10+ | ₹282.30 | ₹2,823.00 |
| 30+ | ₹232.00 | ₹6,960.00 |
| 90+ | ₹199.48 | ₹17,953.20 |
| 450+ | ₹184.96 | ₹83,232.00 |
| 900+ | ₹178.45 | ₹1,60,605.00 |
1 × ₹333.04
₹333.04
excl. GST
₹392.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
FQA40N25
₹333.04 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 800pF
- Ciss-Input Capacitance
- 4nF
- Pd - Power Dissipation
- 280W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 250V
- Current - Continuous Drain(Id)
- 40A
- Reverse Transfer Capacitance (Crss)
- 90pF
- RDS(on)
- 70mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 85nC
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.833 g
Overview
These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, planar stripe, DMoS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency switching DC/DC converters, switchmode power supply.
Key features
- 40A, 250V, RDS(on)=0.07Ω @VGS=10V
- Low gate charge ( typical 85 nC)
- Low Crss ( typical 70 pF)
- Fast switching 100% avalanche tested
- Improved dv/dt capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TSA40N25M#C3647140Truesemi · TO-3P-3 | Truesemi | TO-3P-3 | 2 | ₹119.24 · 2 in stock | View |
 | IXTQ50N25T#C426680Littelfuse/IXYS · TO-3P | Littelfuse/IXYS | TO-3P | 443 | ₹298.14 · 443 in stock | View |
 | FQA40N25-OSEN#C55502995OSEN · TO-3PNB | OSEN | TO-3PNB | 300 | ₹141.59 · 300 in stock | View |
 | FDA59N30#C140696onsemi · TO-3PN | onsemi | TO-3PN | 2,498 | ₹317.22 · 2,498 in stock | View |
 | IXTQ52N30P#C3281806Littelfuse/IXYS · TO-3P | Littelfuse/IXYS | TO-3P | 30 | ₹841.38 · 30 in stock | View |
