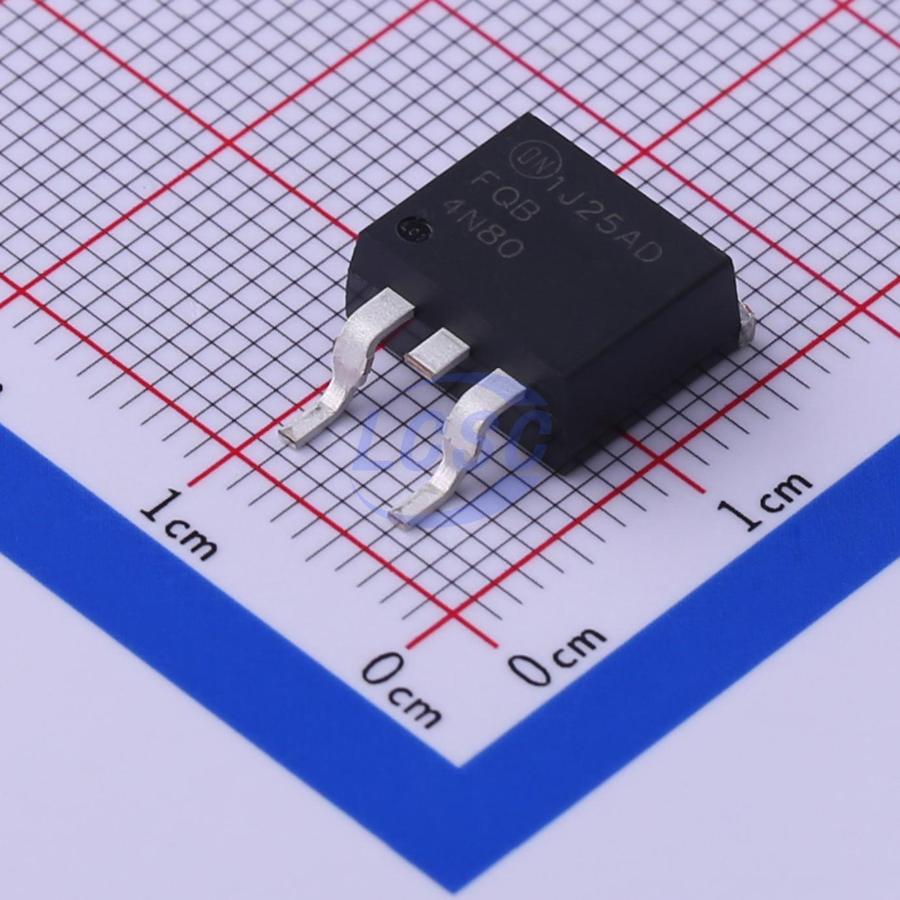

FQB4N80TM
3.13W 800V 3.9A 3.6Ω@10V 1 N-channel N-Channel D2PAK(TO-263) Single FETs, MOSFETs RoHS
D2PAK(TO-263)ROHS3 CompliantActive
MOSFET N-CH 800V 3.9A D2PAK(TO-263)
- Manufacturer
- onsemi
- Manufacturer part #
- FQB4N80TM
- Store part #
- C467464
- Package / case
- D2PAK(TO-263)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
753 in stock
#C467464
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹141.80 | ₹141.80 |
| 10+ | ₹127.06 | ₹1,270.60 |
| 30+ | ₹119.04 | ₹3,571.20 |
| 100+ | ₹109.93 | ₹10,993.00 |
| 500+ | ₹105.81 | ₹52,905.00 |
| 800+ | ₹104.08 | ₹83,264.00 |
1 × ₹141.80
₹141.80
excl. GST
₹167.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
FQB4N80TM
₹141.80 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 75pF
- Ciss-Input Capacitance
- 880pF
- Pd - Power Dissipation
- 3.13W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Current - Continuous Drain(Id)
- 3.9A
- Reverse Transfer Capacitance (Crss)
- 12pF
- RDS(on)
- 3.6Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@640V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.66 g
Overview
This N-channel enhancement-mode power MOSFET is fabricated using planar stripe and DMOS technology. This advanced MOSFET technology has been specially designed to minimize on-resistance while delivering superior switching performance and high avalanche energy ruggedness. These devices are suitable for switch-mode power supplies, active power factor correction (PFC), and electronic lamp ballasts.
Applications
- Switching mode power supplies
- Active power factor correction (PFC)
- Electronic lamp ballasts
Key features
- 3.9 A, 800 V; R DS(on) = 3.6 Ω (max) at V GS = 10 V, I D = 1.95 A
- Low gate charge (typical 19 nC)
- Low C rss (typical 8.6 pF)
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MS6N150HGE0#C42445170MASPOWER · TO-263 | MASPOWER | TO-263 | 15 | ₹531.67 · 15 in stock | View |
 | STB16N90K5#C2970503ST · D2PAK | ST | D2PAK | 19 | ₹1,146.49 · 19 in stock | View |
 | IPB80R290C3A-VB#C22395944VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 3 | ₹493.62 · 3 in stock | View |
 | STB10N95K5#C2688654ST · D2PAK | ST | D2PAK | 521 | ₹303.72 · 521 in stock | View |
 | LSE80R680GT#C2836177LONTEN · TO-263 | LONTEN | TO-263 | 12 | ₹144.37 · 12 in stock | View |
