onsemiDatasheet (PDF)

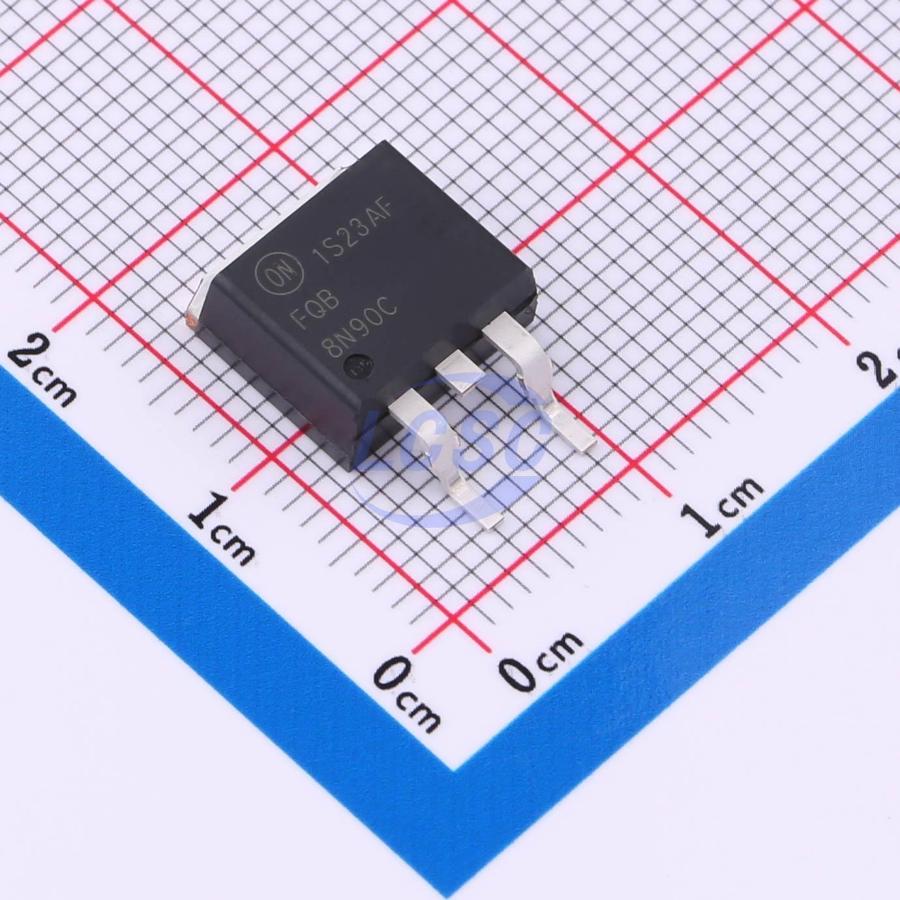

FQB8N90CTM
N-Channel 900V 6.3A 171W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 900V 6.3A TO-263(D2PAK)
- Manufacturer
- onsemi
- Manufacturer part #
- FQB8N90CTM
- Store part #
- C898648
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36 in stock
#C898648
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹333.50 | ₹333.50 |
| 10+ | ₹284.96 | ₹2,849.60 |
| 30+ | ₹254.77 | ₹7,643.10 |
| 100+ | ₹223.53 | ₹22,353.00 |
| 500+ | ₹209.60 | ₹1,04,800.00 |
| 800+ | ₹203.48 | ₹1,62,784.00 |
1 × ₹333.50
₹333.50
excl. GST
₹393.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
FQB8N90CTM
₹333.50 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 900V
- Current - Continuous Drain(Id)
- 6.3A
- Ciss-Input Capacitance
- 2.08nF
- Pd - Power Dissipation
- 171W
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 1.9Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 45nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.029 g
Overview
These N-channel enhancement mode power MOSFETs are manufactured using Fairchild Semiconductor's proprietary planar stripe DMOS technology. This advanced technology has been specifically designed to minimize on-resistance, deliver superior switching performance, and withstand high energy pulses in avalanche and commutation modes. These devices are ideally suited for high-efficiency switch-mode power supplies.
Applications
- Switch-mode power supplies - Audio amplifiers - DC motor control - Variable switching power supply applications
Key features
- 6.3 A, 900 V, R DS(on) = 1.9 Ω (max) at V GS = 10 V
- Low gate charge (typical 35 nC)
- Low C rss (typical 12 pF)
- Fast switching
- 100% avalanche tested
- Improved dv/dt capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STB9NK90Z#C2970138ST · D2PAK | ST | D2PAK | 10 | ₹1,505.64 · 10 in stock | View |
 | MS10N100HGE0#C55042276MASPOWER · TO-263 | MASPOWER | TO-263 | 50 | ₹196.82 · 50 in stock | View |
 | STB16N90K5#C2970503ST · D2PAK | ST | D2PAK | 19 | ₹1,146.49 · 19 in stock | View |
 | RS9N90S#C51904723REASUNOS · TO-263 | REASUNOS | TO-263 | 133 | ₹90.49 · 133 in stock | View |
 | STB10N95K5#C2688654ST · D2PAK | ST | D2PAK | 521 | ₹303.72 · 521 in stock | View |
