VBsemi ElecDatasheet (PDF)

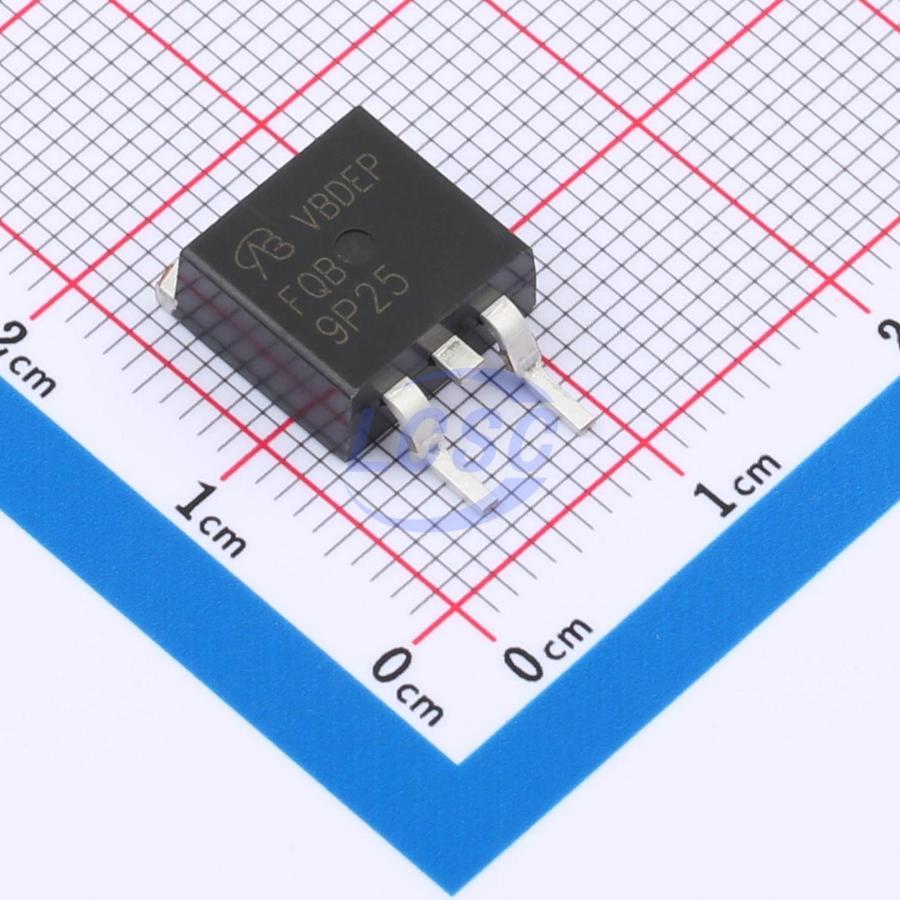

FQB9P25TM-VB
P-Channel 150V 20A 2.1W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET P-CH 150V 20A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FQB9P25TM-VB
- Store part #
- C22389293
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22389293
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹192.84 | ₹192.84 |
| 10+ | ₹159.43 | ₹1,594.30 |
| 50+ | ₹141.16 | ₹7,058.00 |
| 100+ | ₹120.37 | ₹12,037.00 |
| 500+ | ₹111.12 | ₹55,560.00 |
| 1,000+ | ₹107.14 | ₹1,07,140.00 |
1 × ₹192.84
₹192.84
excl. GST
₹227.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQB9P25TM-VB
₹192.84 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 330pF
- Ciss-Input Capacitance
- 2.5nF
- Pd - Power Dissipation
- 2.1W
- Configuration
- Standalone
- Drain to Source Voltage
- 150V
- Operating Temperature
- -55℃~+100℃
- Current - Continuous Drain(Id)
- 20A
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 150mΩ@10V;170mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.1 g
Overview
Applications
- Power Switch - Load Switch for High-Current Applications - DC/DC Converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with RoHS Directive 2002/95/EC
