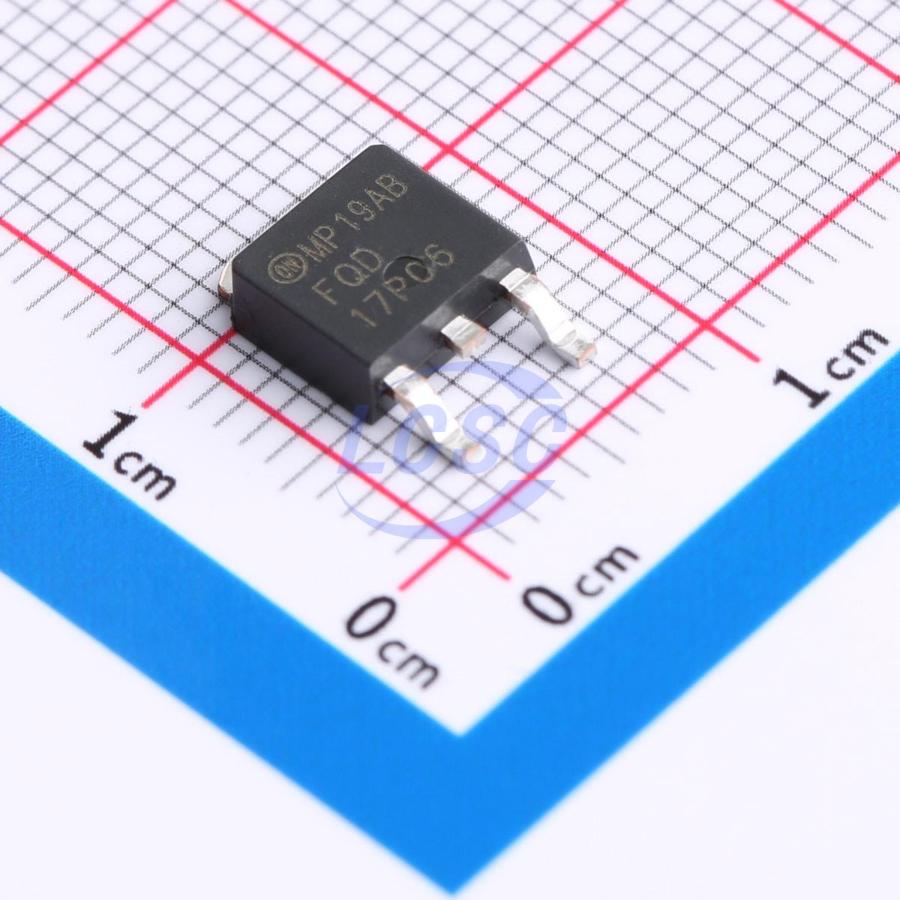

FQD17P06TM
P-Channel 60V 12A 44W Surface Mount DPAK
DPAKROHS3 CompliantActive
MOSFET P-CH 60V 12A DPAK
- Manufacturer
- onsemi
- Manufacturer part #
- FQD17P06TM
- Store part #
- C236915
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33 in stock
#C236915
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹132.99 | ₹132.99 |
| 10+ | ₹109.52 | ₹1,095.20 |
| 30+ | ₹98.01 | ₹2,940.30 |
| 100+ | ₹77.14 | ₹7,714.00 |
| 500+ | ₹70.20 | ₹35,100.00 |
| 1,000+ | ₹66.49 | ₹66,490.00 |
1 × ₹132.99
₹132.99
excl. GST
₹156.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FQD17P06TM
₹132.99 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 420pF
- Ciss-Input Capacitance
- 900pF
- Pd - Power Dissipation
- 44W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 12A
- Reverse Transfer Capacitance (Crss)
- 105pF
- RDS(on)
- 135mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 27nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.466 g
Overview
This P-Channel enhancement mode power MOSFET is produced using proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on-state resistance, and to provide superior switching performance and high avalanche energy strength. These devices are suitable for switched mode power supplies, audio amplifier, DC motor control, and variable switching power applications.
Applications
- Switched mode power supplies
- Audio amplifier
- DC motor control
- Variable switching power applications
Key features
- -12 A, -60 V, RDS(on)=135 mΩ (Max.) @ VGS=-10 V, ID=-6 A
- Low Gate Charge (Typ. 21 nC)
- Low Crss (Typ. 80 pF)
- 100% Avalanche Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LWS60110A4#C20630399Lewa Micro · TO-252 | Lewa Micro | TO-252 | 2,500 | ₹23.56 · 2,500 in stock | View |
 | SPD18P06PGBTMA1#C3279019Infineon · TO-252 | Infineon | TO-252 | 6 | ₹143.77 · 6 in stock | View |
 | FDD5614P#C236892onsemi · TO-252-2 | onsemi | TO-252-2 | 9,489 | ₹117.09 · 9,489 in stock | View |
 | NTD2955T4G#C10663onsemi · DPAK | onsemi | DPAK | 16,307 | ₹76.76 · 16,307 in stock | View |
 | KPD7115A#C49328617KIA Semicon Tech · TO-252 | KIA Semicon Tech | TO-252 | 65 | ₹53.12 · 65 in stock | View |
