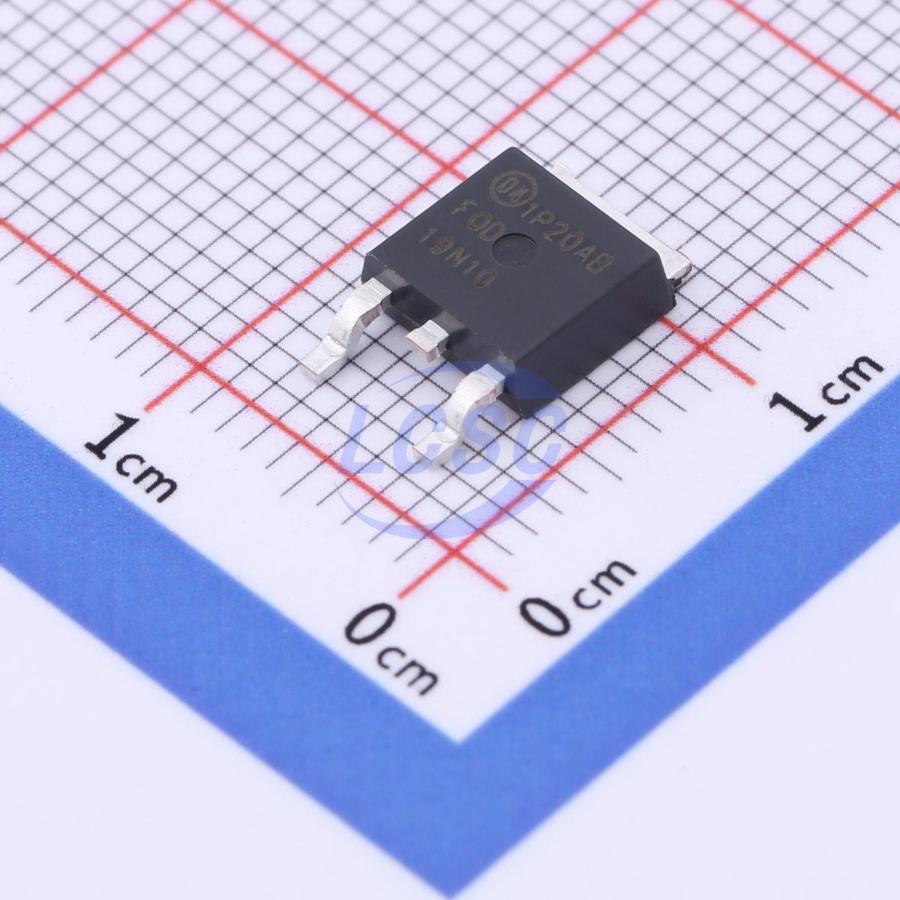

FQD19N10TM
N-Channel 100V 15.6A 50W Surface Mount DPAK
DPAKROHS3 CompliantActive
MOSFET N-CH 100V 15.6A DPAK
- Manufacturer
- onsemi
- Manufacturer part #
- FQD19N10TM
- Store part #
- C903729
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
580 in stock
#C903729
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹234.48 | ₹234.48 |
| 10+ | ₹201.88 | ₹2,018.80 |
| 30+ | ₹181.45 | ₹5,443.50 |
| 100+ | ₹160.37 | ₹16,037.00 |
| 500+ | ₹148.64 | ₹74,320.00 |
| 1,000+ | ₹144.51 | ₹1,44,510.00 |
1 × ₹234.48
₹234.48
excl. GST
₹276.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FQD19N10TM
₹234.48 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 165pF
- Ciss-Input Capacitance
- 780pF
- Pd - Power Dissipation
- 50W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 15.6A
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 78mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@80V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.41 g
Overview
This N-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor’s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on-state resistance, and to provide superior switching performance and high avalanche energy strength. These devices are suitable for switched mode power supplies, audio amplifier, DC motor control, and variable switching power applications.
Applications
- Switched mode power supplies
- Audio amplifier
- DC motor control
- Variable switching power applications
Key features
- 15.6 A, 100 V, RDS(on)=100 mΩ (Max.) @ VGS=10 V, ID=7.8 A
- Low Gate Charge (Typ. 19 nC)
- Low Crss (Typ. 32 pF)
- 100% Avalanche Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 19N10L-TN3-R#C127035UTC · TO-252 | UTC | TO-252 | 2,405 | ₹37.45 · 2,405 in stock | View |
 | FQD19N10LTM(UMW)#C18214391UMW · TO-252 | UMW | TO-252 | 920 | ₹22.91 · 920 in stock | View |
 | WSF40N10#C148435Winsok Semicon · TO-252-2(DPAK) | Winsok Semicon | TO-252-2(DPAK) | 925 | ₹57.09 · 925 in stock | View |
 | IPD33CN10NG#C536760Infineon · TO-252-3 | Infineon | TO-252-3 | 199 | ₹124.52 · 199 in stock | View |
 | NCE0224K#C341714NCE · TO-252 | NCE | TO-252 | 156 | ₹144.62 · 156 in stock | View |
