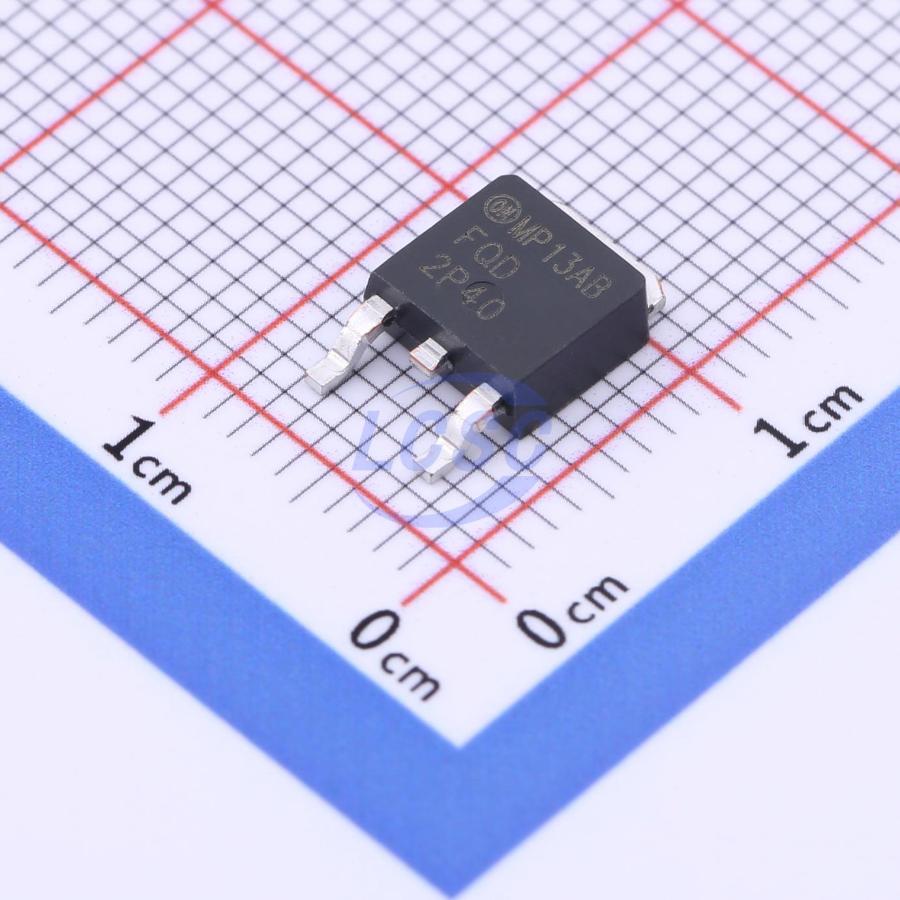

FQD2P40TM
P-Channel 400V 1.56A 2.5W Surface Mount TO-252AA
TO-252AAROHS3 CompliantActive
MOSFET P-CH 400V 1.56A TO-252AA
- Manufacturer
- onsemi
- Manufacturer part #
- FQD2P40TM
- Store part #
- C903731
- Package / case
- TO-252AA
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C903731
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.86 | ₹123.86 |
| 10+ | ₹100.40 | ₹1,004.00 |
| 30+ | ₹88.88 | ₹2,666.40 |
| 100+ | ₹77.14 | ₹7,714.00 |
| 500+ | ₹70.20 | ₹35,100.00 |
| 1,000+ | ₹66.72 | ₹66,720.00 |
1 × ₹123.86
₹123.86
excl. GST
₹146.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FQD2P40TM
₹123.86 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 45pF
- Ciss-Input Capacitance
- 350pF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 400V
- Current - Continuous Drain(Id)
- 1.56A
- Reverse Transfer Capacitance (Crss)
- 8.5pF
- RDS(on)
- 6.5Ω@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 13nC@320V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.38 g
Overview
This P-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor’s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on-state resistance, and to provide superior switching performance and high avalanche energy strength. These devices are suitable for switched mode power supplies, audio amplifier, DC motor control, and variable switching power applications.
Applications
- switched mode power supplies
- audio amplifier
- DC motor control
- variable switching power applications
Key features
- -1.56 A, -400 V, RDS(on)=6.5 Ω (Max.) VGS=-10 V, ID=-0.78 A
- Low Gate Charge (Typ. 10 nC)
- Low Crss (Typ. 6.5 pF)
- 100% Avalanche Tested
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFR9310TRLPBF#C727774VISHAY · DPAK | VISHAY | DPAK | 52 | ₹416.56 · 52 in stock | View |
 | 2P50G-TN3-R#C484516UTC · TO-252 | UTC | TO-252 | 60 | ₹33.37 · 60 in stock | View |
 | IRFR9310PBF-VB#C20755003VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 82 | ₹175.80 · 82 in stock | View |
 | CMD3P50A#C51793158Cmos · TO-252 | Cmos | TO-252 | 1,775 | ₹48.86 · 1,775 in stock | View |
 | FQD3P50TM#C246440onsemi · TO-252-2 | onsemi | TO-252-2 | 4,395 | ₹143.89 · 4,395 in stock | View |
