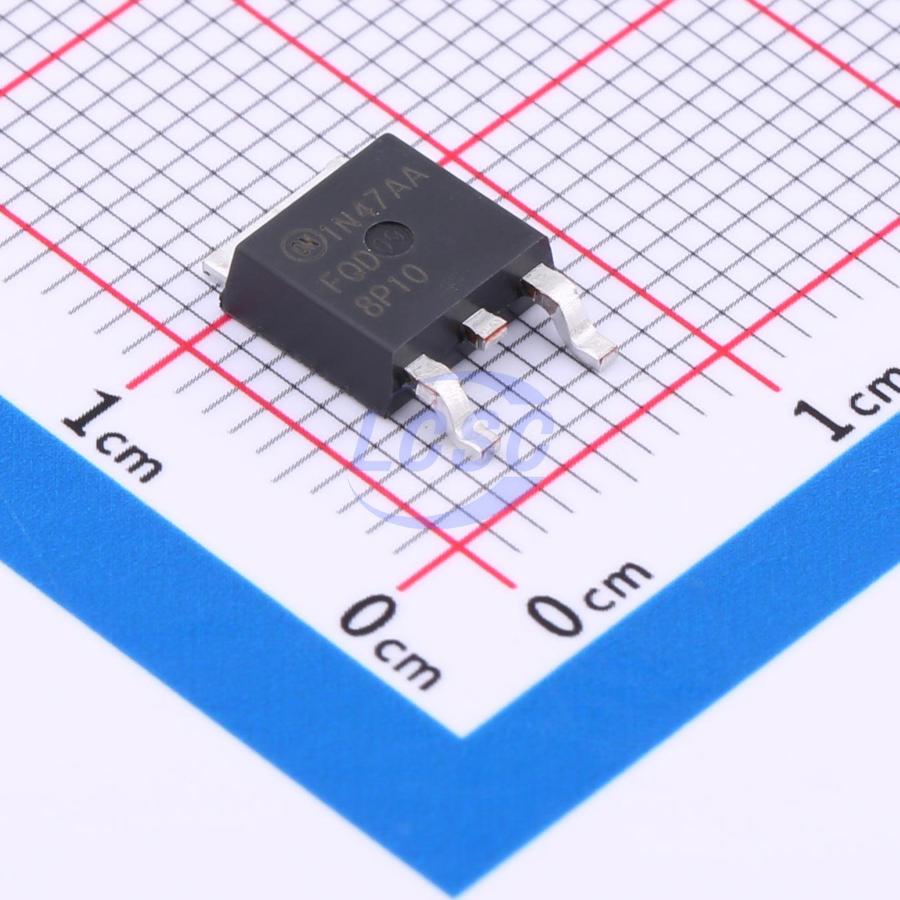

FQD8P10TM-F085
P-Channel 100V 6.6A 2.5W Surface Mount TO-252AA
TO-252AAROHS3 CompliantActive
MOSFET P-CH 100V 6.6A TO-252AA
- Manufacturer
- onsemi
- Manufacturer part #
- FQD8P10TM-F085
- Store part #
- C903743
- Package / case
- TO-252AA
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,086 in stock
#C903743
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹212.26 | ₹212.26 |
| 10+ | ₹177.93 | ₹1,779.30 |
| 30+ | ₹156.43 | ₹4,692.90 |
| 100+ | ₹134.27 | ₹13,427.00 |
| 500+ | ₹124.49 | ₹62,245.00 |
| 1,000+ | ₹120.14 | ₹1,20,140.00 |
1 × ₹212.26
₹212.26
excl. GST
₹250.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FQD8P10TM-F085
₹212.26 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 120pF
- Ciss-Input Capacitance
- 470pF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 6.6A
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 410mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 15nC@80V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.085 g
Overview
These P-Channel enhancement-mode power MOSFETs are manufactured using onsemi's proprietary planar stripe DMOS technology. This advanced technology has been especially designed to minimize on-resistance, provide superior switching performance, and withstand high energy pulses in both avalanche and commutation modes. These devices are well suited for low-voltage applications such as audio amplifiers, high-efficiency switched-mode DC/DC converters, and DC motor control.
Applications
- Audio amplifier - High-efficiency switching DC/DC converter - DC motor control
Key features
- 6.6A, -100V, RDS(on) = 0.53Ω (at VGS = -10V)
- Low gate charge (typical 12nC)
- Low Crss (typical 30pF)
- Fast switching
- 100% avalanche tested
- Improved dv/dt capability
- AEC Q101 compliant
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQD8P10TM#C241842onsemi · DPAK | onsemi | DPAK | 2,835 | ₹93.23 · 2,835 in stock | View |
 | IRFR9110TRPBF-VB#C18794950VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹75.62 · 10 in stock | View |
 | SPD15P10PGBTMA1-VB#C47993740VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 8 | ₹86.00 · 8 in stock | View |
 | AUIRFR5410-VB#C47993935VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹76.95 · 5 in stock | View |
 | IRFR9120TRPBF-VB#C5240564VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 15 | ₹83.75 · 15 in stock | View |
