VBsemi ElecDatasheet (PDF)

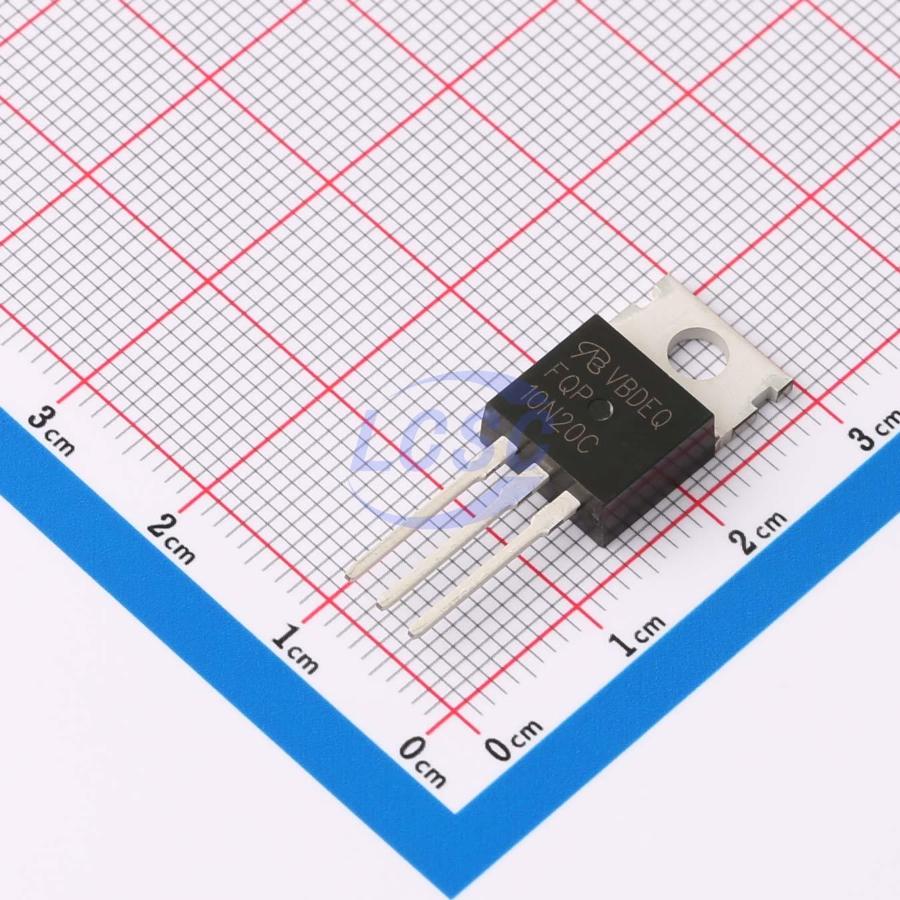

FQP10N20C-VB
N-Channel 200V 10A 121W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 200V 10A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FQP10N20C-VB
- Store part #
- C7428976
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C7428976
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.63 | ₹90.63 |
| 10+ | ₹74.26 | ₹742.60 |
| 50+ | ₹62.29 | ₹3,114.50 |
| 100+ | ₹54.10 | ₹5,410.00 |
| 500+ | ₹49.11 | ₹24,555.00 |
| 1,000+ | ₹46.72 | ₹46,720.00 |
1 × ₹90.63
₹90.63
excl. GST
₹106.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQP10N20C-VB
₹90.63 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 110pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 800pF
- Pd - Power Dissipation
- 121W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 270mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 30nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.709 g
Overview
Applications
- Primary Side Switch
Key features
- DT-Trench Power MOSFET
- 175 °C Junction Temperature
- PWM Optimized
- 100 % Rg Tested
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBZM630#C700718VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 80 | ₹88.03 · 80 in stock | View |
 | IRL620PBF-VB#C7524961VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 16 | ₹92.64 · 16 in stock | View |
 | FQP7N20-VB#C7494613VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 40 | ₹121.91 · 40 in stock | View |
 | PHP9NQ20T-VB#C18794954VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 18 | ₹92.64 · 18 in stock | View |
 | IRF630NPBF-VB#C19190152VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 3 | ₹120.39 · 3 in stock | View |
