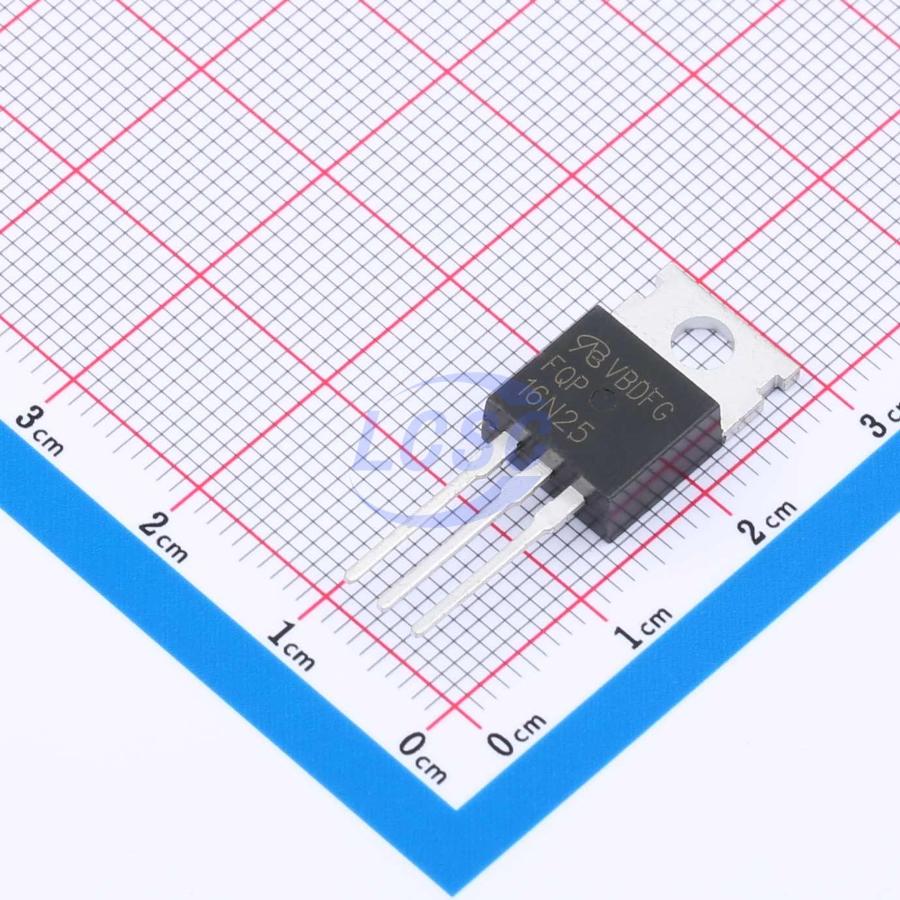

FQP16N25-VB
N-Channel 250V 8.5A 125W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 250V 8.5A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FQP16N25-VB
- Store part #
- C7494484
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7494484
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹156.31 | ₹156.31 |
| 10+ | ₹131.28 | ₹1,312.80 |
| 50+ | ₹95.79 | ₹4,789.50 |
| 100+ | ₹83.39 | ₹8,339.00 |
| 500+ | ₹75.98 | ₹37,990.00 |
| 1,000+ | ₹72.28 | ₹72,280.00 |
1 × ₹156.31
₹156.31
excl. GST
₹184.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQP16N25-VB
₹156.31 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 250V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 8.5A
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 85pF
- RDS(on)
- 190mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 68nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.04 g
Overview
Applications
- Load switch
- Power amplifier (PA) switch
- DC/DC converter
Key features
- Dynamic dV/dt rating
- Repetitive avalanche rated
- Fast switching
- Ease of paralleling
- Simple drive requirements
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CEPF634-VB#C7568988VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹128.56 · 20 in stock | View |
 | IRF644PBF-VB#C7569015VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 2 | ₹128.56 · 2 in stock | View |
 | MTP10N25-VB#C7569037VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 40 | ₹127.78 · 40 in stock | View |
 | IRF644NPBF-VB#C7568806VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 2 | ₹131.49 · 2 in stock | View |
 | 2SK1221-VB#C19190123VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 14 | ₹122.56 · 14 in stock | View |
