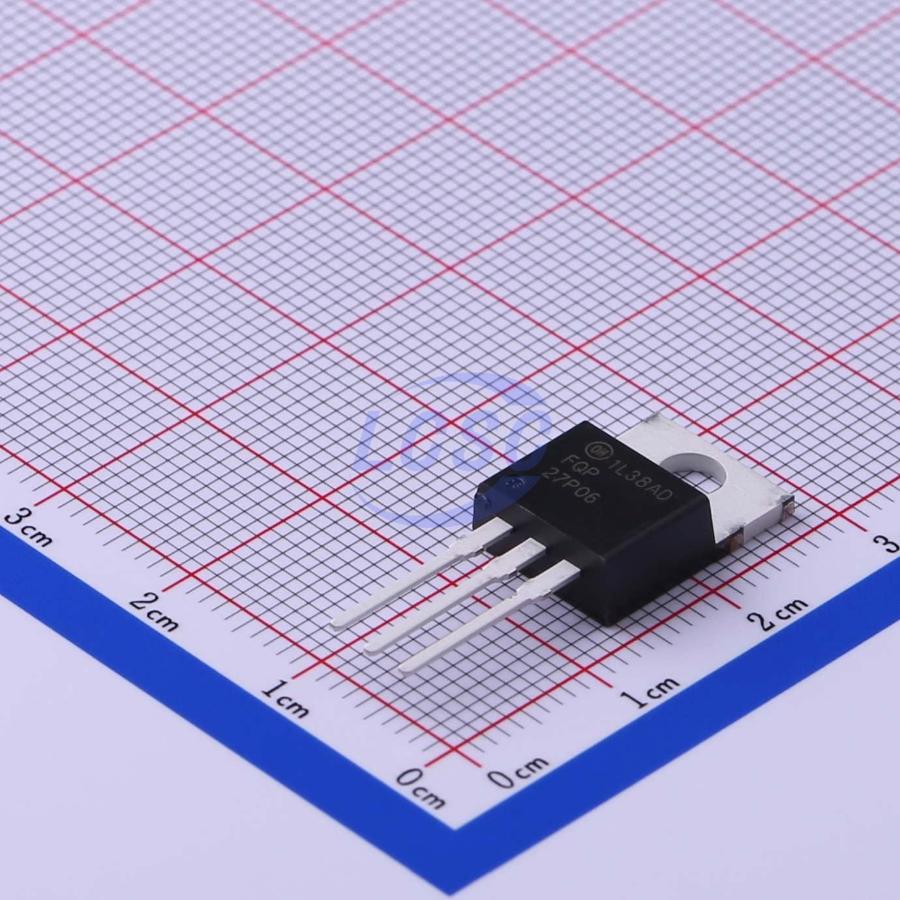

FQP27P06
120W 60V 27A 70mΩ@10V 1 P-Channel P-Channel TO-220 Single FETs, MOSFETs RoHS
TO-220ROHS3 CompliantActive
MOSFET P-CH 60V 27A TO-220
- Manufacturer
- onsemi
- Manufacturer part #
- FQP27P06
- Store part #
- C462764
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31 in stock
#C462764
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹389.45 | ₹389.45 |
| 10+ | ₹327.91 | ₹3,279.10 |
| 50+ | ₹289.42 | ₹14,471.00 |
| 100+ | ₹250.06 | ₹25,006.00 |
| 500+ | ₹232.24 | ₹1,16,120.00 |
| 1,000+ | ₹224.62 | ₹2,24,620.00 |
1 × ₹389.45
₹389.45
excl. GST
₹459.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQP27P06
₹389.45 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 510pF
- Ciss-Input Capacitance
- 1.4nF
- Pd - Power Dissipation
- 120W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 27A
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 70mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 43nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.735 g
Overview
This P-channel enhancement-mode power MOSFET is fabricated using a proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on-state resistance, and to provide superior switching performance and high avalanche energy strength. These devices are suitable for switch mode power supplies, audio amplifiers, DC motor controls, and variable switching power supply applications.
Applications
- Switch-mode power supplies
- Audio amplifiers
- DC motor control
- Variable switching power supply applications
Key features
- -27 A, -60 V, RDS(on) = 70 mΩ (max) @ VGS = -10 V, ID = -13.5 A
- Low gate charge (typical 33 nC)
- Low Crss (typical 120 pF)
- 100% avalanche tested
- Maximum junction temperature rating 175°C
