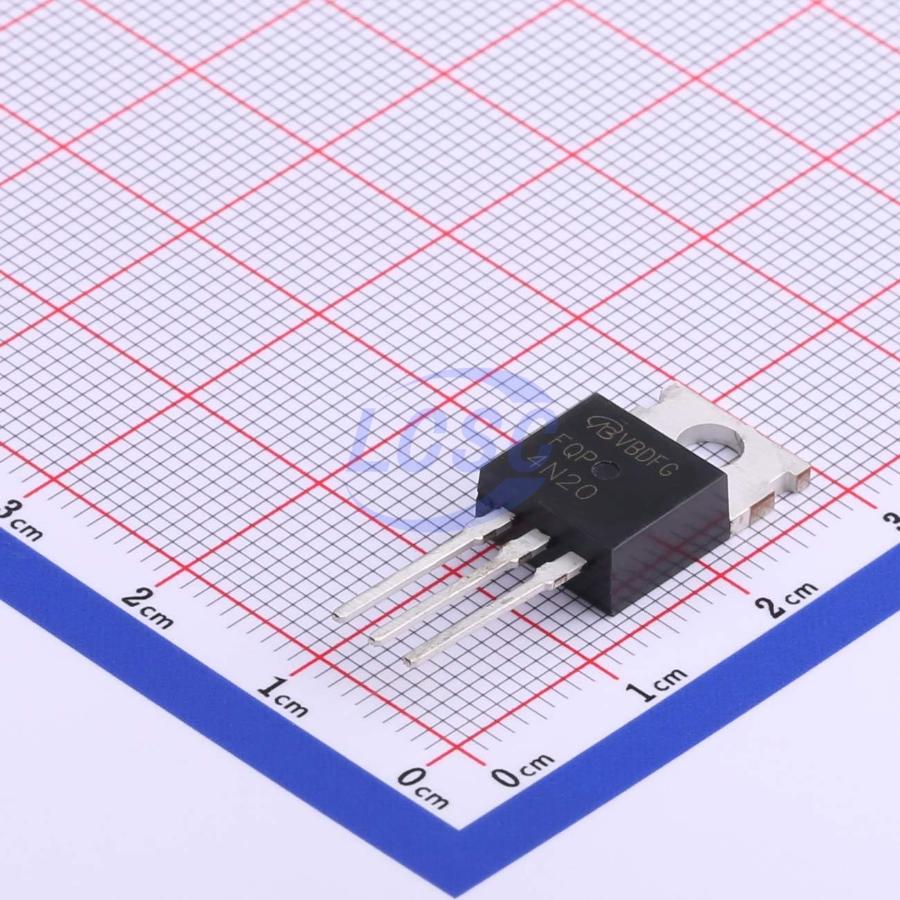

FQP4N20-VB
N-Channel 200V 35A 300W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 200V 35A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FQP4N20-VB
- Store part #
- C878834
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
62 in stock
#C878834
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.19 | ₹85.19 |
| 10+ | ₹69.11 | ₹691.10 |
| 50+ | ₹52.15 | ₹2,607.50 |
| 100+ | ₹43.46 | ₹4,346.00 |
| 500+ | ₹39.56 | ₹19,780.00 |
| 1,000+ | ₹37.39 | ₹37,390.00 |
1 × ₹85.19
₹85.19
excl. GST
₹100.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQP4N20-VB
₹85.19 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 200pF
- Current - Continuous Drain(Id)
- 35A
- Ciss-Input Capacitance
- 2.69nF
- Pd - Power Dissipation
- 300W
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 58mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 95nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.71 g
Overview
Applications
- Industrial
- N-Channel MOSFET
Key features
- Trench power MOSFET
- 175°C junction temperature
- New low thermal resistance package
- RoHS compliant (Directive 2002/95/EC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 30NF20 TO220-VB#C19188128VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 16 | ₹227.07 · 16 in stock | View |
 | PHP33NQ20T-VB#C20755103VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 50 | ₹253.18 · 50 in stock | View |
 | IRFB4620PBF-VB#C22389623VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 2 | ₹211.94 · 2 in stock | View |
 | IRFB31N20DPBF-VB#C5179503VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 8 | ₹293.68 · 8 in stock | View |
 | STP30NF20-VB#C558291VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 6 | ₹207.59 · 6 in stock | View |
