HXY MOSFETDatasheet (PDF)

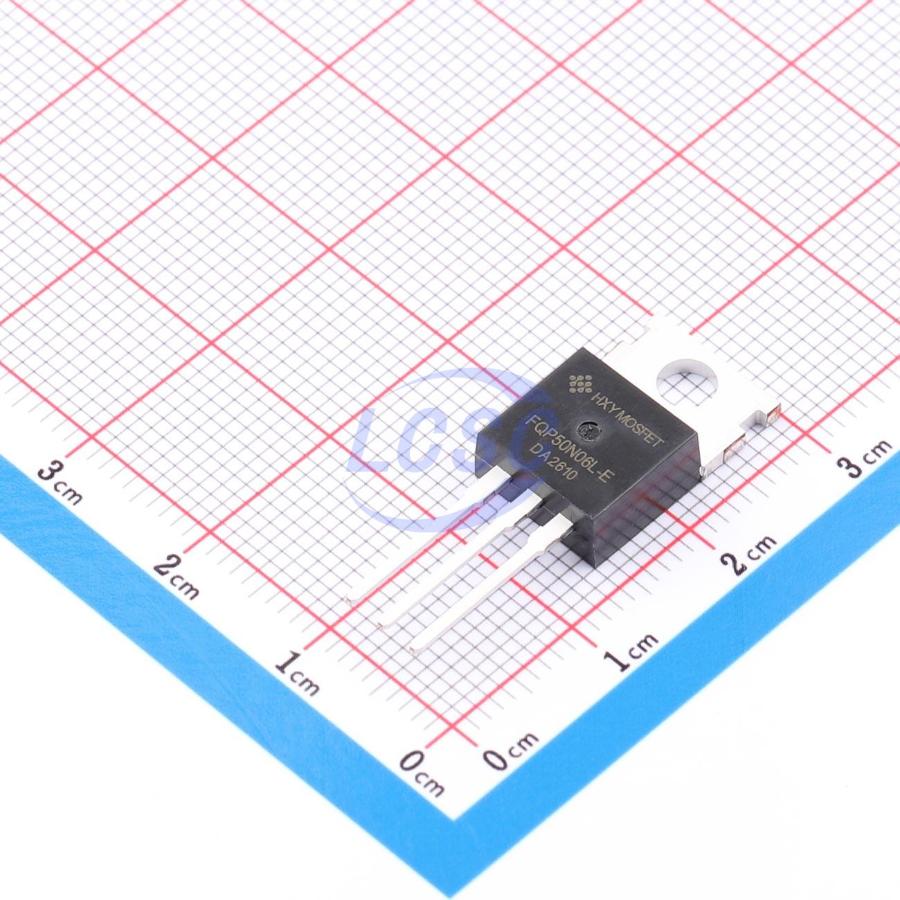

FQP50N06L-EPKE0003-HXY
60V 60A 120W 12mΩ@10V 1 N-channel N-Channel TO-220C Single FETs, MOSFETs
TO-220CRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- FQP50N06L-EPKE0003-HXY
- Store part #
- C54582530
- Package / case
- TO-220C
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C54582530
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.28 | ₹231.40 |
| 50+ | ₹37.07 | ₹1,853.50 |
| 150+ | ₹33.11 | ₹4,966.50 |
| 500+ | ₹25.45 | ₹12,725.00 |
| 2,000+ | ₹23.26 | ₹46,520.00 |
| 5,000+ | ₹21.94 | ₹1,09,700.00 |
5 × ₹46.28
₹231.40
excl. GST
₹273.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQP50N06L-EPKE0003-HXY
₹231.40 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 430pF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 4.05nF
- Pd - Power Dissipation
- 120W
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 12mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 39nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.984 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLZ44NPBF-HXY#C22367197HXY MOSFET · TO-220 | HXY MOSFET | TO-220 | 5,310 | ₹60.53 · 5,310 in stock | View |
 | HIRFZ44NPBF#C41381868HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 135 | ₹40.60 · 135 in stock | View |
 | NDP6060L-HXY#C54582432HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 128 | ₹30.57 · 128 in stock | View |
 | FDP5680-HXY#C54582496HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 19 | ₹325.37 · 19 in stock | View |
 | AOT2618L#C54582501HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 50 | ₹93.46 · 50 in stock | View |
