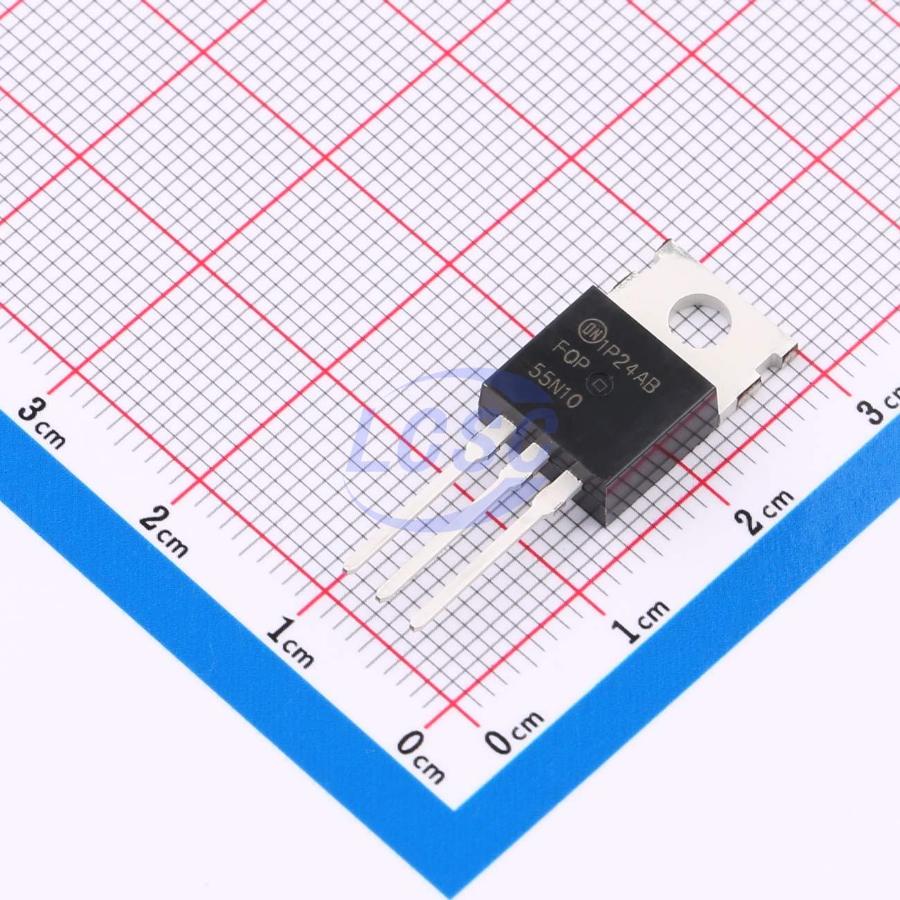

FQP55N10
N-Channel 100V 55A 155W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 100V 55A TO-220
- Manufacturer
- onsemi
- Manufacturer part #
- FQP55N10
- Store part #
- C899378
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
116 in stock
#C899378
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹338.79 | ₹338.79 |
| 10+ | ₹291.91 | ₹2,919.10 |
| 50+ | ₹219.53 | ₹10,976.50 |
| 100+ | ₹189.28 | ₹18,928.00 |
| 500+ | ₹175.88 | ₹87,940.00 |
| 1,000+ | ₹169.83 | ₹1,69,830.00 |
1 × ₹338.79
₹338.79
excl. GST
₹399.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQP55N10
₹338.79 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 640pF
- Ciss-Input Capacitance
- 2.73nF
- Pd - Power Dissipation
- 155W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 55A
- Reverse Transfer Capacitance (Crss)
- 170pF
- RDS(on)
- 26mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 98nC
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.8 g
Overview
This N-channel enhancement-mode power MOSFET is fabricated using a proprietary planar stripe and DMOS technology. This advanced MOSFET technology is specifically designed to minimize on-resistance while providing superior switching performance and high avalanche energy ruggedness. These devices are suitable for switch-mode power supplies, audio amplifiers, DC motor control, and variable switching power supply applications.
Applications
- Switching mode power supplies
- Audio amplifiers
- DC motor control
- Variable switching power supply applications
Key features
- 55 A, 100 V, RDS(on) = 26 mΩ (max) @ VGS = 10 V, ID = 27.5 A
- Low gate charge (typical 75 nC)
- Low Crss (typical 130 pF)
- 100% avalanche tested
- Maximum junction temperature rating 175°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP3710TQ#C49257258Siliup · TO-220-3L | Siliup | TO-220-3L | 90 | ₹86.22 · 90 in stock | View |
 | HY1710P#C358114HUAYI · TO-220FB | HUAYI | TO-220FB | 224 | ₹64.72 · 224 in stock | View |
 | IRF3710ZPBF#C459965Infineon · TO-220AB-3 | Infineon | TO-220AB-3 | 5 | ₹191.72 · 5 in stock | View |
 | MPG4227#C6719385Minos · TO-220 | Minos | TO-220 | 70 | ₹156.25 · 70 in stock | View |
 | NTP6412ANG#C604474onsemi · TO-220AB | onsemi | TO-220AB | 10 | ₹576.75 · 10 in stock | View |
