VBsemi ElecDatasheet (PDF)

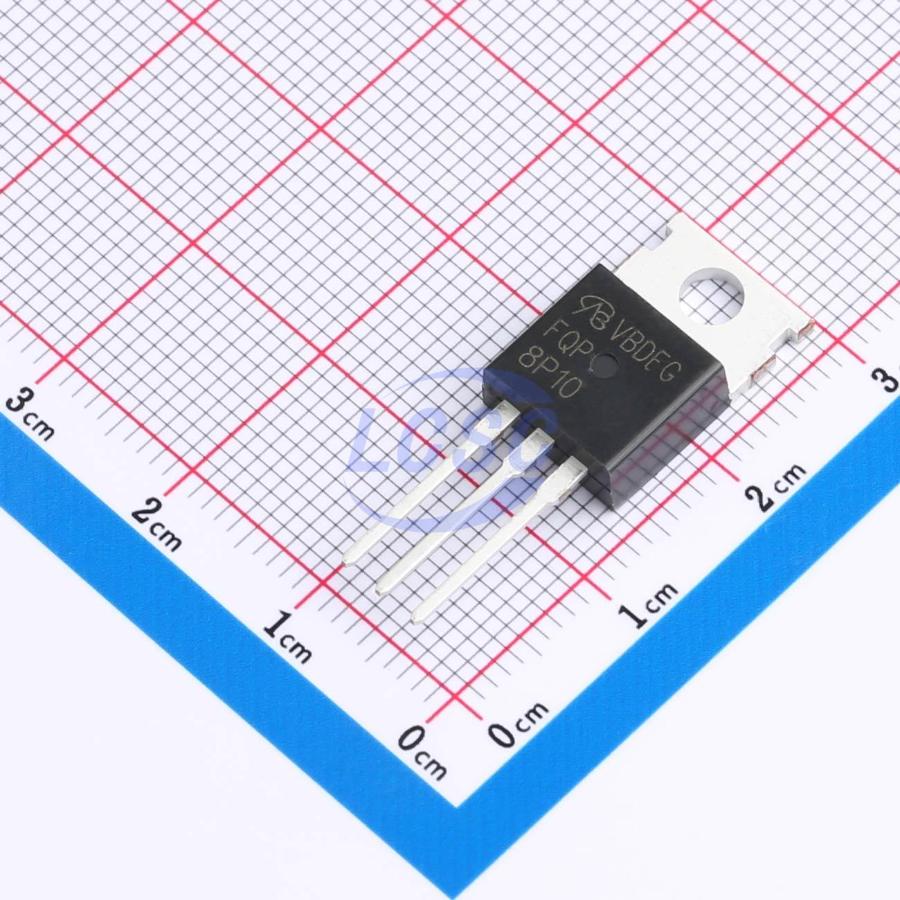

FQP8P10-VB
P-Channel 100V 18A 1.1W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET P-CH 100V 18A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FQP8P10-VB
- Store part #
- C45662525
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C45662525
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.62 | ₹98.62 |
| 10+ | ₹82.08 | ₹820.80 |
| 50+ | ₹73.59 | ₹3,679.50 |
| 100+ | ₹65.32 | ₹6,532.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹98.62
₹98.62
excl. GST
₹116.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQP8P10-VB
₹98.62 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 18A
- Output Capacitance(Coss)
- 330pF
- Ciss-Input Capacitance
- 1.46nF
- Pd - Power Dissipation
- 1.1W
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 178mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 100nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.26 g
Overview
Applications
- Power switch
- Load switch for high-current applications
- DC/DC converter
Key features
- Halogen-free per IEC 61249-2-21
- TrenchFET power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF9530PBF-BE3-VB#C47993802VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 8 | ₹98.88 · 8 in stock | View |
 | IRF9542-VB#C47993924VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹94.96 · 10 in stock | View |
 | RFM6P10-VB#C47993976VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹112.12 · 10 in stock | View |
 | IRF9532PBF-VB#C19711296VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹82.56 · 10 in stock | View |
 | SPP15P10PH-VB#C22389090VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 4 | ₹82.56 · 4 in stock | View |
