onsemiDatasheet (PDF)

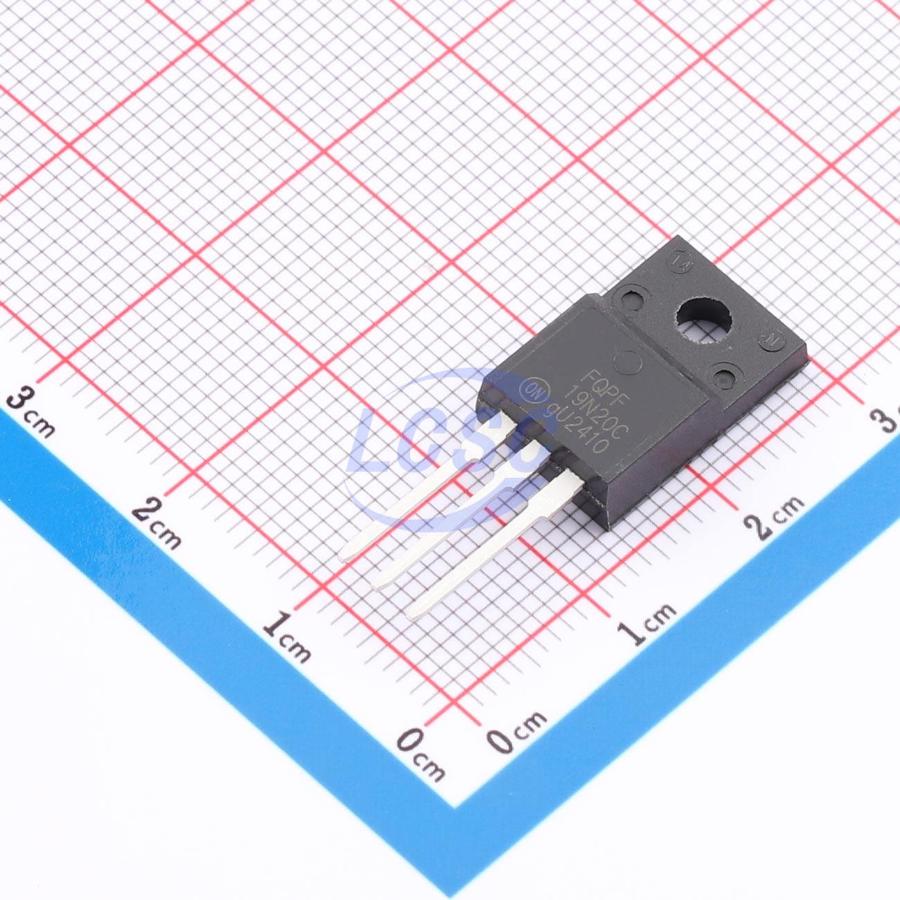

FQPF19N20C
43W 200V 19A 170mΩ@10V 1 N-channel N-Channel TO-220F-3 Single FETs, MOSFETs RoHS
TO-220F-3ROHS3 CompliantActive
N-Channel, Current: 19A, Voltage: 200V
- Manufacturer
- onsemi
- Manufacturer part #
- FQPF19N20C
- Store part #
- C243105
- Package / case
- TO-220F-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
997 in stock
#C243105
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹198.61 | ₹198.61 |
| 10+ | ₹163.27 | ₹1,632.70 |
| 50+ | ₹143.97 | ₹7,198.50 |
| 100+ | ₹122.07 | ₹12,207.00 |
| 500+ | ₹112.32 | ₹56,160.00 |
| 1,000+ | ₹107.98 | ₹1,07,980.00 |
1 × ₹198.61
₹198.61
excl. GST
₹234.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQPF19N20C
₹198.61 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 255pF
- Ciss-Input Capacitance
- 1.08nF
- Pd - Power Dissipation
- 43W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 19A
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 170mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 53nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.066 g
Overview
This N-channel enhancement-mode power MOSFET is fabricated using proprietary planar stripe and DMOS technology. This advanced MOSFET technology is specifically designed to minimize on-resistance while delivering superior switching performance and high avalanche energy ruggedness. These devices are suitable for switch-mode power supplies, active power factor correction (PFC), and electronic lamp ballasts.
Applications
- Switch-mode power supplies
- Active power factor correction (PFC)
- Electronic lamp ballasts
Key features
- 19 A, 200 V, R DS(on) = 170 mΩ (max) at V GS = 10 V, I D = 9.5 A
- Low gate charge (typ. 40.5 nC)
- Low C rss (typ. 85 pF)
- 100% avalanche tested
