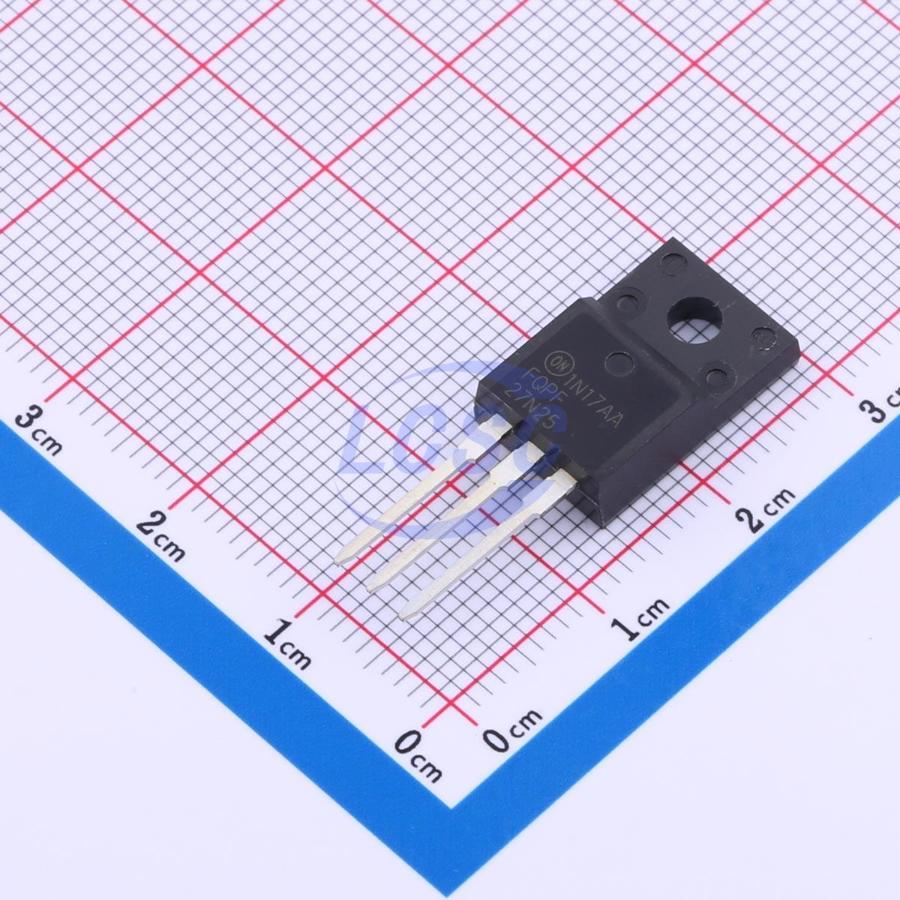

FQPF27N25
N-Channel 250V 14A 55W Through Hole TO-220F
TO-220FROHS3 CompliantActive
MOSFET N-CH 250V 14A TO-220F
- Manufacturer
- onsemi
- Manufacturer part #
- FQPF27N25
- Store part #
- C463029
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32 in stock
#C463029
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹360.49 | ₹360.49 |
| 10+ | ₹308.03 | ₹3,080.30 |
| 50+ | ₹275.38 | ₹13,769.00 |
| 100+ | ₹241.63 | ₹24,163.00 |
| 500+ | ₹226.62 | ₹1,13,310.00 |
| 1,000+ | ₹219.87 | ₹2,19,870.00 |
1 × ₹360.49
₹360.49
excl. GST
₹425.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQPF27N25
₹360.49 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 360pF
- Ciss-Input Capacitance
- 2.45nF
- Pd - Power Dissipation
- 55W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 250V
- Current - Continuous Drain(Id)
- 14A
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 110mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 65nC@200V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.06 g
Overview
This N-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor’s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on-state resistance, and to provide superior switching performance and high avalanche energy strength. These devices are suitable for switched mode power supplies, active power factor correction (PFC), and electronic lamp ballasts.
Applications
- Switched mode power supplies
- Active power factor correction (PFC)
- Electronic lamp ballasts
Key features
- 14 A, 250 V , RDS(on)=110 mΩ (Max.) @ ID=7 A
- Low Gate Charge (Typ. 50 nC)
- Low Crss (Typ. 45 pF)
- 100% Avalanche Tested
