VBsemi ElecDatasheet (PDF)

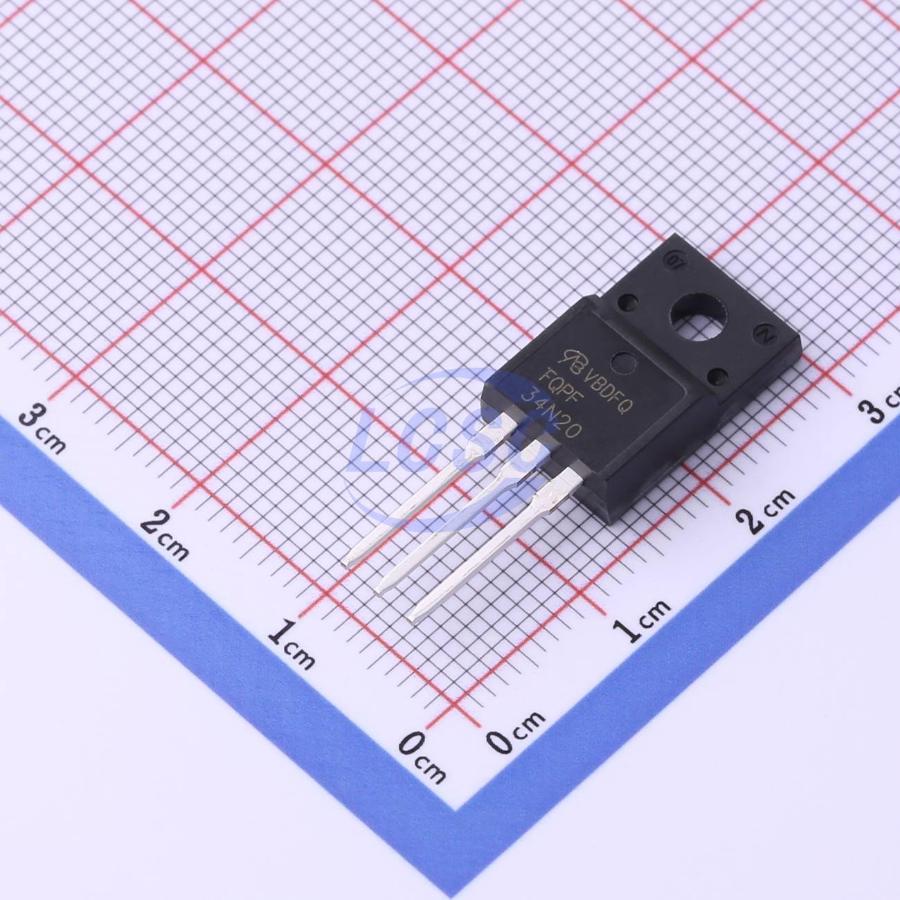

FQPF34N20-VB
N-Channel 200V 20A 42W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 200V 20A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FQPF34N20-VB
- Store part #
- C4355067
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C4355067
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹220.97 | ₹220.97 |
| 10+ | ₹188.50 | ₹1,885.00 |
| 50+ | ₹168.19 | ₹8,409.50 |
| 100+ | ₹147.25 | ₹14,725.00 |
| 500+ | ₹137.82 | ₹68,910.00 |
| 1,000+ | ₹133.85 | ₹1,33,850.00 |
1 × ₹220.97
₹220.97
excl. GST
₹260.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQPF34N20-VB
₹220.97 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 42W
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 58mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.44 g
Overview
Key features
- Halogen-free According to IEC 61249-2- Definition
- Surface Mount
- Low-Profile Through-Hole
- Available in Tape and Reel
- Dynamic dV/dt Rating
- 150 °C Operating Temperature
- Fast Switching
- Fully Avalanche Rated
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK3603-01MR-VB#C19632078VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 32 | ₹264.02 · 32 in stock | View |
 | 2SK3871-01MR-VB#C19632238VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 12 | ₹211.94 · 12 in stock | View |
 | 2SK3157-VB#C20417705VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 1 | ₹211.94 · 1 in stock | View |
 | 2SK2013-VB#C29778762VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 6 | ₹253.18 · 6 in stock | View |
 | 2SK3537-01MR-VB#C19188273VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 20 | ₹224.21 · 20 in stock | View |
