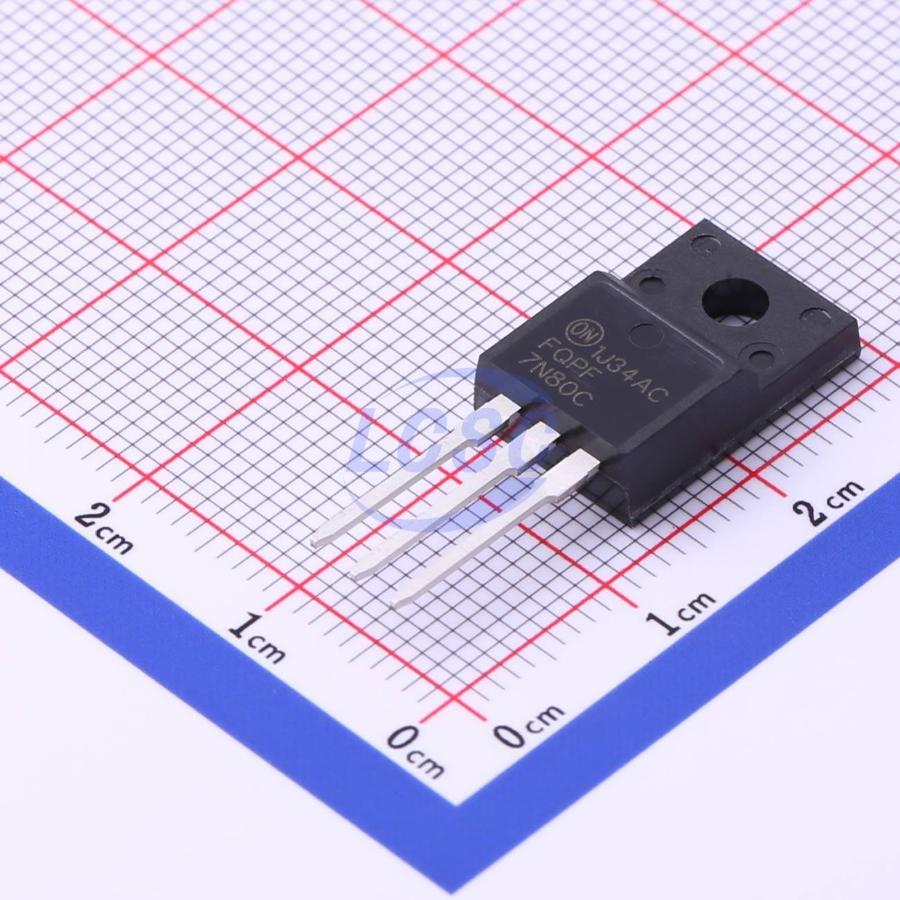

FQPF7N80C
N-Channel 800V 6.6A 56W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 800V 6.6A TO-220F
- Manufacturer
- onsemi
- Manufacturer part #
- FQPF7N80C
- Store part #
- C467788
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C467788
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹226.71 | ₹226.71 |
| 10+ | ₹191.86 | ₹1,918.60 |
| 50+ | ₹159.42 | ₹7,971.00 |
| 100+ | ₹137.21 | ₹13,721.00 |
| 500+ | ₹127.19 | ₹63,595.00 |
| 1,000+ | ₹122.62 | ₹1,22,620.00 |
1 × ₹226.71
₹226.71
excl. GST
₹267.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQPF7N80C
₹226.71 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Current - Continuous Drain(Id)
- 6.6A
- Ciss-Input Capacitance
- 1.68nF
- Pd - Power Dissipation
- 56W
- Reverse Transfer Capacitance (Crss)
- 13pF
- RDS(on)
- 1.9Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@640V
- Gate Threshold Voltage (Vgs(th))
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.6 g
Overview
This N-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor’s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on-state resistance, and to provide superior switching performance and high avalanche energy strength. These devices are suitable for switched mode power supplies, active power factor correction (PFC), and electronic lamp ballasts.
Applications
- switched mode power supplies
- active power factor correction (PFC)
- electronic lamp ballasts
Key features
- This N-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor’s proprietary planar stripe and DMOS technology.
- This advanced MOSFET technology has been especially tailored to reduce on-state resistance, and to provide superior switching performance and high avalanche energy strength.
- 6.6 A, 800 V, RDS(on)=1.9 Ω (Max.) @ VGS = 10 V, ID = 3.3 A
- Low Gate Charge (Typ. 27 nC)
- Low Crss (Typ. 10 pF)
- 100% Avalanche Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TSF7N80M#C382383Truesemi · TO-220F | Truesemi | TO-220F | 22 | ₹92.74 · 22 in stock | View |
 | CMF7N80A#C52976741Cmos · TO-220F | Cmos | TO-220F | 134 | ₹80.12 · 134 in stock | View |
 | TK6A80E-OSEN#C50331597OSEN · TO-220F | OSEN | TO-220F | 100 | ₹72.58 · 100 in stock | View |
 | AOTF8N80#C3280811AOS · TO-220F | AOS | TO-220F | 100 | ₹348.08 · 100 in stock | View |
 | 10N80L-CQ-TF1-T#C2935500UTC · TO-220F1 | UTC | TO-220F1 | 126 | ₹91.63 · 126 in stock | View |
