VBsemi ElecDatasheet (PDF)

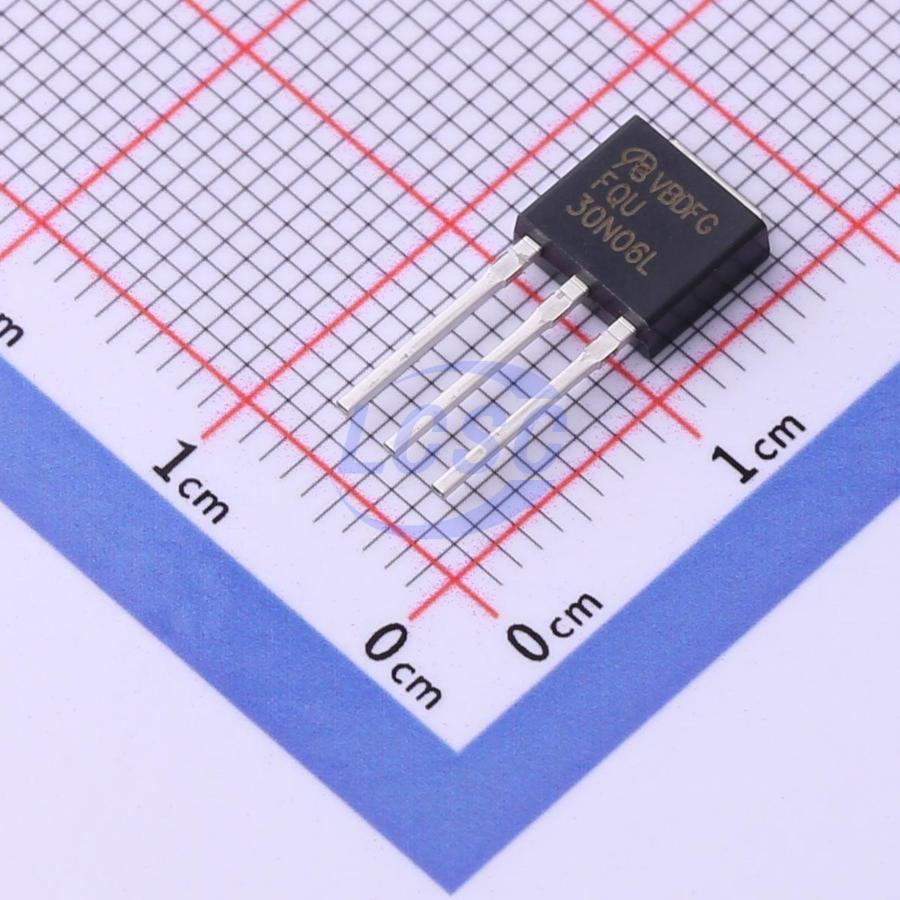

FQU30N06L-VB
N-Channel 60V 35A 59.5W Through Hole TO-251
TO-251RoHSActive
MOSFET N-CH 60V 35A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FQU30N06L-VB
- Store part #
- C3040304
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C3040304
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.81 | ₹59.81 |
| 10+ | ₹47.07 | ₹470.70 |
| 30+ | ₹41.46 | ₹1,243.80 |
| 80+ | ₹34.77 | ₹2,781.60 |
| 480+ | ₹31.53 | ₹15,134.40 |
| 800+ | ₹29.79 | ₹23,832.00 |
1 × ₹59.81
₹59.81
excl. GST
₹70.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
FQU30N06L-VB
₹59.81 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 281pF
- Current - Continuous Drain(Id)
- 35A
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 59.5W
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 32mΩ@10V;37mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 46nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.6 g
Overview
Applications
- Power Supply
- Secondary Synchronous Rectification
- DC/DC Converter
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
