VBsemi ElecDatasheet (PDF)

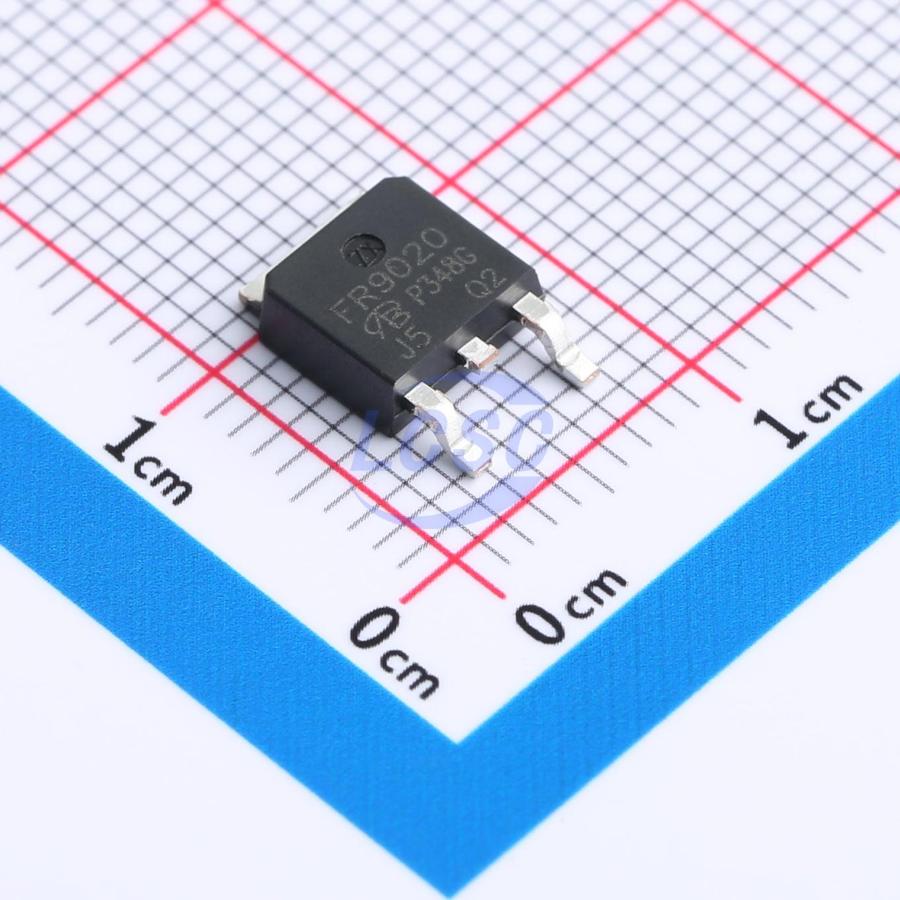

FR9020-VB
P-Channel 60V 30A Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 60V 30A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FR9020-VB
- Store part #
- C20417520
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C20417520
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.35 | ₹90.35 |
| 10+ | ₹75.11 | ₹751.10 |
| 30+ | ₹67.49 | ₹2,024.70 |
| 100+ | ₹59.87 | ₹5,987.00 |
| 500+ | ₹46.60 | ₹23,300.00 |
| 1,000+ | ₹44.20 | ₹44,200.00 |
1 × ₹90.35
₹90.35
excl. GST
₹106.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FR9020-VB
₹90.35 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 120pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1nF
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 61mΩ@10V;72mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Applications
- Load Switch
Key features
- Trench power MOSFET
- 100% unclamped inductive switching (UIS) tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | T20P06LG-VB#C18795014VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 8 | ₹92.15 · 8 in stock | View |
 | TJ8S06M3L-VB#C19188120VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 38 | ₹96.01 · 38 in stock | View |
 | SUD10P06-280L-E3-VB#C19188121VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 48 | ₹92.15 · 48 in stock | View |
 | 2SJ527STR-E-VB#C19632076VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 24 | ₹79.49 · 24 in stock | View |
 | ZXMP7A17KTC-VB#C19632202VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹79.49 · 50 in stock | View |
