FITIPOWERDatasheet (PDF)

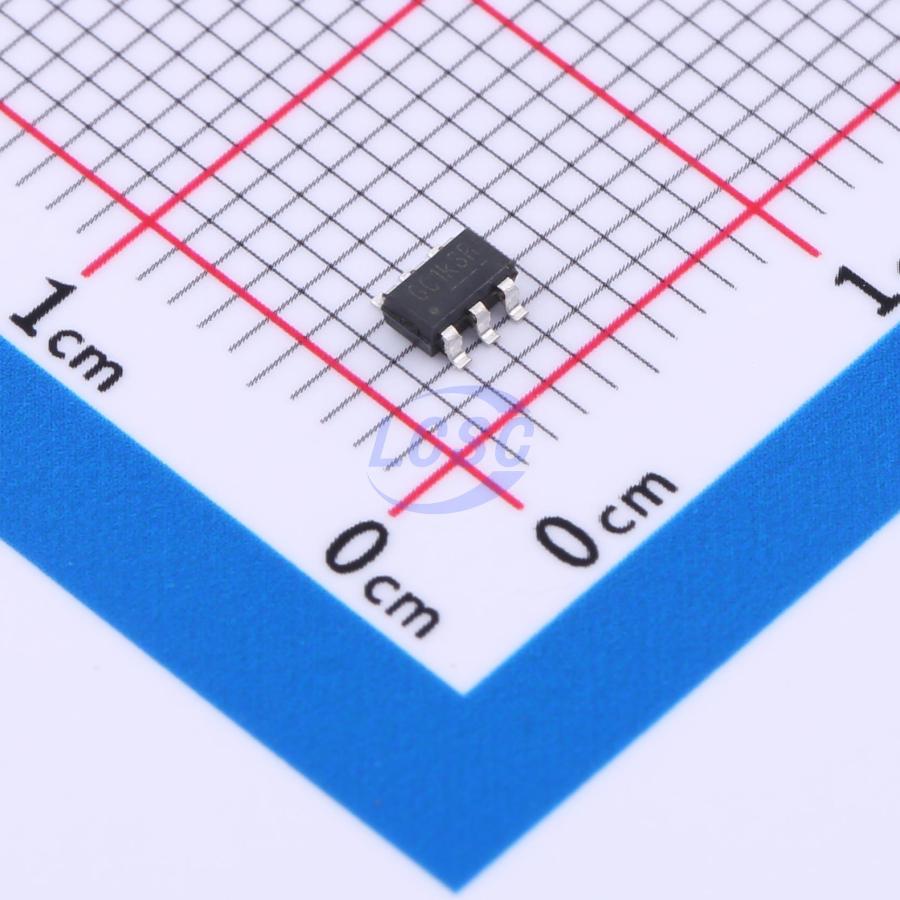

FR9205S6
Step-down type 850kHz Adjustable 765mV~8V 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
18V Input, 2A Output Synchronous Step-Down DC/DC Converter
- Manufacturer
- FITIPOWER
- Manufacturer part #
- FR9205S6
- Store part #
- C5162515
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,560 in stock
#C5162515
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.01 | ₹90.10 |
| 100+ | ₹7.12 | ₹712.00 |
| 300+ | ₹6.18 | ₹1,854.00 |
| 3,000+ | ₹5.24 | ₹15,720.00 |
| 6,000+ | ₹4.68 | ₹28,080.00 |
| 9,000+ | ₹4.39 | ₹39,510.00 |
10 × ₹9.01
₹90.10
excl. GST
₹106.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FR9205S6
₹90.10 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 850kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 765mV~8V
- Output Current
- 2A
- Quiescent Current
- 250uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The FR9205 is a synchronous step-down DC/DC converter with fast constant on time (FCOT) mode control. It has integrated high-side (145mΩ, typ) and low-side (90mΩ, typ) power switches, and provides 2A continuous load current. It regulates input voltage from 4.5V to 18V, and down to an output voltage as low as 0.765V. Using FCOT control scheme provides fast transient response, which can minimize the component size without additional external compensation network.
Applications
- STB (Set-Top-Box)
- LCD Display, TV
- Distributed Power System
- Networking, XDSL Modem
Key features
- Low RDS(ON) Integrated Power MOSFET (145mΩ/90mΩ)
- Wide Input Voltage Range: 4.5V to 18V
- Output Voltage Range: 0.765V to 8V
- 2A Output Current
- FCOT Mode Enables Fast Transient Response
- Pseudo 850kHz Frequency Input
- Under Voltage Lockout
- Internal 1.5ms Soft-Start
- Cycle-by-Cycle Current Limit
- Hiccup Short Circuit Protection
- Over Temperature Protection with Auto Recovery
- SOT-23-6 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FR9206S9#C5156534FITIPOWER · TSOT-23-6 | FITIPOWER | TSOT-23-6 | 1,980 | ₹16.21 · 1,980 in stock | View |
 | EA9206#C2935471Everanalog IC design · TSOT-23-6 | Everanalog IC design | TSOT-23-6 | 3,925 | ₹18.11 · 3,925 in stock | View |
 | RT6264BHGJ6F#C7065278RICHTEK · TSOT-23-6 | RICHTEK | TSOT-23-6 | 96 | ₹36.53 · 96 in stock | View |
 | TPS562209DDCT#C130068TI · SOT-23-6 | TI | SOT-23-6 | 140 | ₹30.44 · 140 in stock | View |
 | TPS562209DDCR#C411814TI · SOT-23-THIN-6 | TI | SOT-23-THIN-6 | 11,170 | ₹37.27 · 11,170 in stock | View |
