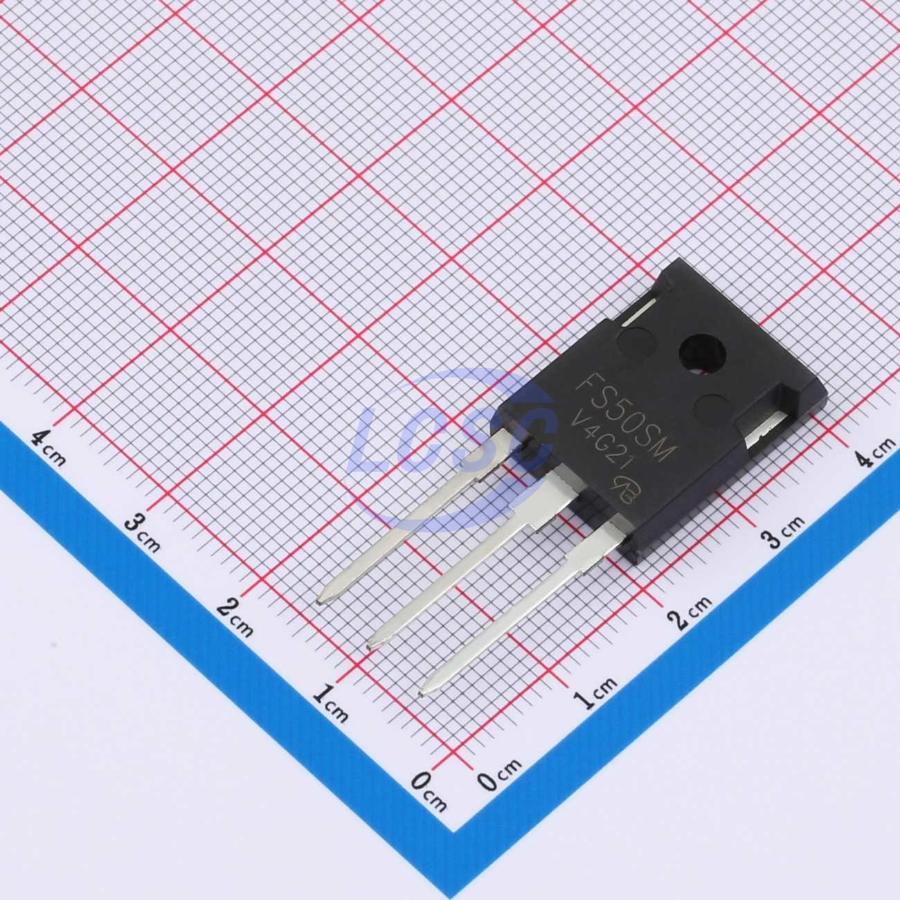

FS50SM-06-VB
N-Channel 60V 150A 175W Through Hole TO-247AC
TO-247ACRoHSActive
MOSFET N-CH 60V 150A TO-247AC
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FS50SM-06-VB
- Store part #
- C29779347
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C29779347
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹362.98 | ₹362.98 |
| 10+ | ₹307.11 | ₹3,071.10 |
| 30+ | ₹272.23 | ₹8,166.90 |
| 90+ | ₹236.53 | ₹21,287.70 |
| 510+ | ₹220.35 | ₹1,12,378.50 |
| 990+ | ₹213.21 | ₹2,11,077.90 |
1 × ₹362.98
₹362.98
excl. GST
₹428.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
FS50SM-06-VB
₹362.98 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 710pF
- Current - Continuous Drain(Id)
- 150A
- Ciss-Input Capacitance
- 5.196nF
- Pd - Power Dissipation
- 175W
- Reverse Transfer Capacitance (Crss)
- 340pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 340nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 10.4 g
Overview
Applications
- OR operation
- Server
- DC/DC
Key features
- Trench power MOSFET
- Low thermal resistance package
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
