VBsemi ElecDatasheet (PDF)

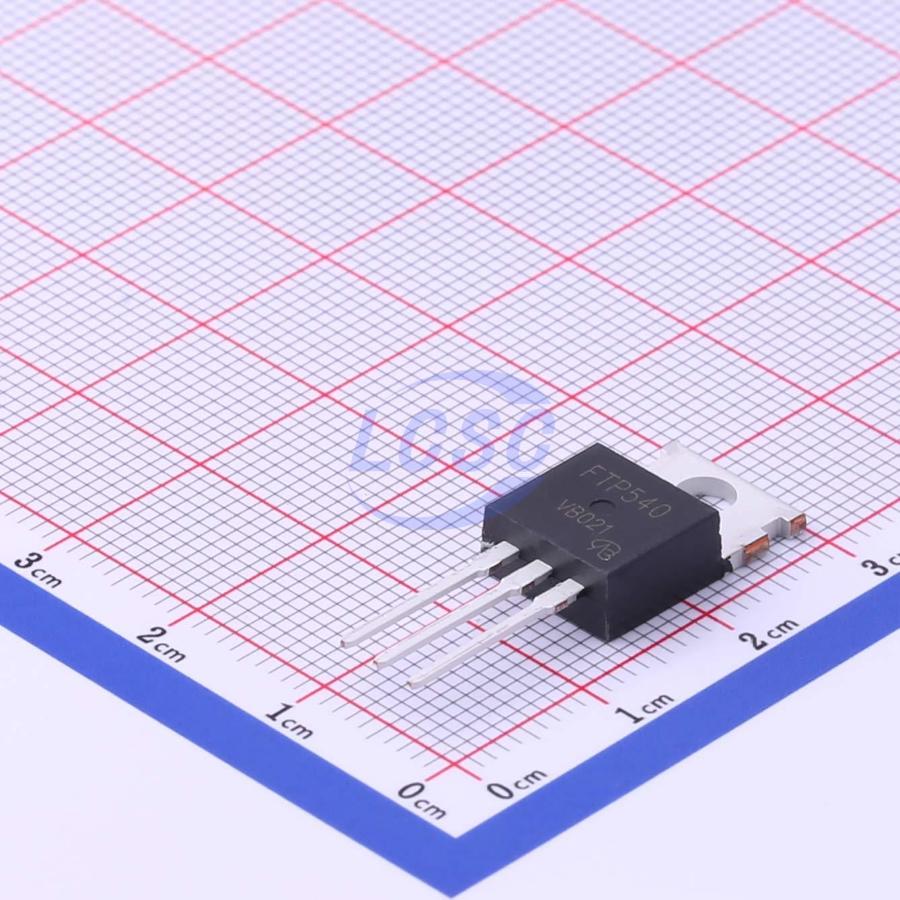

FTP540-VB
N-Channel 100V 55A 127W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 100V 55A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FTP540-VB
- Store part #
- C693167
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49 in stock
#C693167
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.70 | ₹99.70 |
| 10+ | ₹81.06 | ₹810.60 |
| 50+ | ₹71.64 | ₹3,582.00 |
| 100+ | ₹62.42 | ₹6,242.00 |
| 500+ | ₹56.98 | ₹28,490.00 |
| 1,000+ | ₹54.04 | ₹54,040.00 |
1 × ₹99.70
₹99.70
excl. GST
₹117.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FTP540-VB
₹99.70 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 270pF
- Current - Continuous Drain(Id)
- 55A
- Ciss-Input Capacitance
- 4.5nF
- Pd - Power Dissipation
- 127W
- Reverse Transfer Capacitance (Crss)
- 90pF
- RDS(on)
- 36mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.7 g
Overview
Key features
- Trench power MOSFET
- Junction temperature 175°C
- Low thermal resistance package
- RoHS compliant
