DIODESDatasheet (PDF)

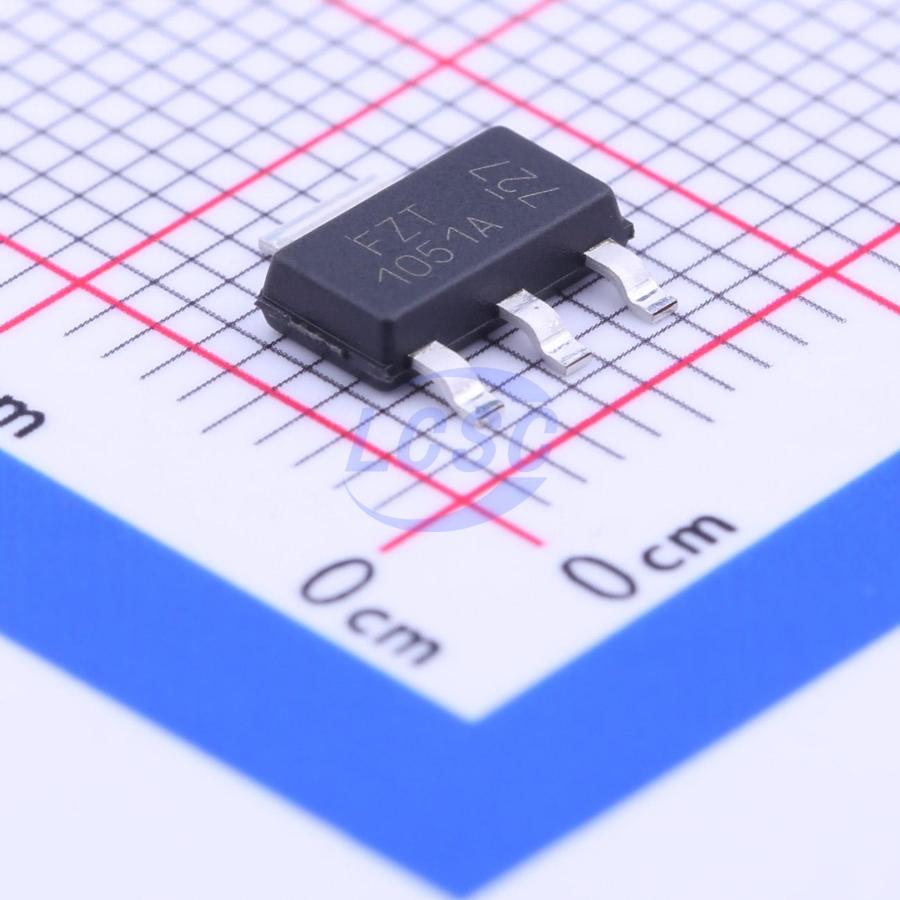

FZT1051ATA
Bipolar (BJT) Transistor NPN 40V 5A 155MHz 3W Surface Mount SOT-223
SOT-223ROHS CompliantActive
TRANS NPN 40V 5A SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- FZT1051ATA
- Store part #
- C156327
- Package / case
- SOT-223
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
669 in stock
#C156327
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹210.75 | ₹210.75 |
| 10+ | ₹176.71 | ₹1,767.10 |
| 30+ | ₹155.47 | ₹4,664.10 |
| 100+ | ₹133.78 | ₹13,378.00 |
| 500+ | ₹123.81 | ₹61,905.00 |
| 1,000+ | ₹119.69 | ₹1,19,690.00 |
1 × ₹210.75
₹210.75
excl. GST
₹248.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
FZT1051ATA
₹210.75 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 500nA
- Transition frequency(fT)
- 155MHz
- Collector - Emitter Voltage VCEO
- 40V
- Emitter-Base Voltage VEBO
- 7V
- DC Current Gain
- 130
- Current - Collector(Ic)
- 5A
- Pd - Power Dissipation
- 3W
- Configuration
- Standalone
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 340mV
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.232 g
Overview
Applications
- Solenoid, relay, and actuator drivers
- DC modules
- Motor controls
Key features
- BVCEO > 40 V
- IC = 5 A High Continuous Collector Current
- ICM = 20 A Peak Pulse Current
- Low Saturation Voltage VCE(sat) < 120 mV @ 1 A
- RSAT = 50 mΩ @ 5 A for a Low Equivalent On-Resistance
- hFE Specified up to 10A for a High Gain Hold-Up
- Complementary PNP Type: FZT1151A
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZXTN19100CGTA#C526801DIODES · SOT-223-3 | DIODES | SOT-223-3 | 10 | ₹107.98 · 10 in stock | View |
 | ZXTN2010GTA#C326515DIODES · SOT-223 | DIODES | SOT-223 | 3 | ₹271.16 · 3 in stock | View |
 | DSS60601MZ4-13#C150451DIODES · SOT-223 | DIODES | SOT-223 | 126 | ₹61.04 · 126 in stock | View |
 | 2STN1550#C377930ST · SOT-223 | ST | SOT-223 | 54,735 | ₹49.40 · 54,735 in stock | View |
 | NSS60601MZ4T3G#C895126onsemi · SOT-223 | onsemi | SOT-223 | 200 | ₹92.91 · 200 in stock | View |
