VBsemi ElecDatasheet (PDF)

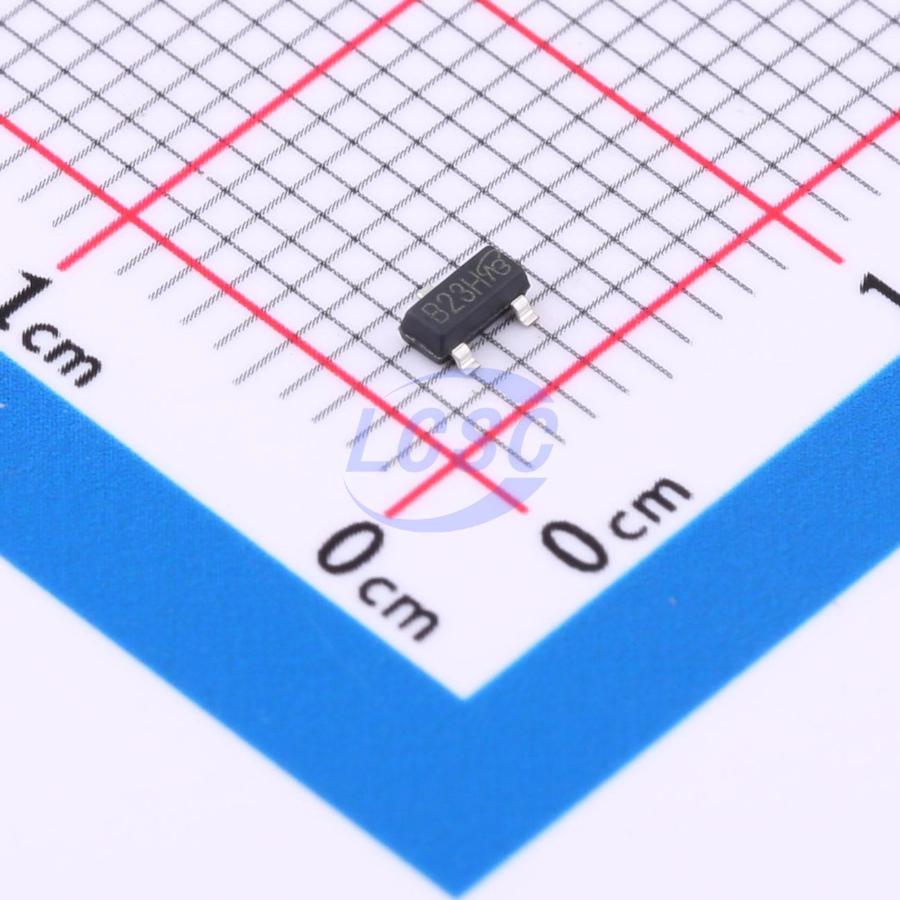

G2305A-VB
P-Channel 30V 5.6A 1.6W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)ROHS CompliantActive
MOSFET P-CH 30V 5.6A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- G2305A-VB
- Store part #
- C7524954
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7524954
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.16 | ₹65.80 |
| 50+ | ₹10.41 | ₹520.50 |
| 150+ | ₹9.02 | ₹1,353.00 |
| 500+ | ₹7.99 | ₹3,995.00 |
| 3,000+ | ₹7.17 | ₹21,510.00 |
| 6,000+ | ₹6.75 | ₹40,500.00 |
5 × ₹13.16
₹65.80
excl. GST
₹77.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
G2305A-VB
₹65.80 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 5.6A
- Ciss-Input Capacitance
- 1.295nF
- Pd - Power Dissipation
- 1.6W
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 46mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 24nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
Applications
- Mobile computing applications
- Load switch
- Notebook adapter switch
- DC/DC converter
Key features
- Trench power MOSFET
- 100% gate resistance (Rg) tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CES2323-VB#C5179511VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹14.91 · 50 in stock | View |
 | GV3407-VB#C5179547VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 335 | ₹12.83 · 335 in stock | View |
 | 2SJ486ZU-TL-E-VB#C5179574VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹13.57 · 50 in stock | View |
 | AP2303GN-VB#C558071VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹15.97 · 50 in stock | View |
 | DMP3099L-7-VB#C558116VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 65 | ₹14.58 · 65 in stock | View |
